Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

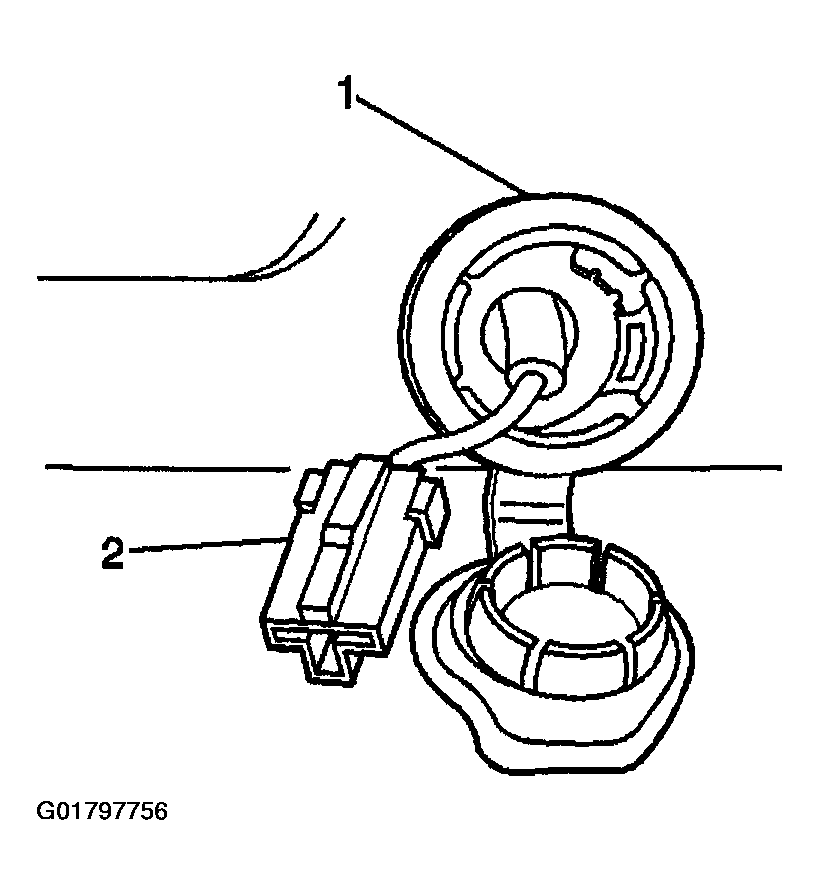

    Fig 1: Installing Power Port Retainer
    G01797756Courtesy of GENERAL MOTORS CORP.
  1. Install the power port retainer (1) to the seat storage tray, by pressing the retainer into the opening in the seat storage tray, until fully seated.
  2. Connect the electrical connector (2) to the power port socket (1).
  3. Align the power port key to the key slot in the retainer ring.

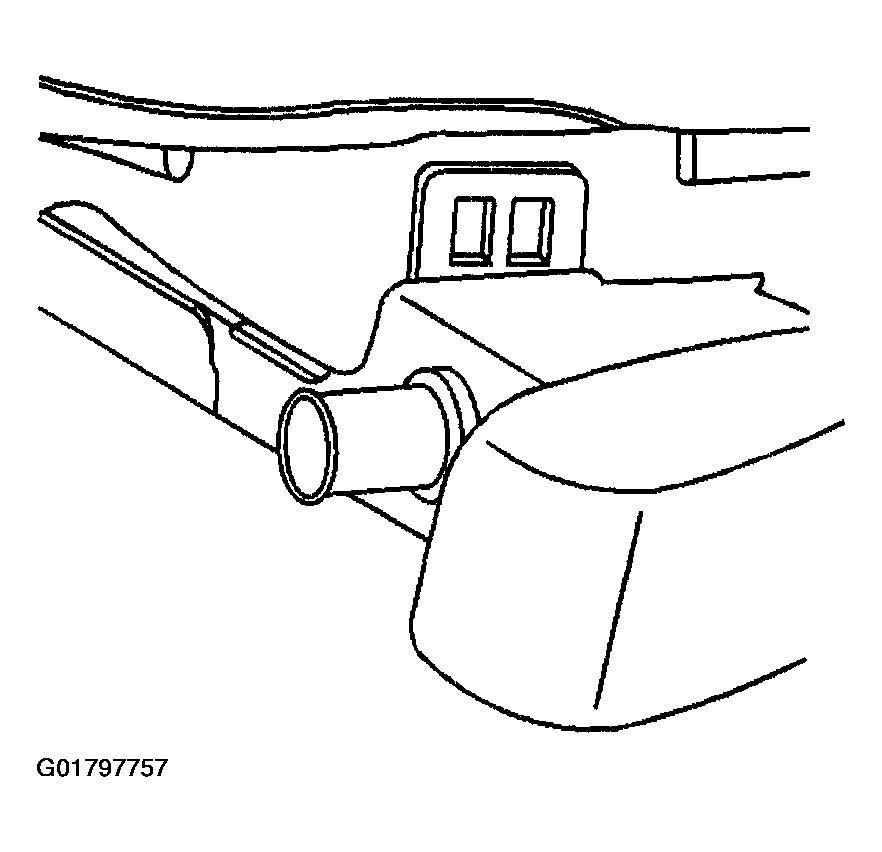

    4. Fig 2: Pressing Power Port Into Seat Storage Tray
    G01797757Courtesy of GENERAL MOTORS CORP.
  4. Press the power port into the seat storage tray until the power port socket is fully seated.
  5. Install the power port fuse.
