Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

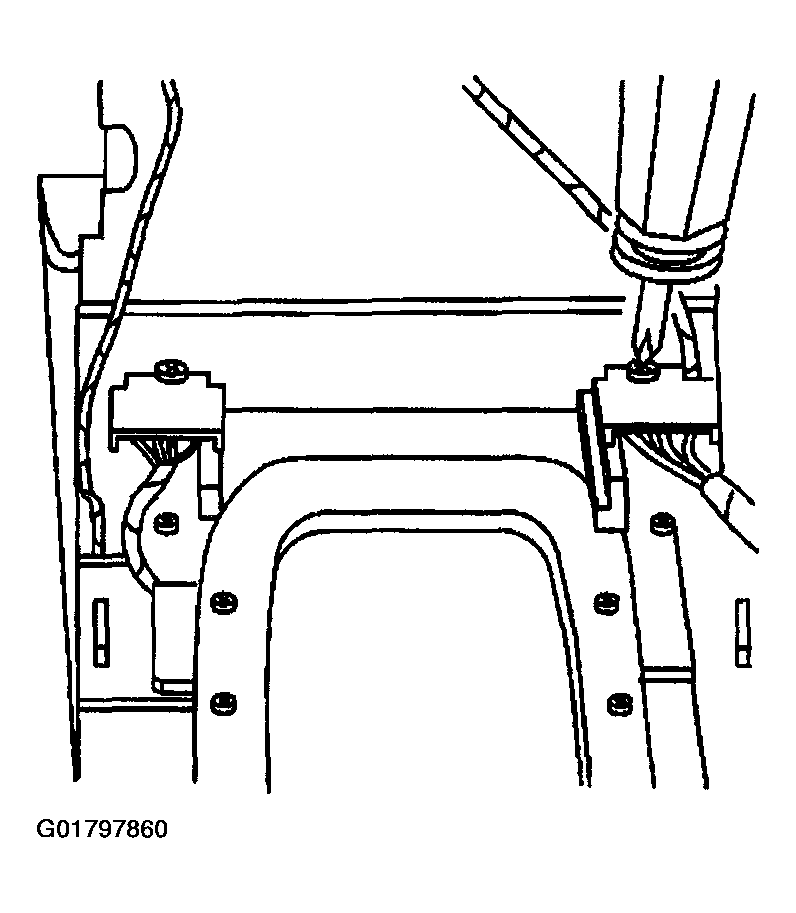

Fig 1: Heated Seat Switches

Courtesy of GENERAL MOTORS CORP.

Install the heated seat switches to the trim plate.
NOTE: Refer to FASTENER NOTICE .
Install the heated seat switch fasteners.
Tighten

Tighten the fasteners fully driven, seated, but not stripped.
Install the center console trim plate (1). Refer to TRIM PLATE REPLACEMENT - CONSOLE .

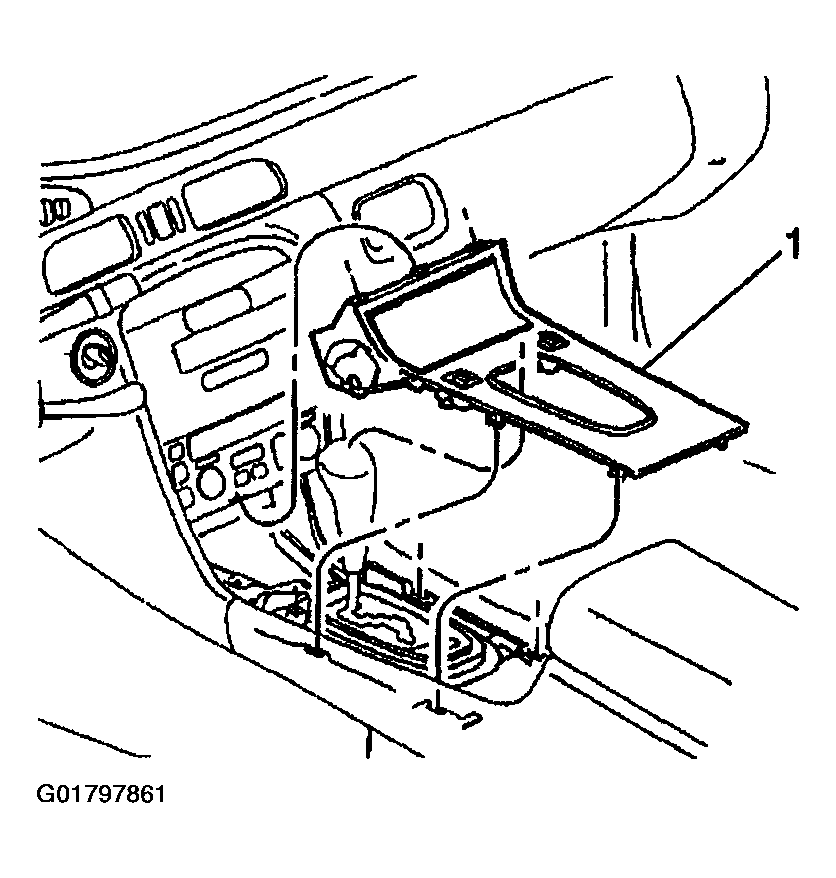

Fig 2: Center Console Trim Plate
Courtesy of GENERAL MOTORS CORP.
