Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install electrical connector (1).
  2. Align fuel/rear compartment switch (2) to IP and push firmly into IP retainer.
  3. Install left IP end cap. Refer to INSTRUMENT PANEL (I/P) OUTER TRIM COVER REPLACEMENT .

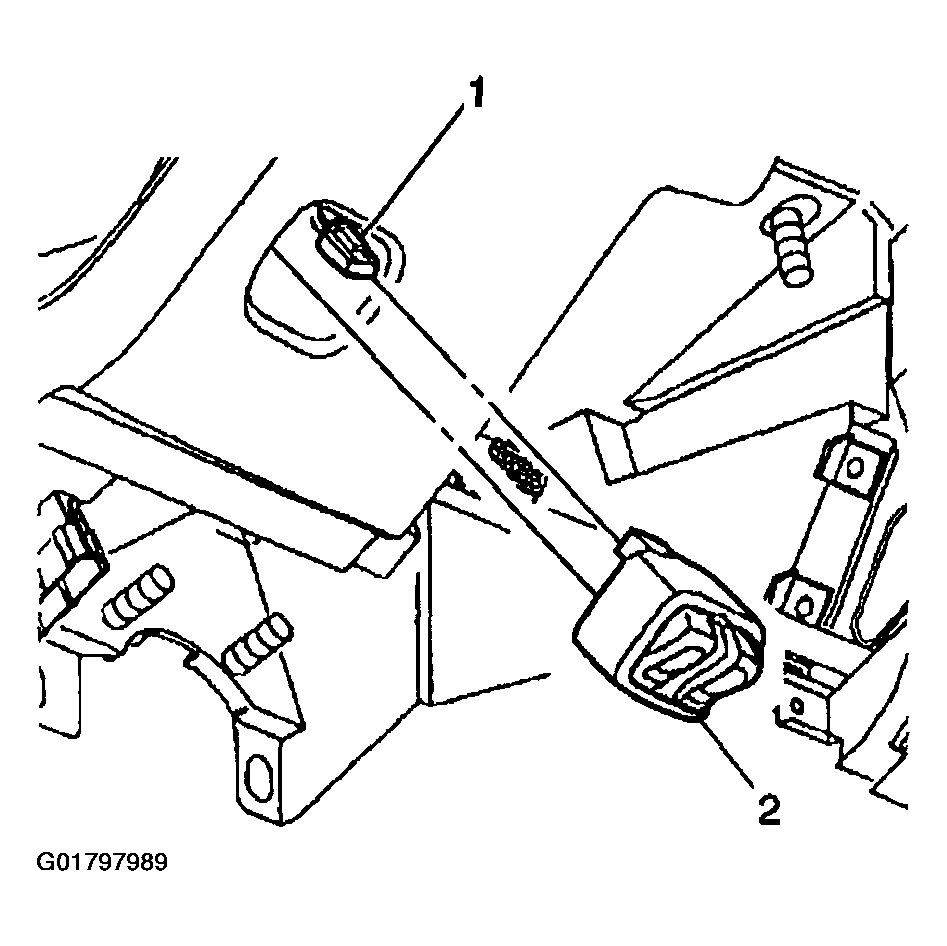

    Fig 1: Installing Fuel/Rear Compartment Switch
    G01797989Courtesy of GENERAL MOTORS CORP.
