Body Rear End Component Views

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

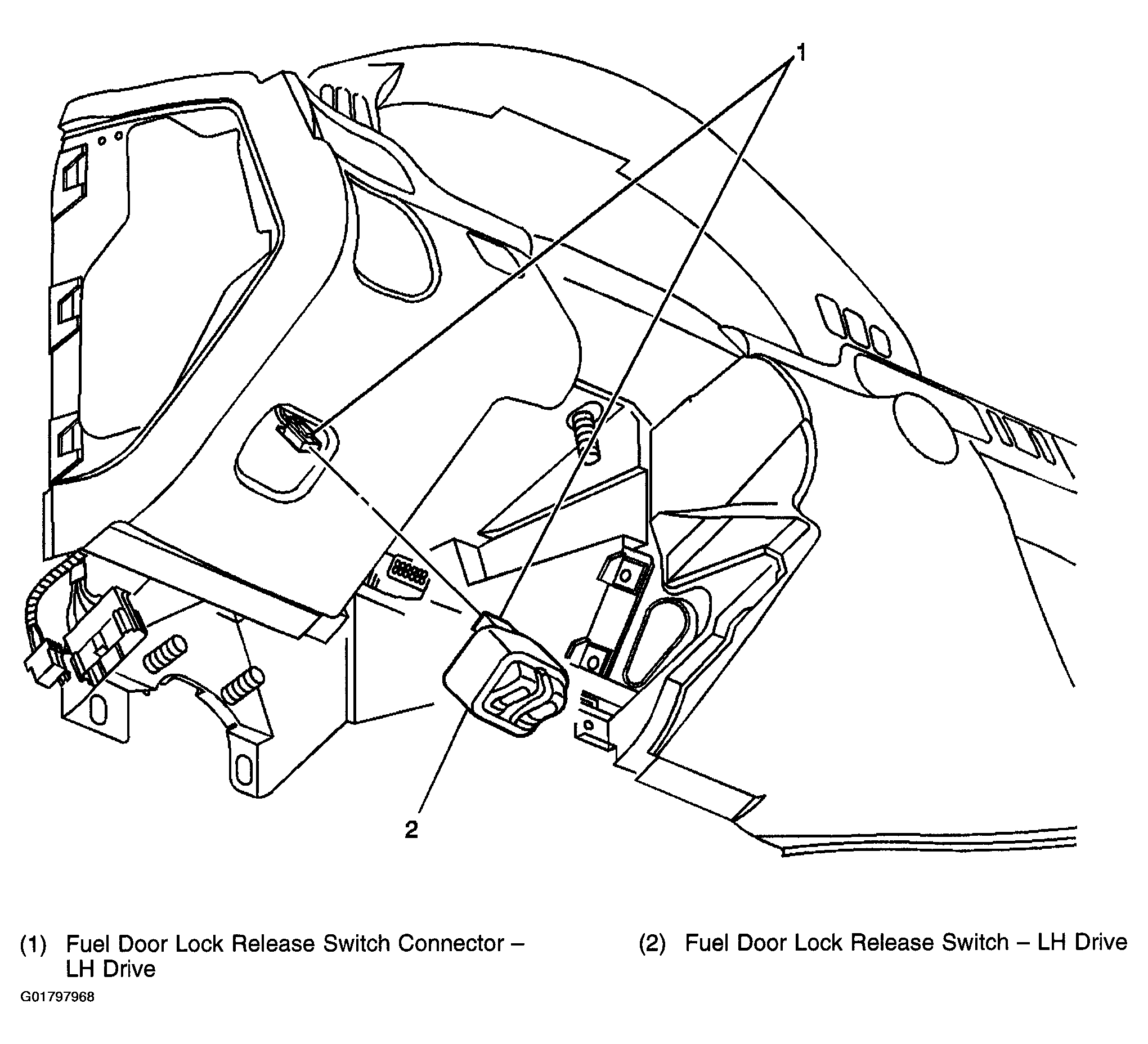

Fig 1: Left Side Under the Instrument Panel

Courtesy of GENERAL MOTORS CORP.

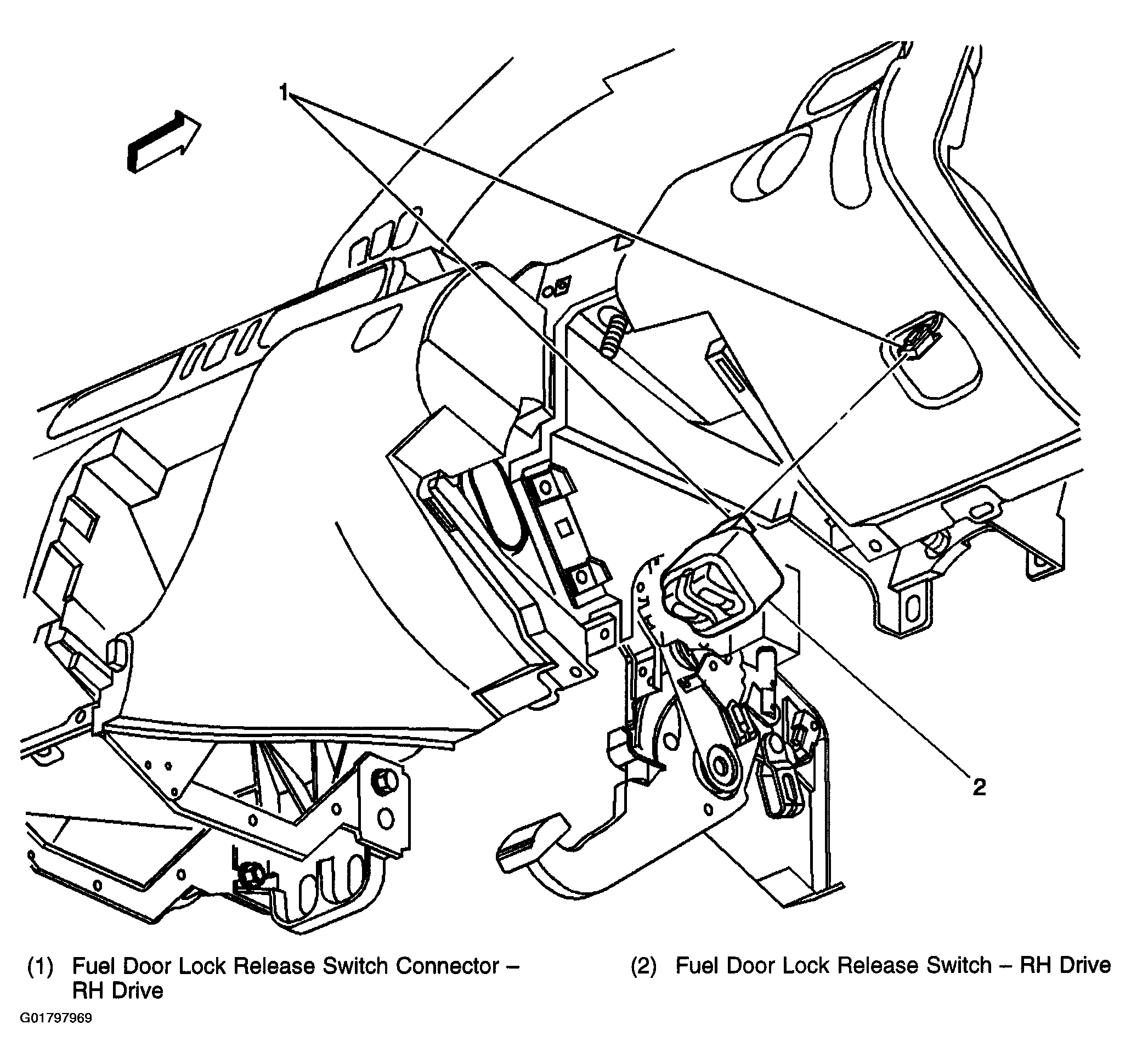

Fig 2: Right Side Under the Instrument Panel

Courtesy of GENERAL MOTORS CORP.

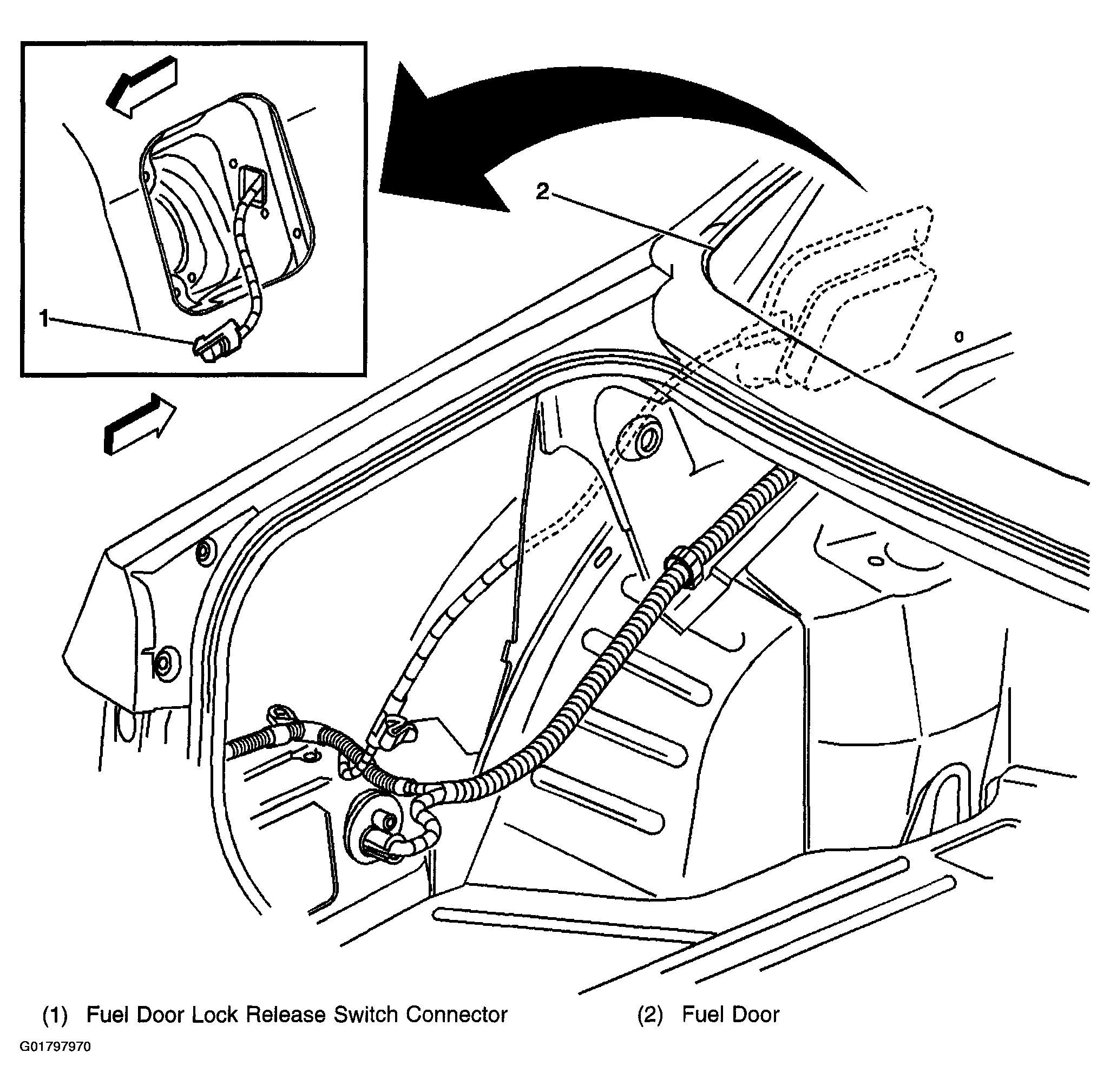

Fig 3: Rear Compartment, Left

Courtesy of GENERAL MOTORS CORP.

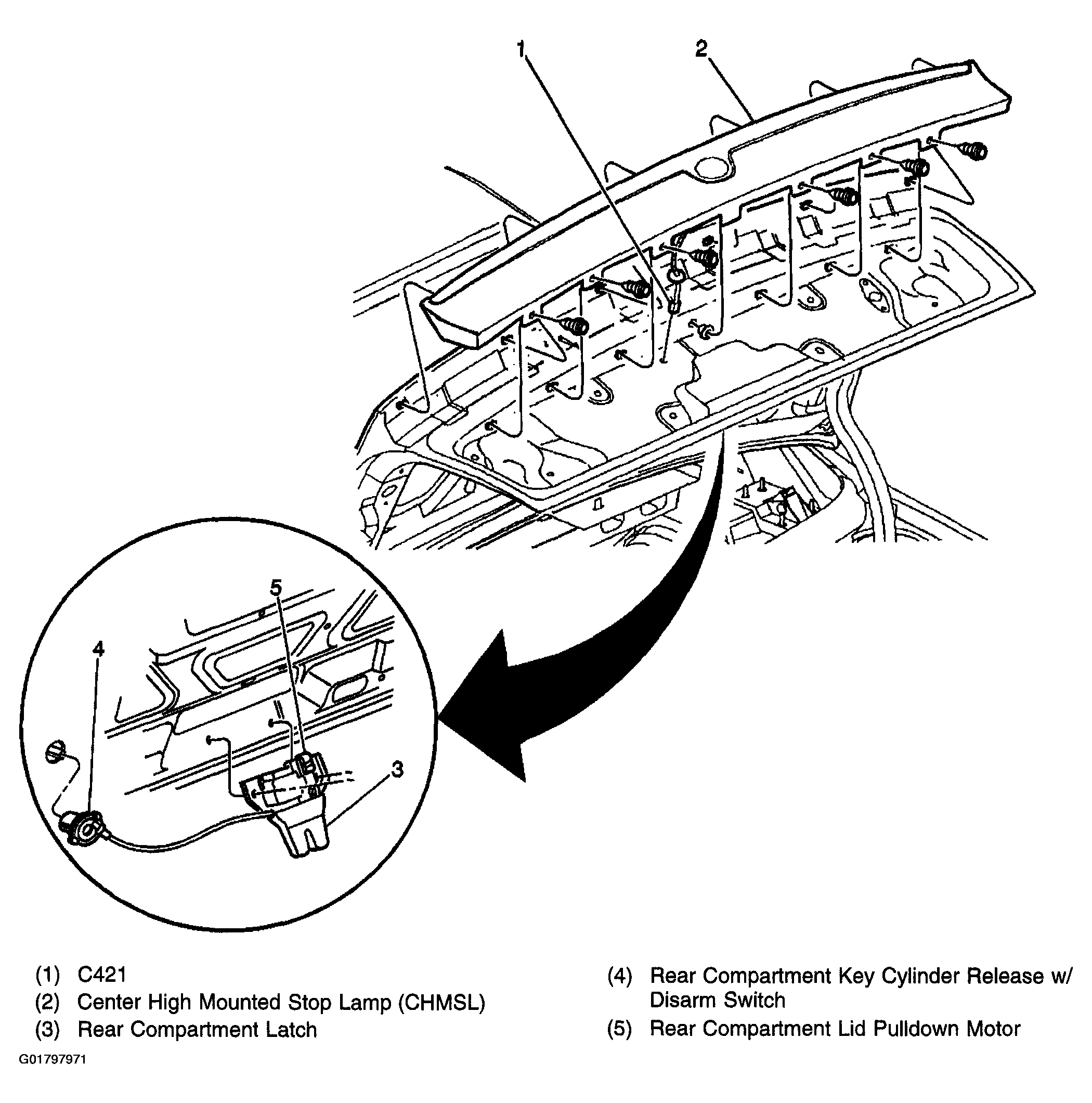

Fig 4: Rear Compartment, Rear Compartment Lid

Courtesy of GENERAL MOTORS CORP.
