Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood latch. Refer to Hood Latch Replacement .
  3. Disconnect the ambient outside air temperature sensor electrical connector.
  4. Remove the lower bolts (1) retaining the hood latch support (2) to the vehicle.
    Fig 1: Removing Lower Bolts Retaining Hood Latch Support To Vehicle
    G01796614Courtesy of GENERAL MOTORS CORP.
  5. Remove the upper bolts (1) retaining the hood latch support (2) to the vehicle.

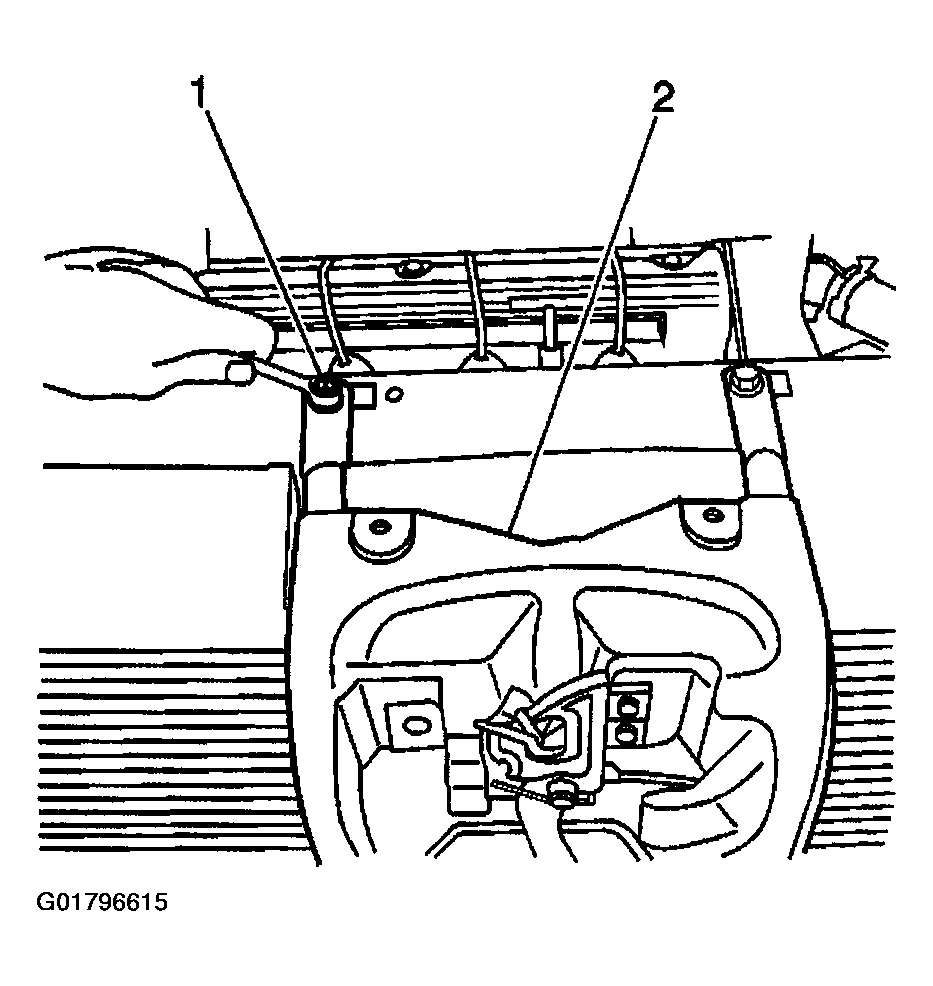

    Fig 2: Removing Hood Latch Support
    G01796615Courtesy of GENERAL MOTORS CORP.
  6. Remove the hood latch support (2) from the vehicle.
