Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the push in retainers (3) securing the hood insulator (2) to the hood (1).

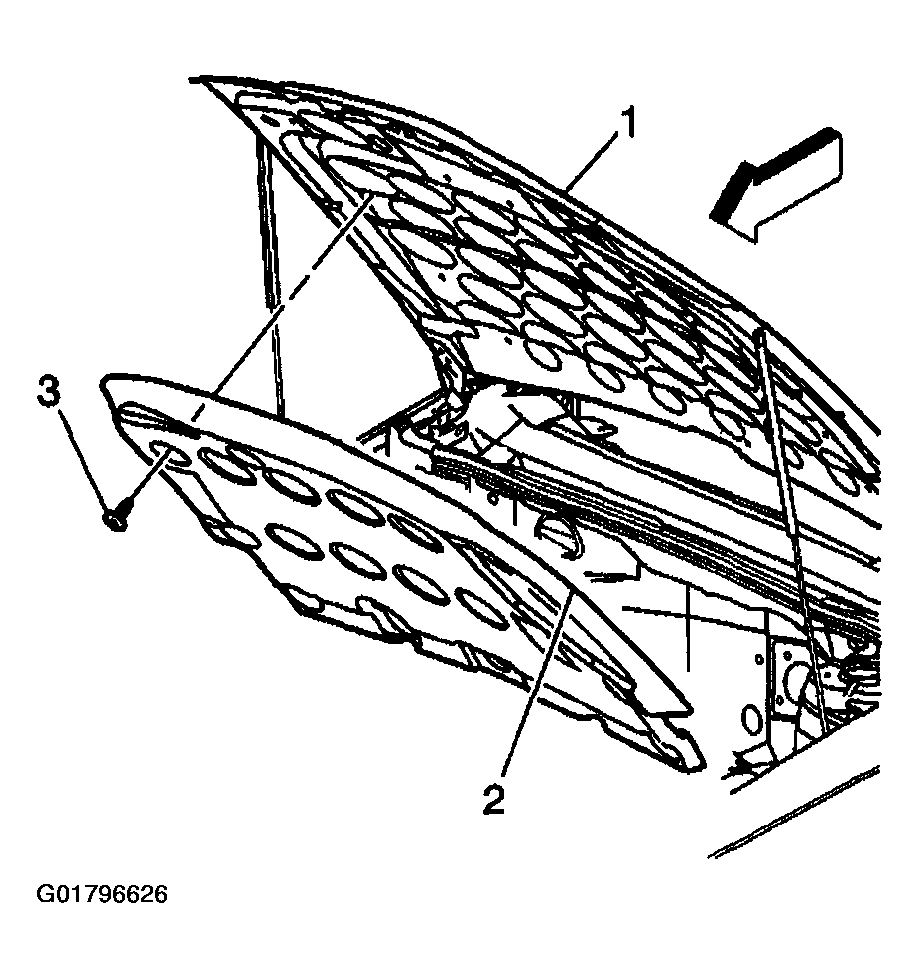

    Fig 1: Removing Hood Insulator
    G01796626Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood insulator (2) from the hood (1).
