Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower hood hinge (3) to the body.

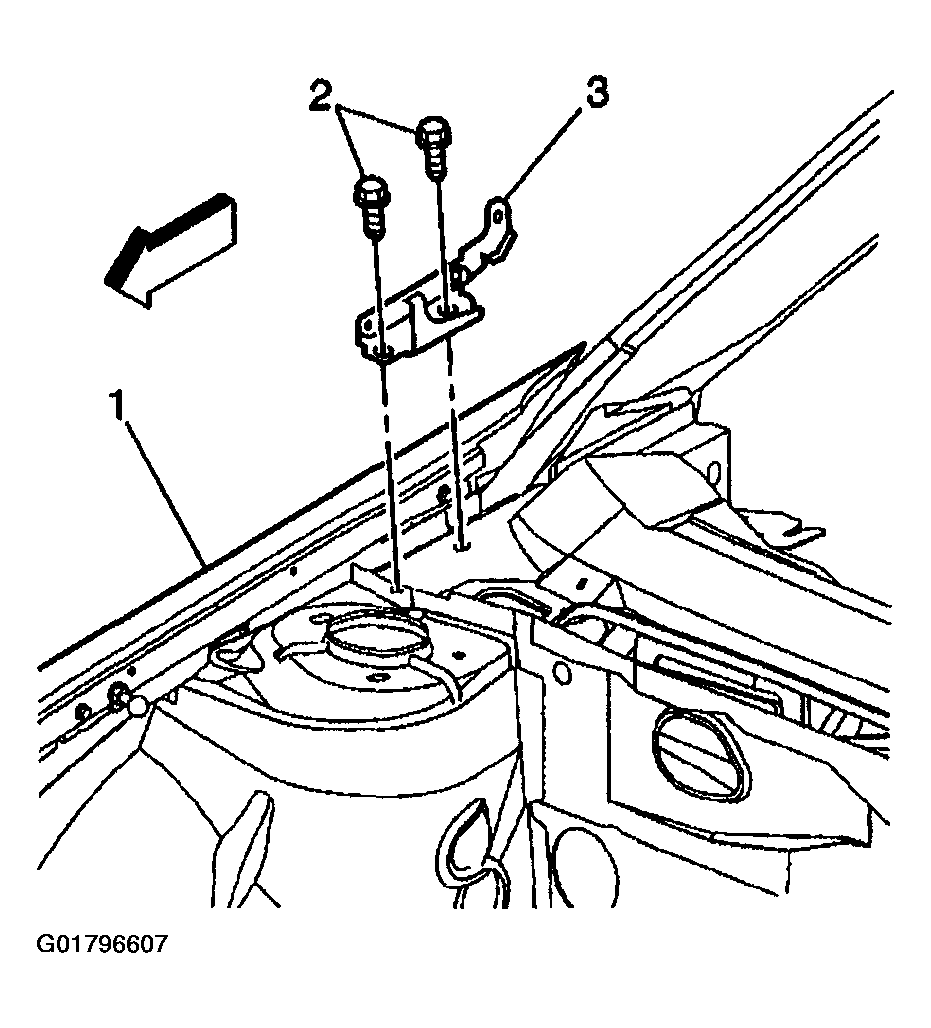

    Fig 1: Installing Lower Hood Hinge To Body
    G01796607Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fasteners (2) in order to secure the lower hood hinge (3) to the body.

    Tighten

    Tighten the fasteners (2) to 24 N.m (18 lb ft).

  3. Install the upper hood hinge (3) to the hood (1).

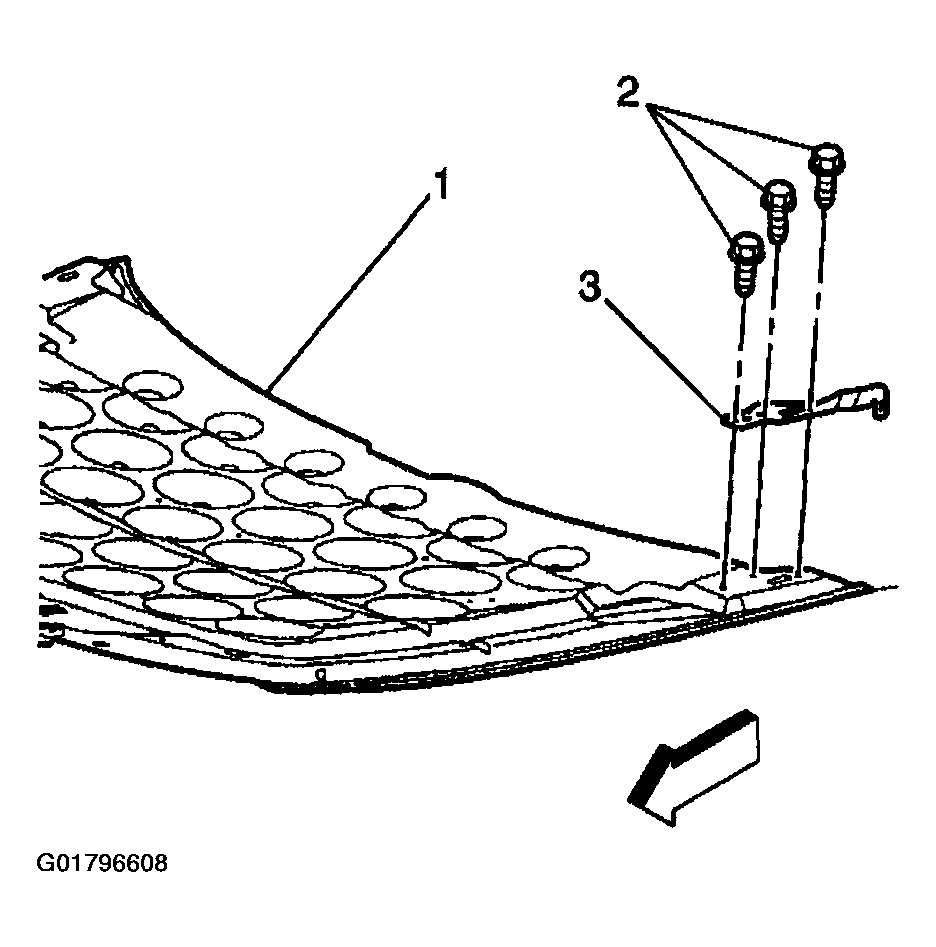

    Fig 2: Installing Upper Hood Hinge To Hood
    G01796608Courtesy of GENERAL MOTORS CORP.
  4. Install the fasteners (2) in order to secure the upper hood hinge (3) to the hood (1).

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  5. Install the hood to the vehicle. Refer to Hood Replacement .
  6. Close the hood.
