Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear center hood bumper (2) to the vehicle.

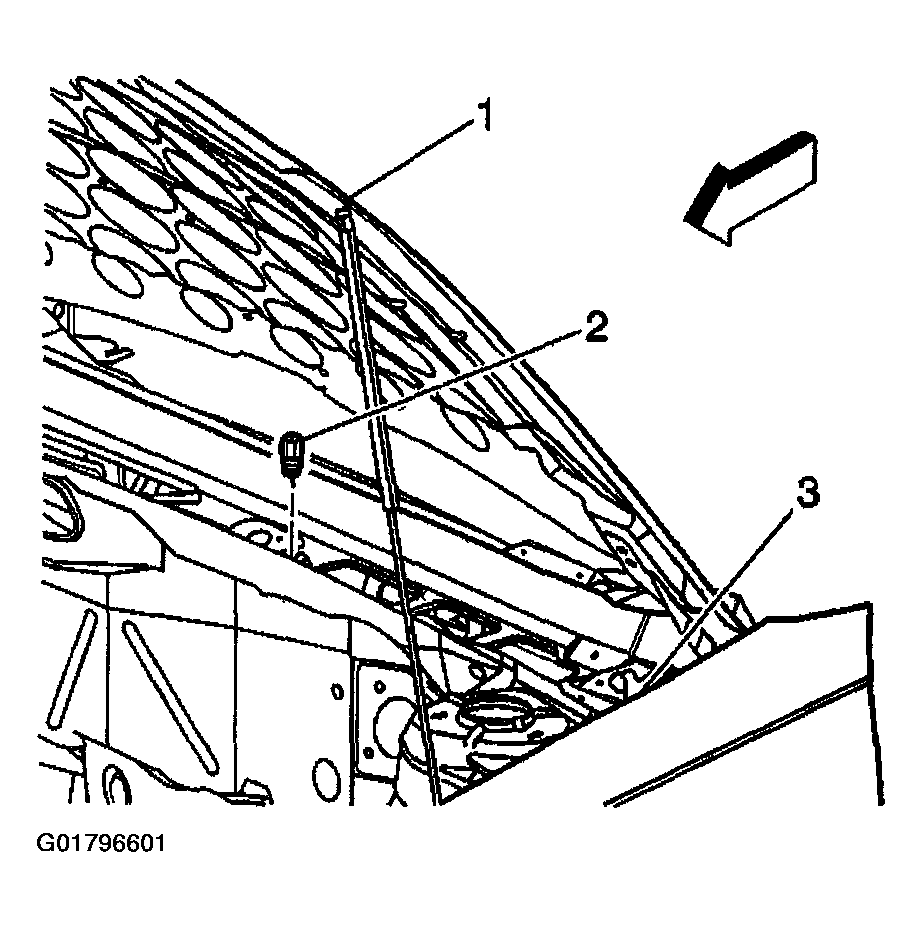

    Fig 1: Installing Rear Center Hood Bumper
    G01796601Courtesy of GENERAL MOTORS CORP.
  2. Install the front hood bumpers (1) to the vehicle.

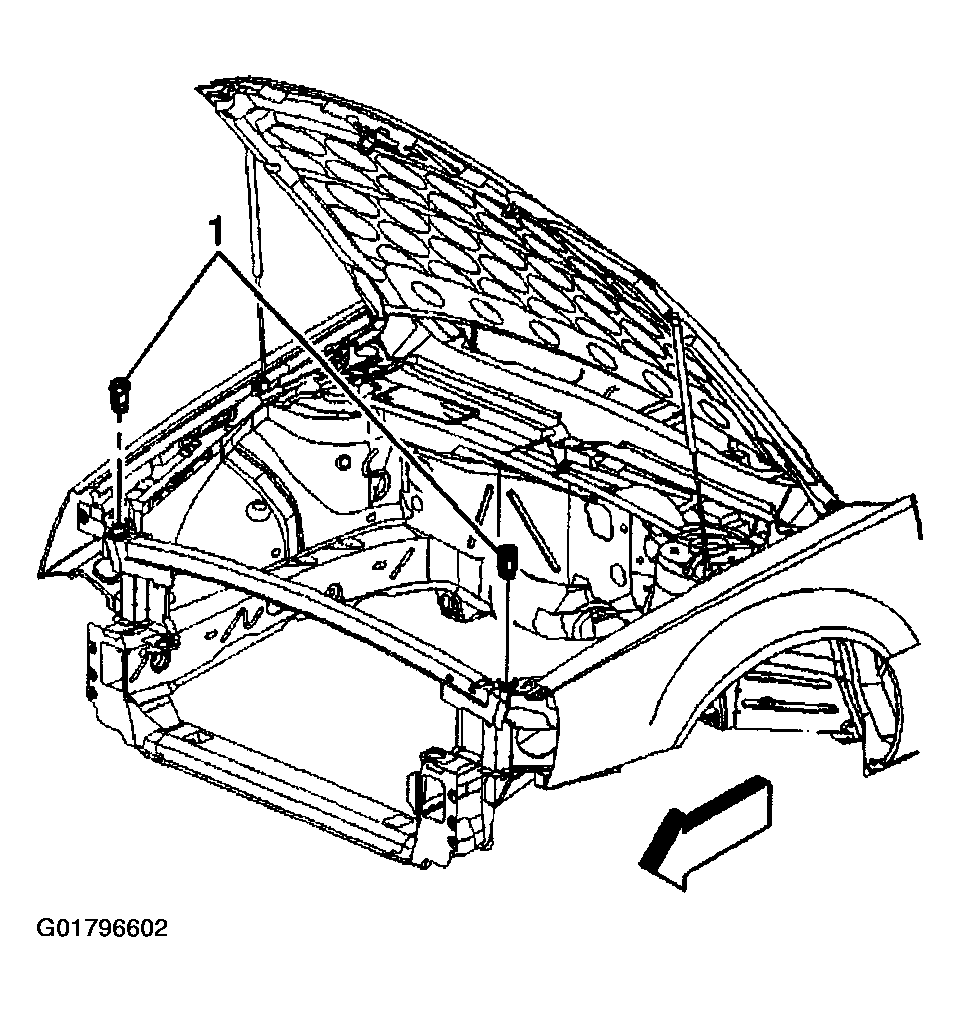

    Fig 2: Installing Front Hood Bumpers
    G01796602Courtesy of GENERAL MOTORS CORP.
  3. Adjust the front hood bumpers (1) so that the hood is flush with the fenders.
  4. After adjustment is performed, sufficient load must remain on the front and rear hood bumpers to eliminate hood flutter. This can be achieved by lowering the hood latch an additional 1/8 inch, for front flutter and raising the rear bumper for rear flutter.
  5. Install the upper filler panel to the vehicle. Refer to Filler Panel Replacement - Upper .
