Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front .
  2. Remove the push in retainers (3) from the front fender sound insulator (2) to the vehicle.

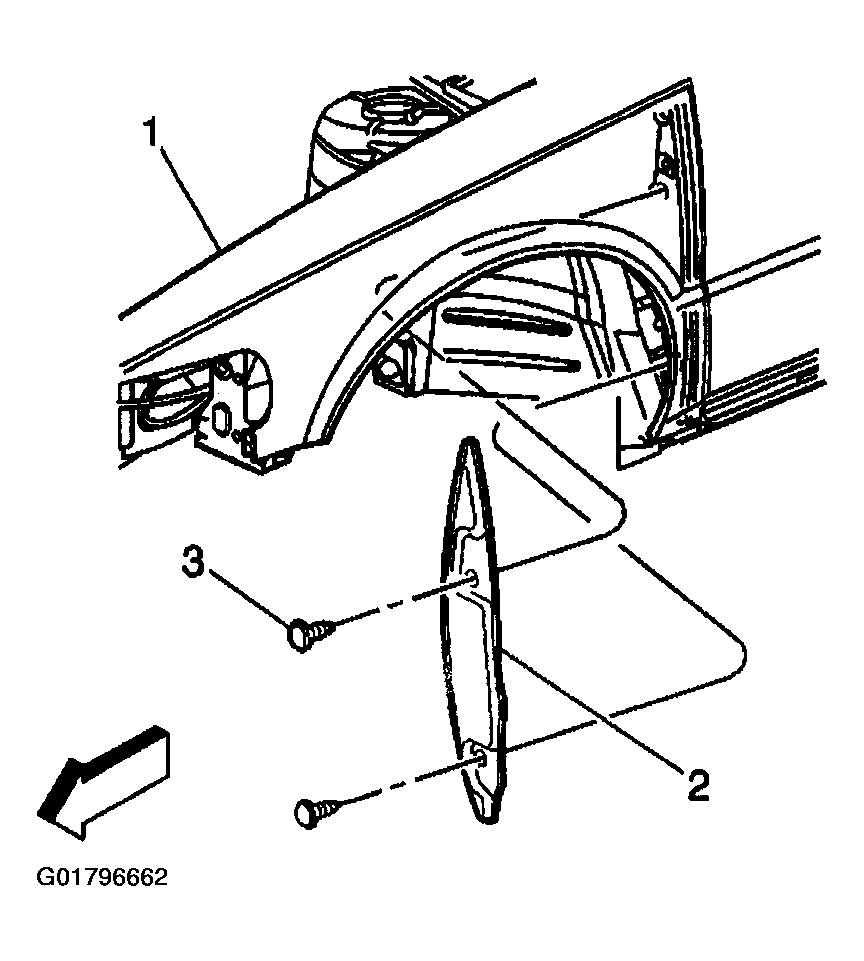

    Fig 1: Removing Front Fender Sound Insulator
    G01796662Courtesy of GENERAL MOTORS CORP.
  3. Remove the front fender sound insulator (2).
