Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender sound insulator (2) to the vehicle.

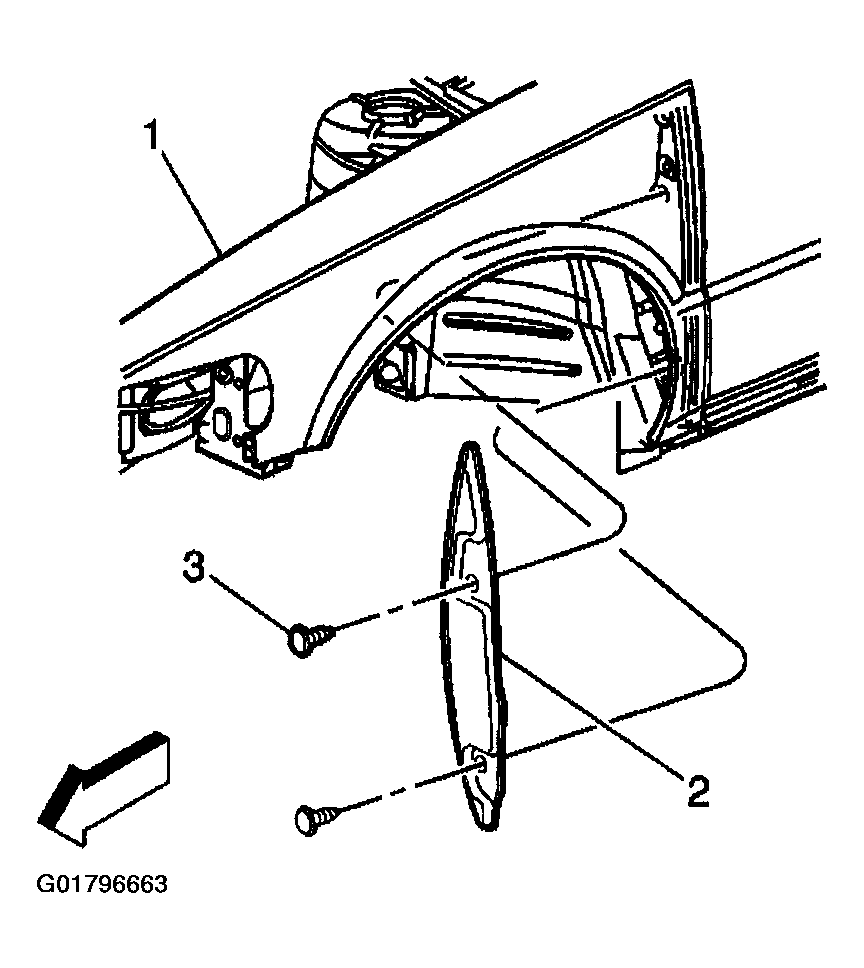

    Fig 1: Installing Front Fender Sound Insulator
    G01796663Courtesy of GENERAL MOTORS CORP.
  2. Install the push- in retainers (3) to secure the front fender sound insulator (2).
  3. Install the front wheelhouse panel. Refer to Wheelhouse Liner Replacement - Front .
