Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
  2. Pull out the accessary switch housing.
  3. Disconnect the electrical connectors.
  4. Remove the headlamp leveling switch from the accessary switch housing.

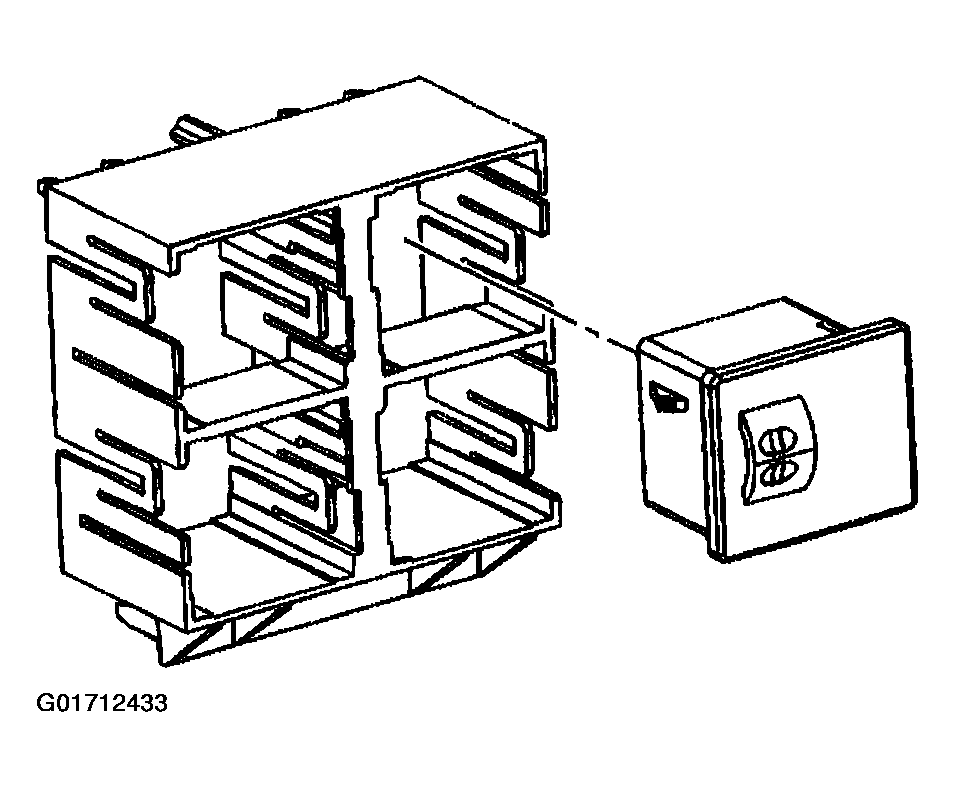

    Fig 1: Headlamp Leveling Switch
    G01712433Courtesy of GENERAL MOTORS CORP.
