Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new wheel stud. See Fig 1.
  2. Using washers and a wheel nut, pull the wheel stud in position.
  3. Install the brake rotor. Refer to REAR BRAKE ROTOR .
  4. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in TIRES AND WHEELS article.
  5. Lower the vehicle.

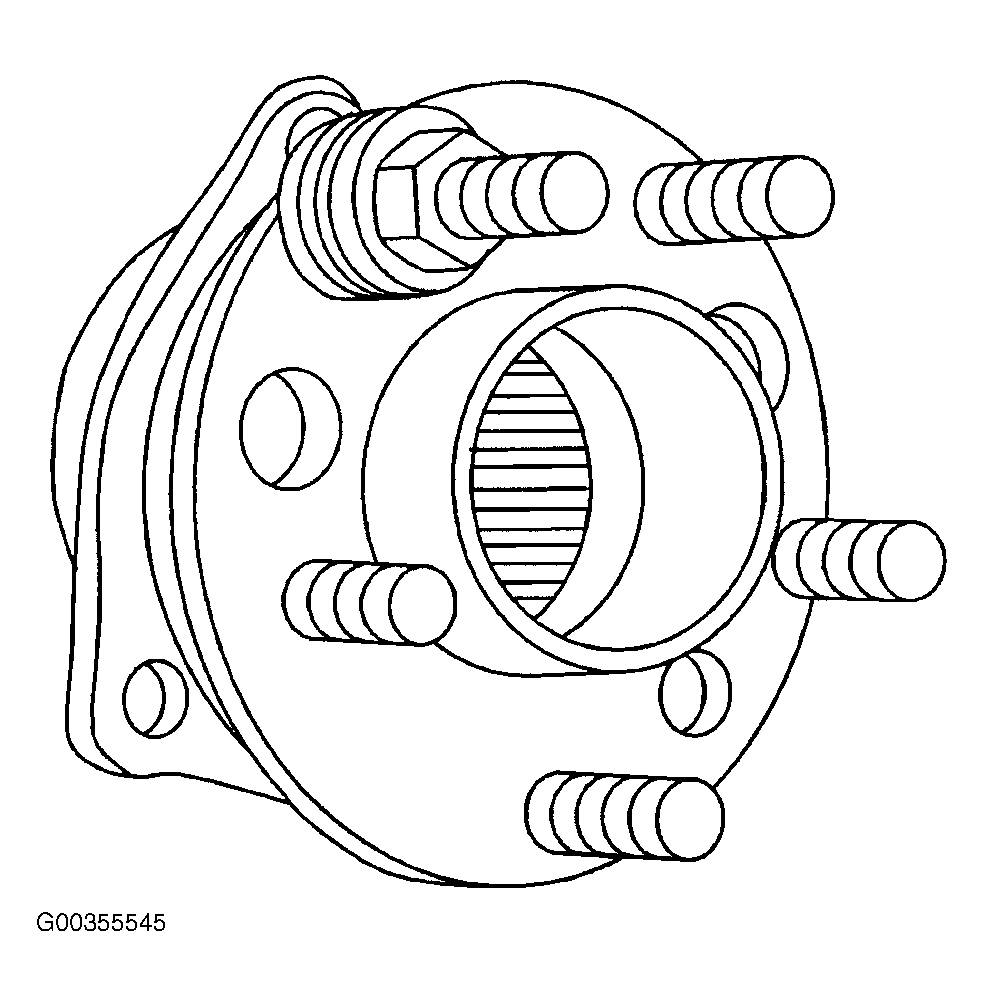

Fig 1: Installing Wheel Stud
G00355545Courtesy of GENERAL MOTORS CORP.
