Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

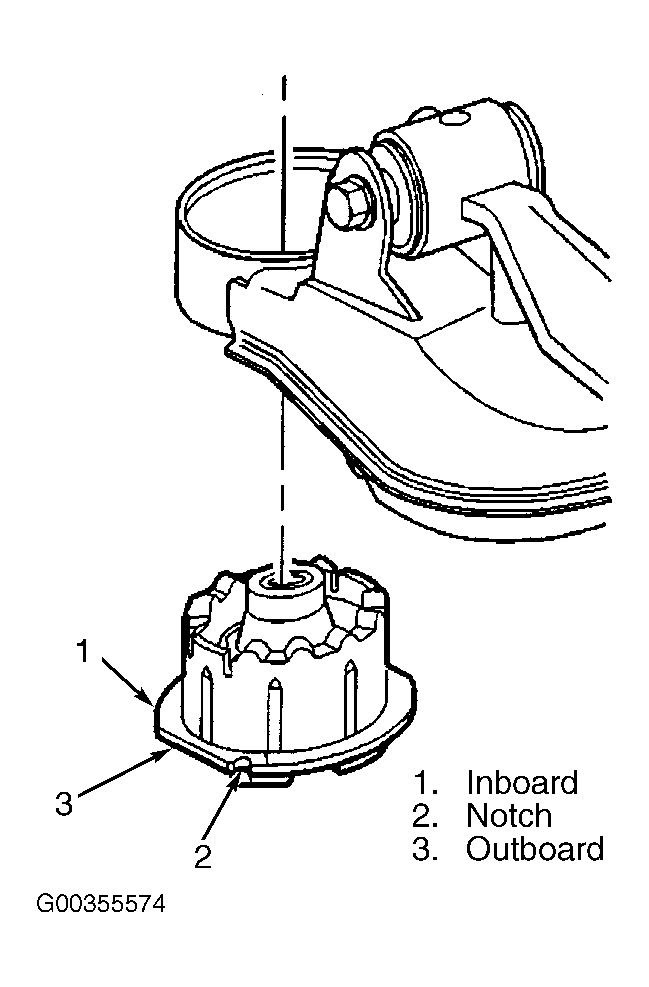

  1. Tap the mount into the support assembly ensuring the flat is outboard (3) and the notch (2) is rearward upon the installation. See Figure.
  2. Bend the tabs outboard with a large pair of pliers, Tabs should be fully seated against chamber in support assembly retainer ring.
  3. Raise the support assembly to the body of the vehicle.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Install the rear support front bolts and support bracket. See Figure. Tighten the rear support bolts to 191 N.m (141 lb ft).
  5. Install the rear support bracket retaining bolts. Tighten the rear support bracket retaining bolts to 86 N.m (63 lb ft).
  6. Install the exhaust system. Refer to EXHAUST SYSTEM REPLACEMENT in ENGINE EXHAUST article.
  7. Install the wheels and tires. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in TIRES AND WHEELS article.
  8. Lower the vehicle.
