HVAC Control Module: Removal
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

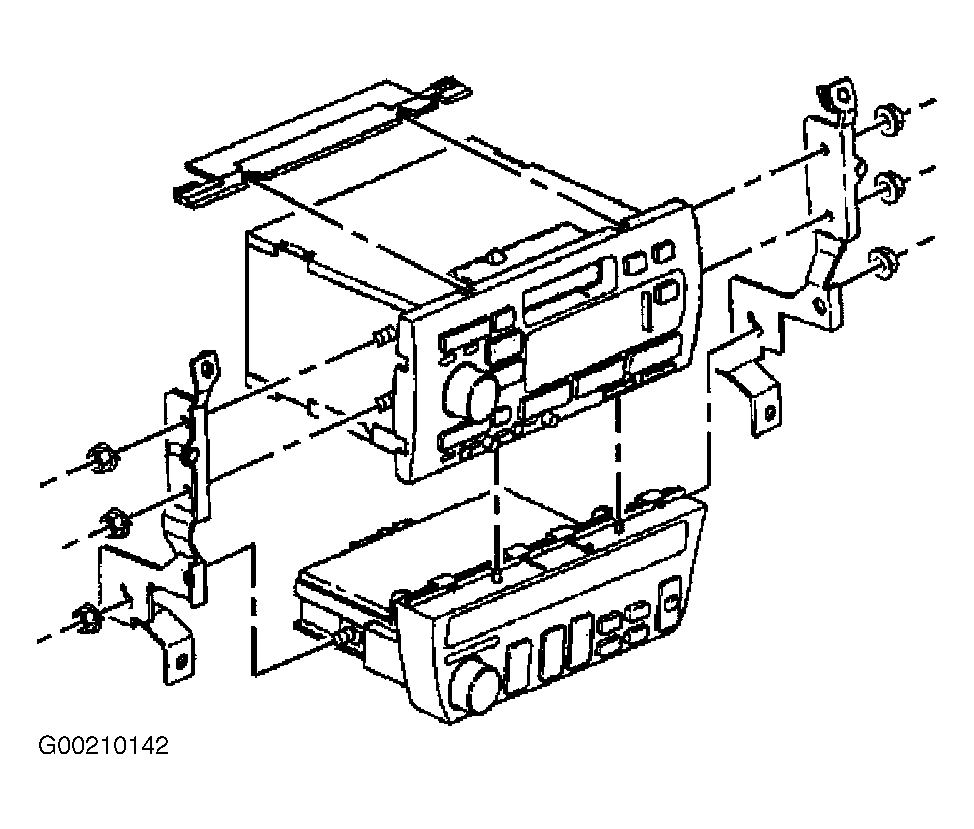

Remove the radio and HVAC control module assembly. Remove nuts from bracket that connects radio and HVAC control module. Remove the HVAC control module. See Figure.
