Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) compartment. Refer to COMPARTMENT REPLACEMENT -- IP .
  2. Reach behind the IP compartment support panel and depress the retaining tabs on the IP compartment lamp switch to release.
  3. Press the lamp switch through the switch opening toward the rear of the vehicle.
  4. Disconnect the electrical connector from the IP compartment lamp switch.

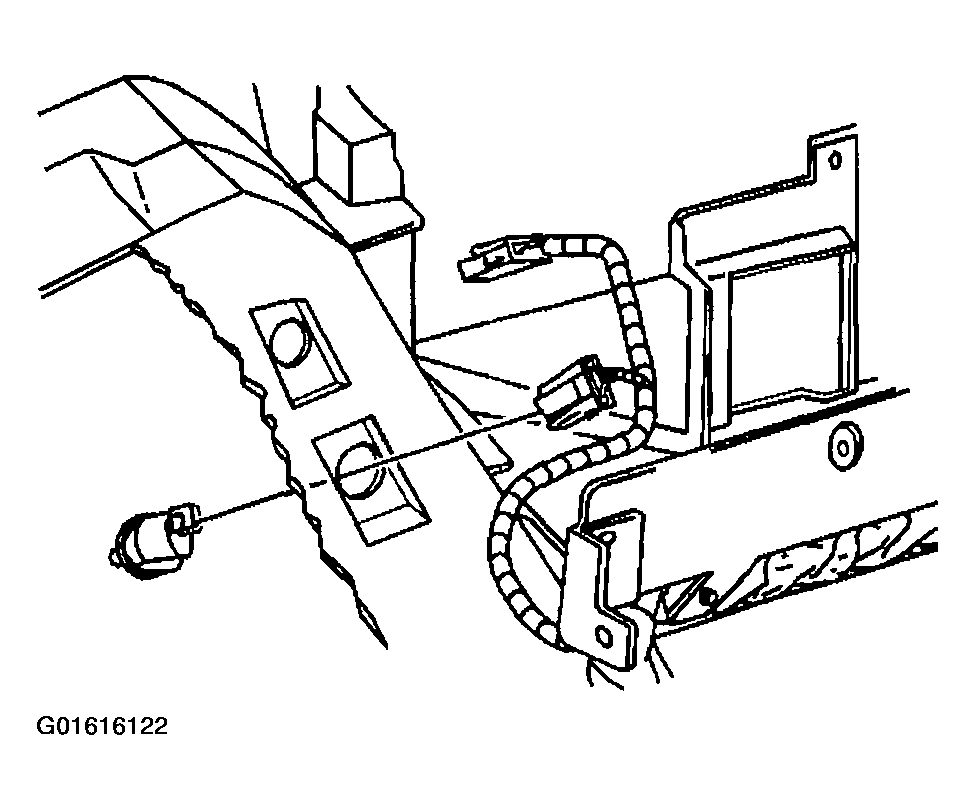

    Fig 1: Disconnecting I/P Compartment Switch Electrical Connector
    G01616122Courtesy of GENERAL MOTORS CORP.
