Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the IP compartment lamp socket.
  2. Install the fuse block access panel.
  3. Close the IP compartment door.

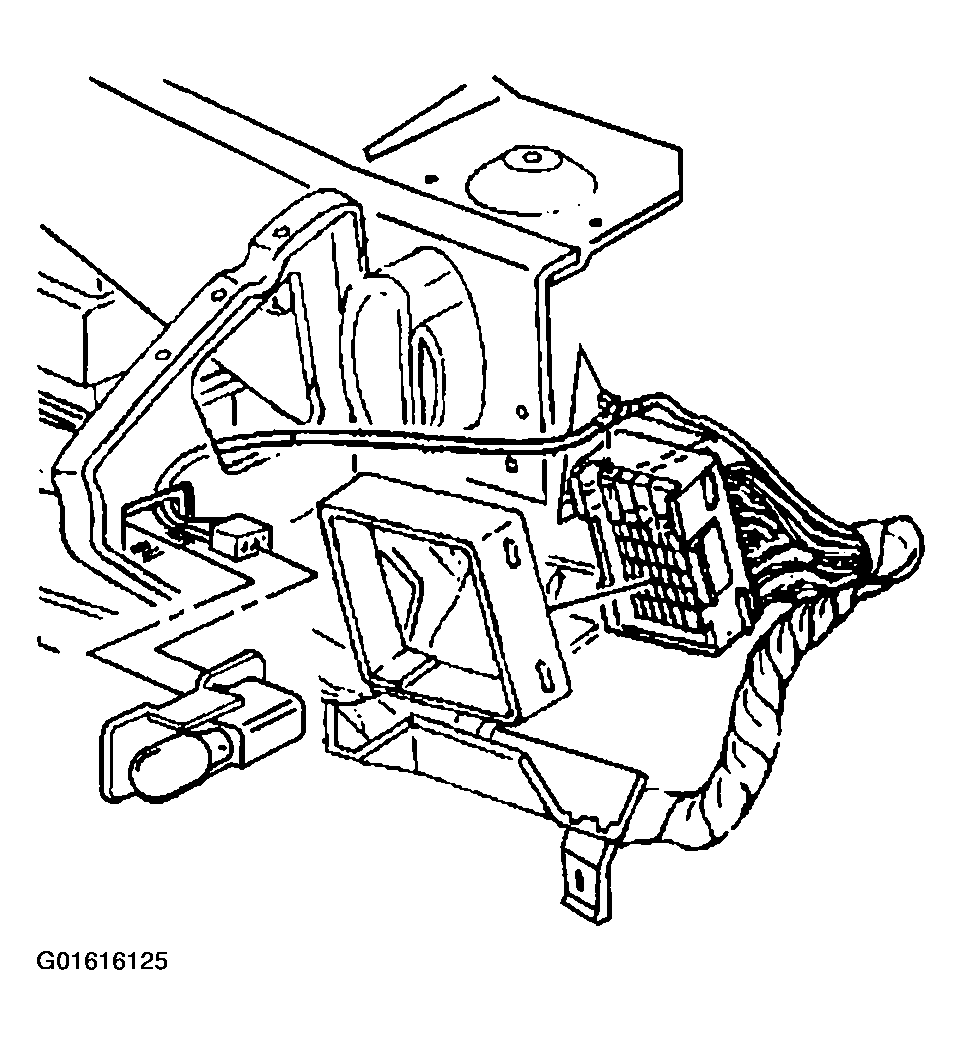

    Fig 1: Fuse Block & I/P Compartment Lamp Bulb
    G01616125Courtesy of GENERAL MOTORS CORP.
