Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna mounting bracket to the antenna.
  2. Install the fasteners in order to retain the mounting bracket.
  3. Apply a soap and water solution to the inside of the spacer (1).
  4. Insert the top of the antenna up through the spacer.

    Push to secure.

  5. Align the lower leg of the antenna bracket to the hole in the inner quarter.
    NOTE: Refer to FASTENER NOTICE .
  6. Install the antenna lower fastener (3).

    Tighten

    Tighten the fastener to 9 N.m (80 lb in).

  7. Align the ground strap (4) to the upper bracket.

    Install the ground strap fastener (5).

    Tighten

    Tighten the fastener to 6 N.m (53 lb in).

  8. Install the antenna drain hose (2) to the hole in the floor pan.
  9. Connect the antenna coaxial cable.
  10. Connect the electrical connectors.
  11. Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .

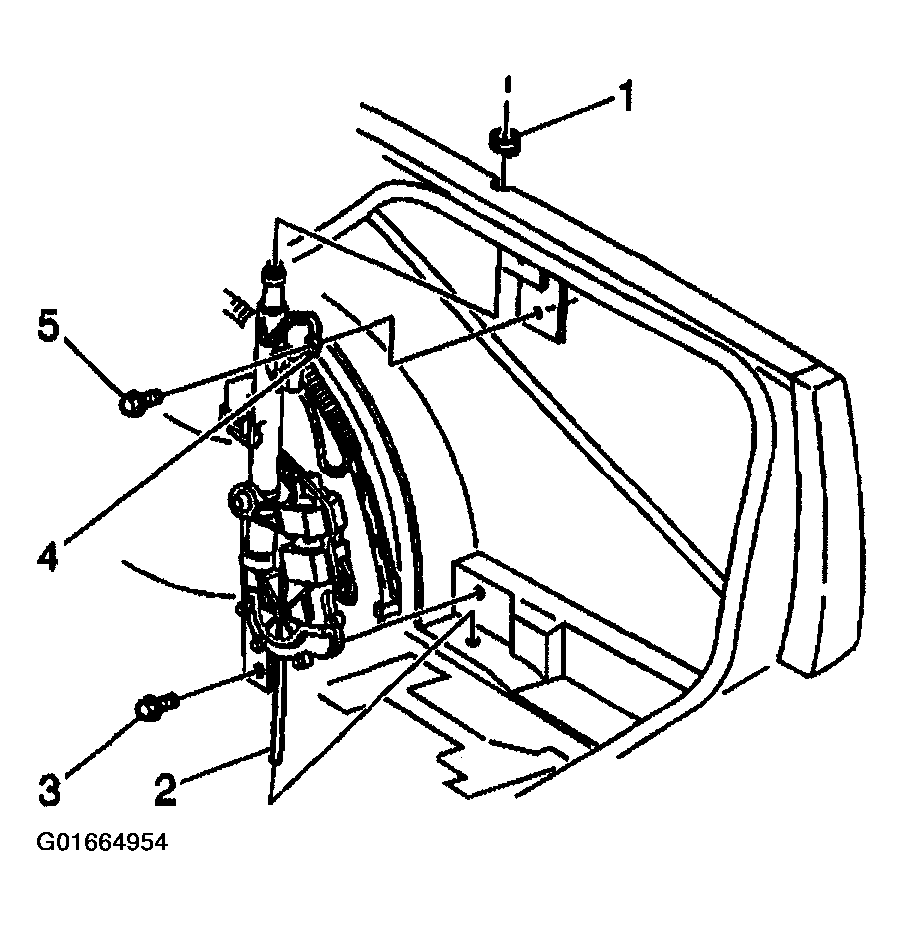

    Fig 1: Identifying Spacer, Antenna Drain Hose, Lower Fastener, & Ground Strap Fastener
    G01664954Courtesy of GENERAL MOTORS CORP.
