Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back in order to access the amplifier. Refer to SEAT BACK REPLACEMENT - REAR .
  2. Release the retainers (3) holding the amplifier (2) to the electrical component mounting bracket (4).
  3. Disconnect the electrical connectors (5) from the amplifier (2).
  4. Remove the amplifier.

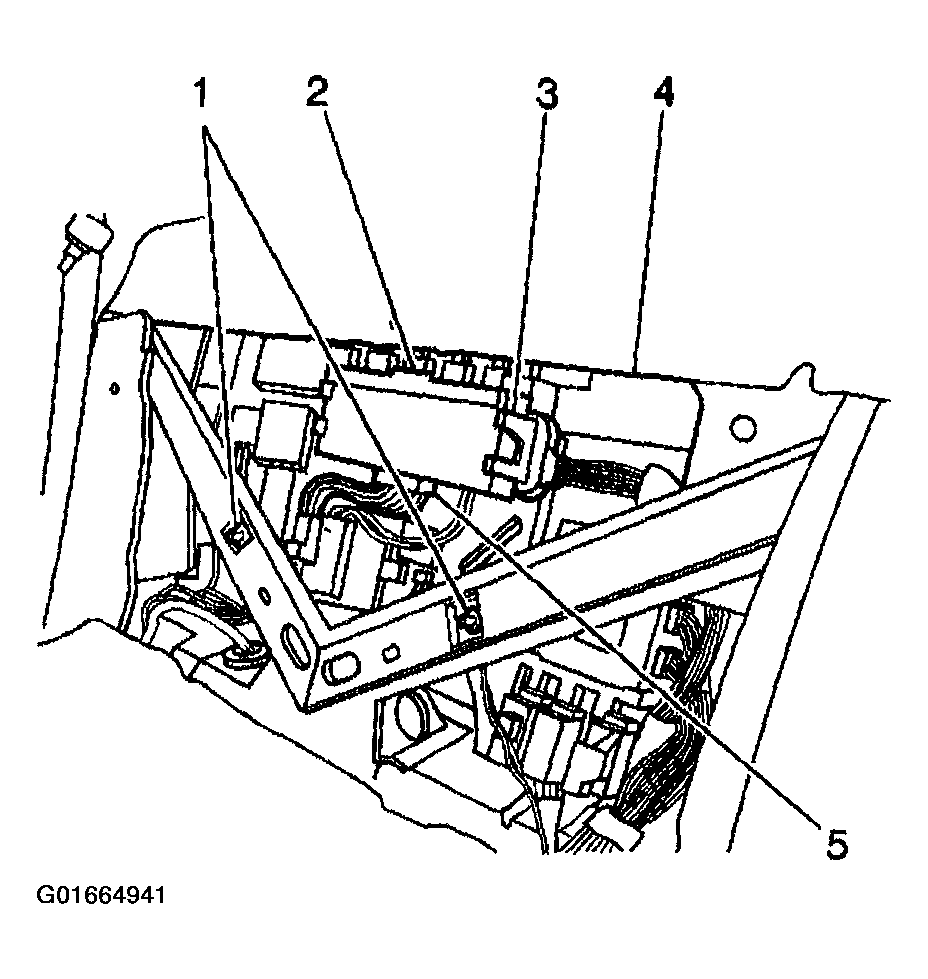

    Fig 1: Identifying Amplifier, Retainers, Electrical Component Mounting Bracket, & Electrical Connectors
    G01664941Courtesy of GENERAL MOTORS CORP.
