Removal Procedure
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
- Remove the seat back trim. Refer to COMPARTMENT FRONT TRIM PANEL REPLACEMENT - RE .
- Remove the module bracket fasteners.
- Lower the module bracket to the rear compartment floor.

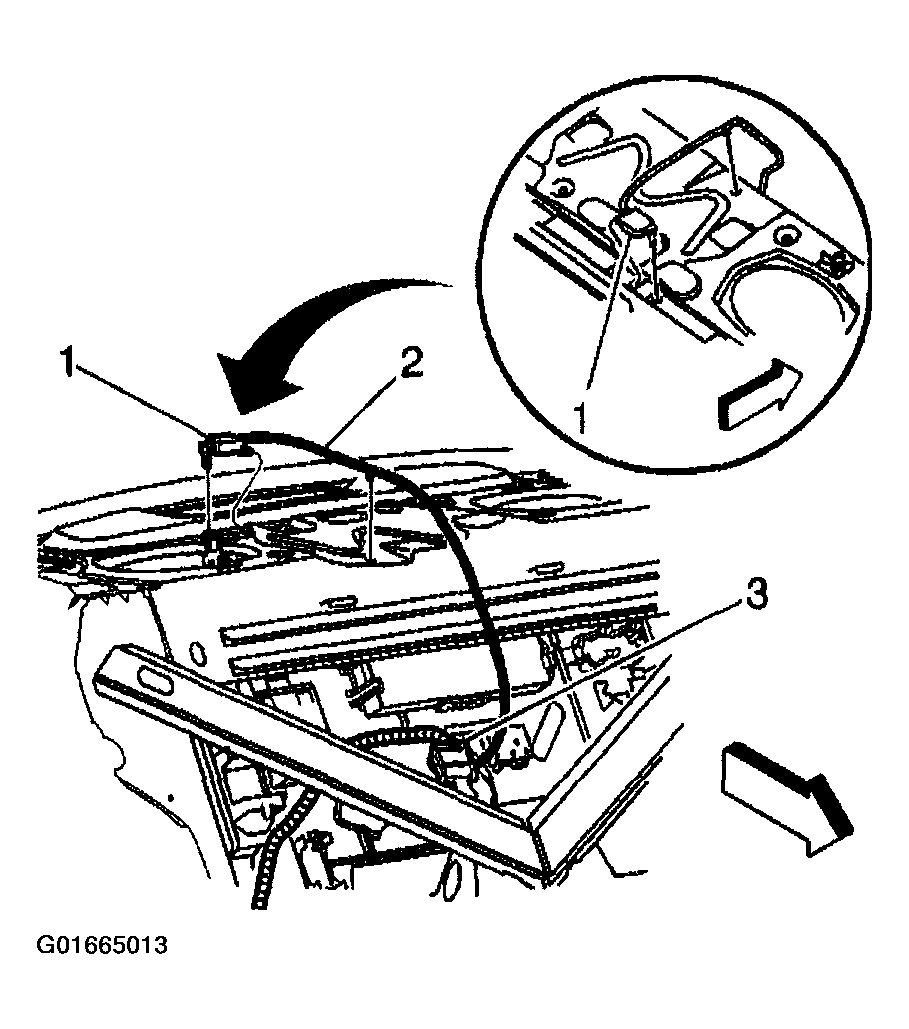

- Disconnect the Global Positioning System (GPS) antenna coaxial cable connector.
- Disengage the retainers (2) from the cable and the antenna base.
- Slide the locating tab on the antenna from the rear shelf.
- Remove the (GPS) antenna (1) from the rear shelf.
