Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the assist handle to the vehicle
NOTE: Refer to FASTENER NOTICE in Caution And Notices.
Install the assist handle retaining bolts.
Tighten

Tighten the bolts to 10 N.m (89 lb in).
Install the body pillar upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .

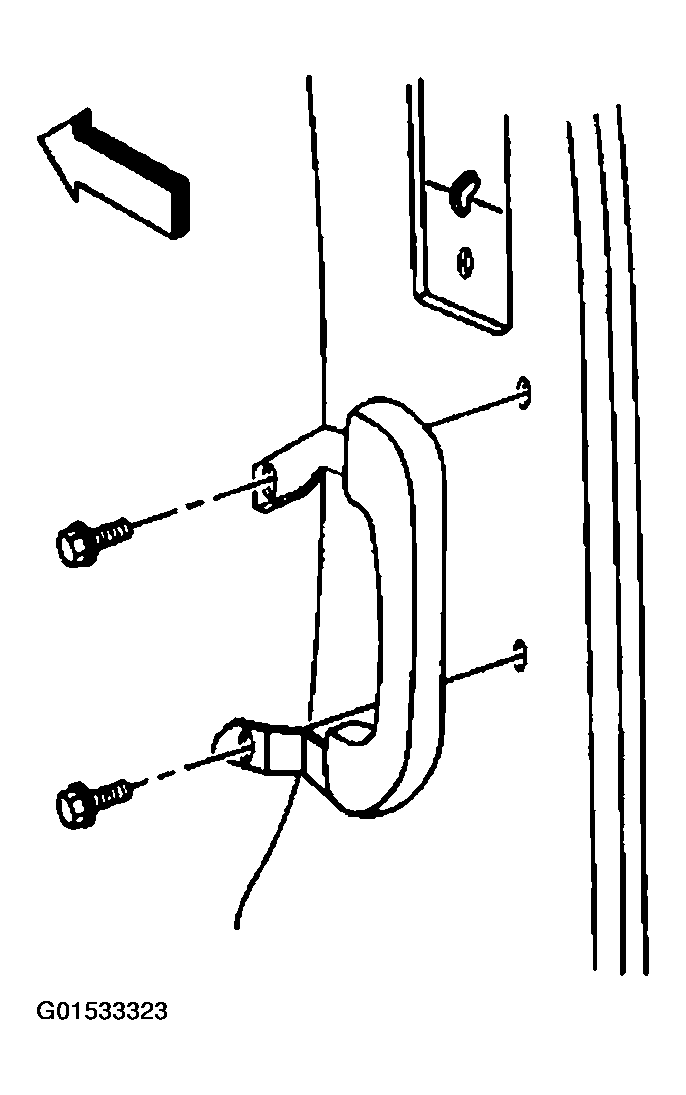

Fig 1: Installing Assist Handle To Vehicle
Courtesy of GENERAL MOTORS CORP.
