Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  in Instrument Panel, Gages and Console.
  2. Rotate the cruise control release switch counterclockwise until the travel stop has been reached (approximately 60 degrees).

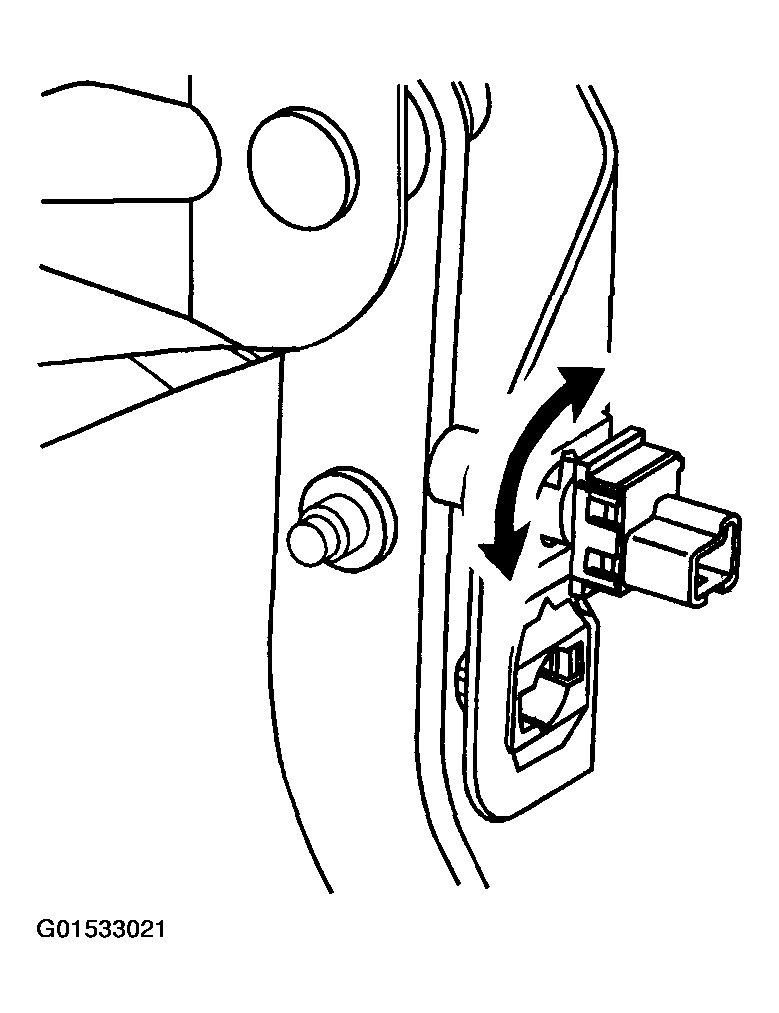

    Fig 1: Rotating Cruise Control Release Switch
    G01533021Courtesy of GENERAL MOTORS CORP.
  3. Remove the cruise control release switch from the retainer.
  4. Disconnect the cruise control release switch electrical connector.

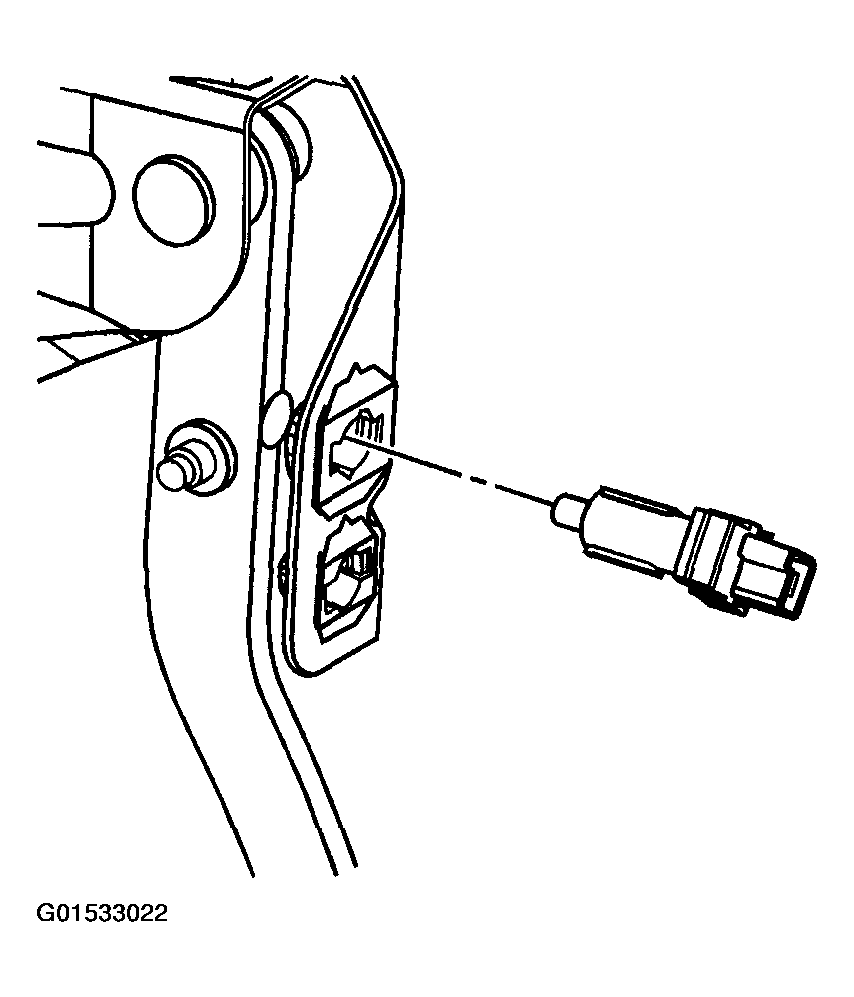

    Fig 2: Disconnecting Cruise Control Release Switch Electrical Connector
    G01533022Courtesy of GENERAL MOTORS CORP.
