Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the forward overhead console cover.
Remove the screws holding the VES bracket assembly to the roof. Refer to OVERHEAD CONSOLE - VES REPLACEMENT

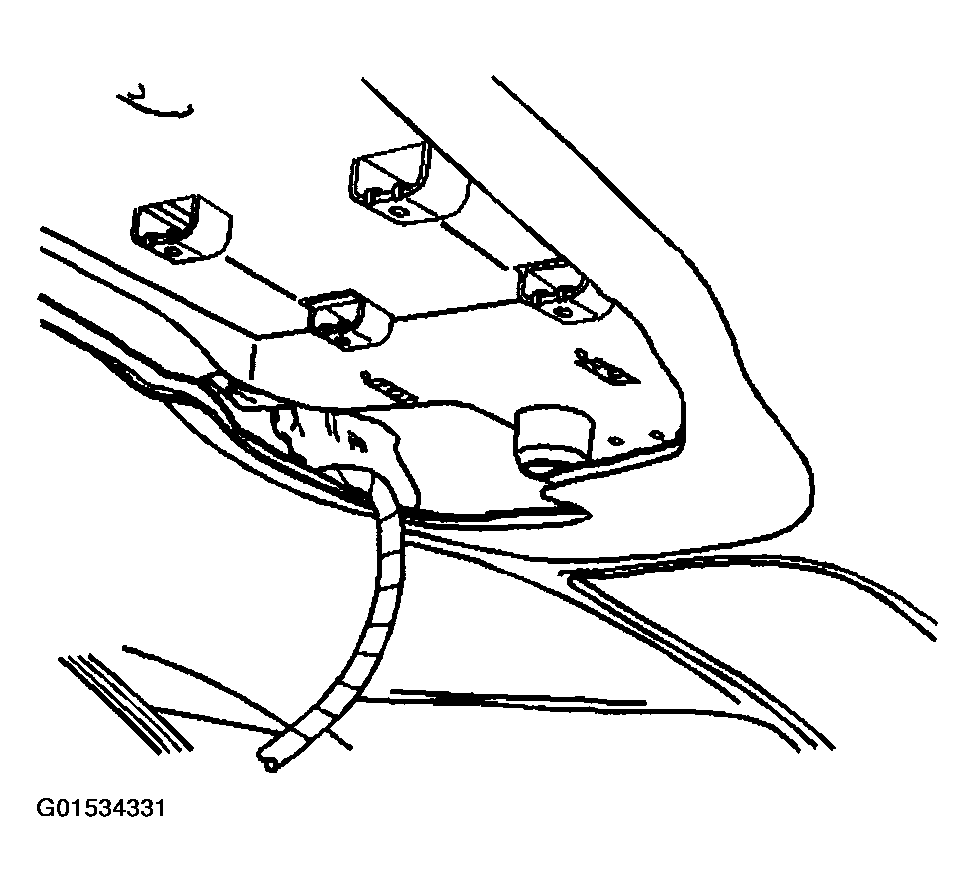

Fig 1: Removing Forward Overhead Console Cover
Courtesy of GENERAL MOTORS CORP.
Pull the headliner down and slide the bracket forward to release the rear locking tabs.

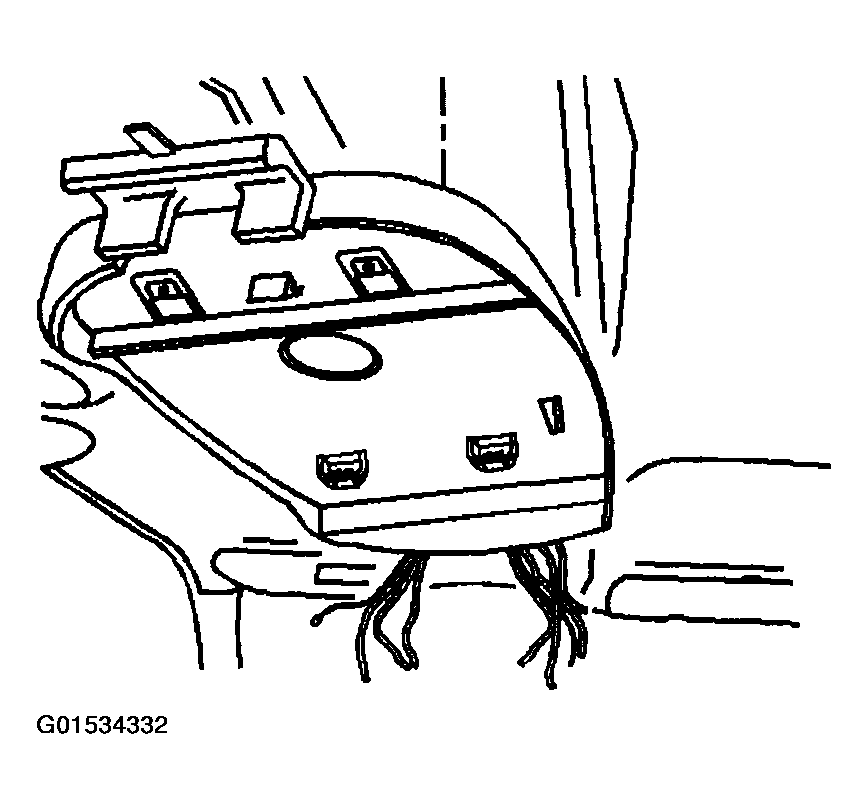

Fig 2: Pulling Headliner Down And Slide Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the bracket from the headliner.

Fig 3: Removing Bracket From Headliner
Courtesy of GENERAL MOTORS CORP.
