Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY  In Instrument Panel, Gages and Console.
  2. Remove the bolts/screws from the radio.

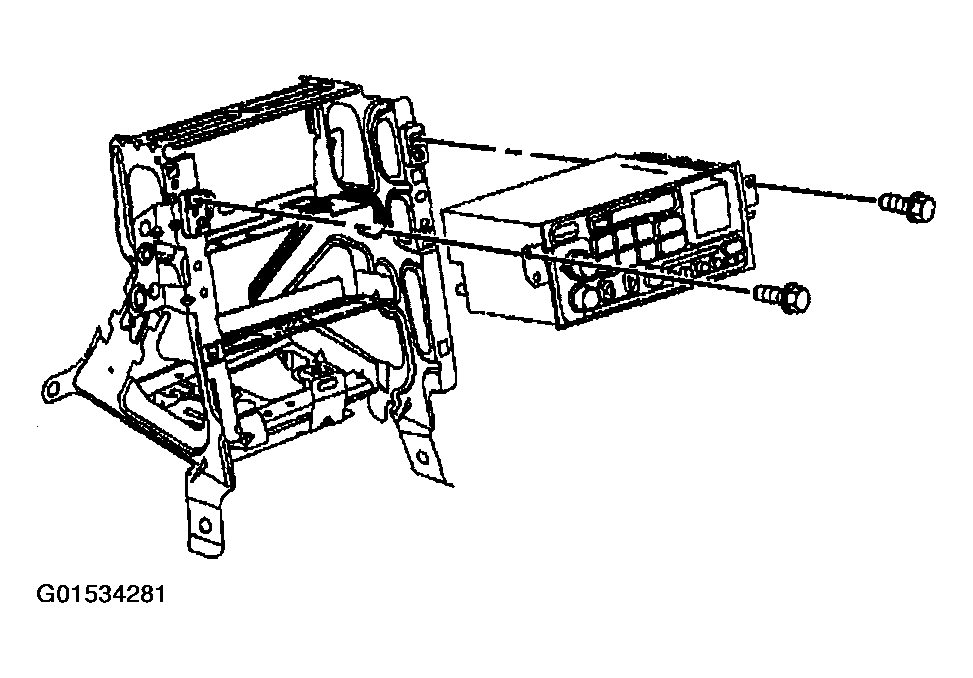

    Fig 1: Removing Bolts/Screws From Radio
    G01534281Courtesy of GENERAL MOTORS CORP.
  3. Remove the radio from the center support bracket enough to access the connectors at the rear of the radio.
  4. Disconnect the electrical/audio and antenna cable connectors from the radio.
  5. Pull straight out from the instrument panel in order to remove the radio.

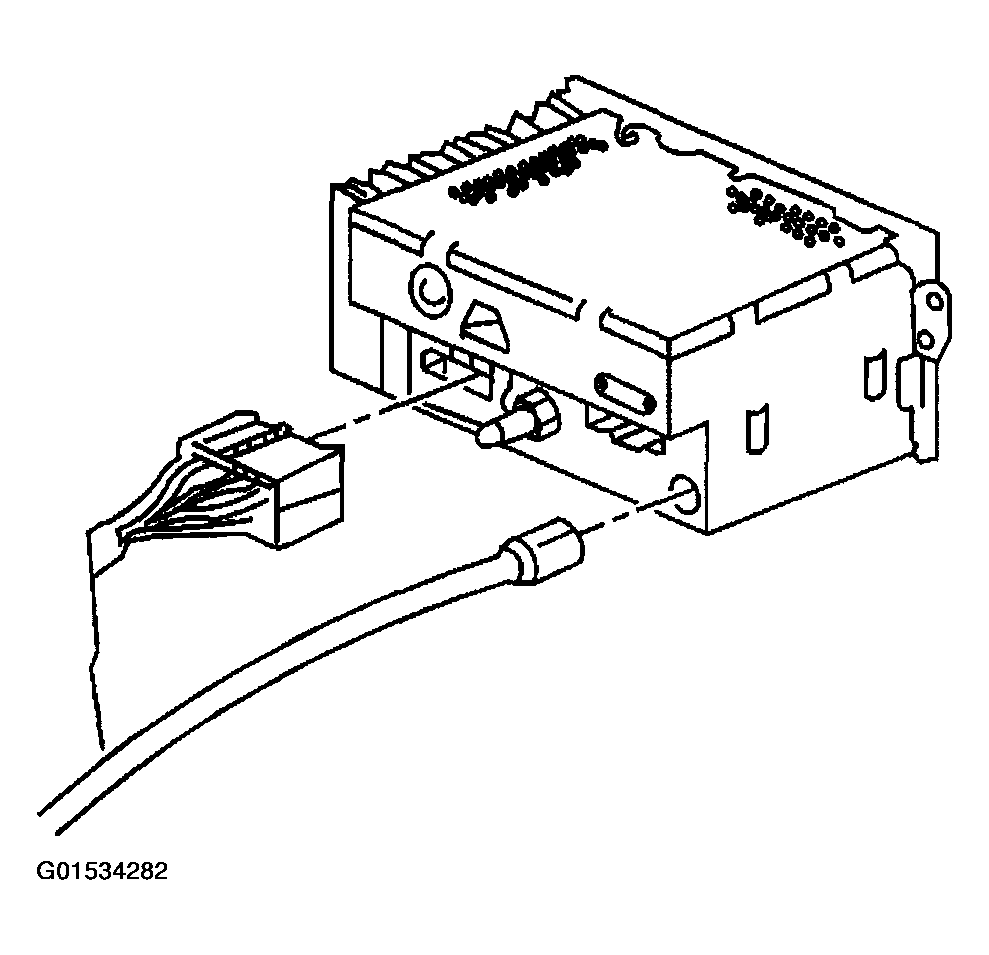

    Fig 2: Disconnecting Electrical/Audio And Antenna Cable Connectors From Radio
    G01534282Courtesy of GENERAL MOTORS CORP.
