Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bezel from the floor console. Refer to POWER ACCESSORY PORT REPLACE - FRONT FLOOR CONSOLE .
Remove the mounting screws from the DVD Player.

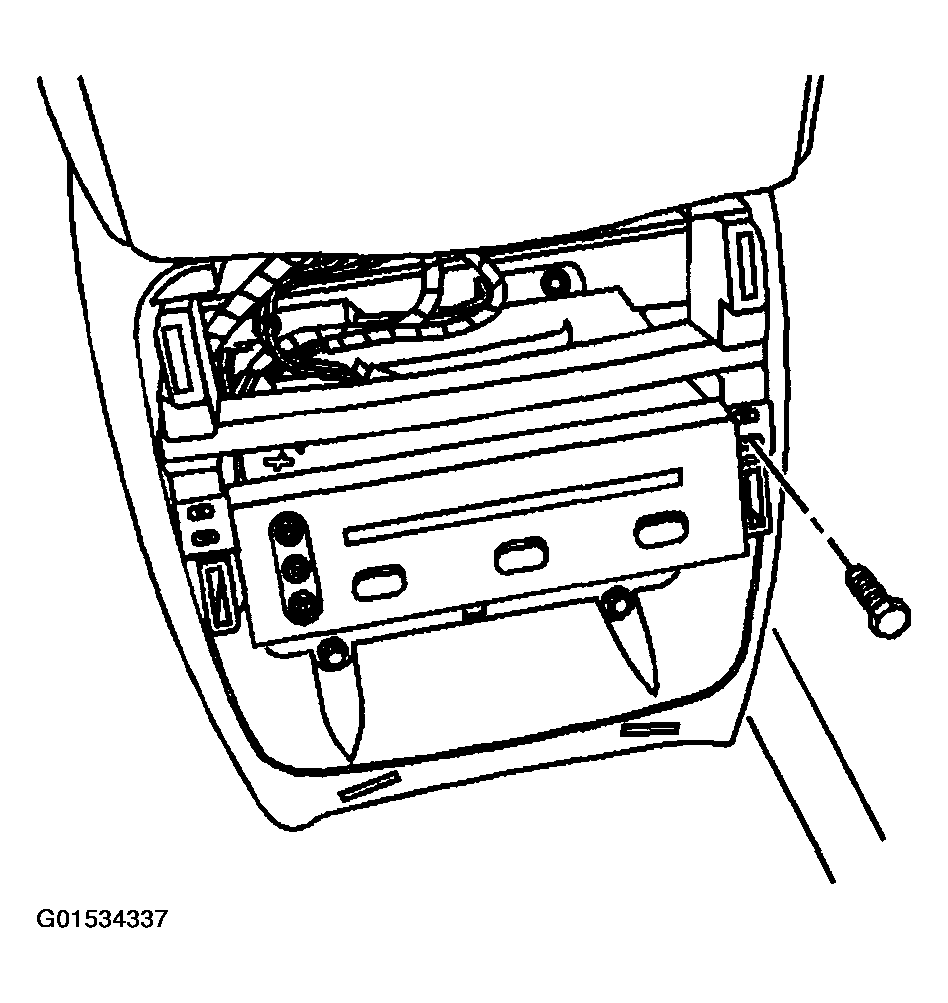

Fig 1: Removing Mounting Screws From DVD Player
Courtesy of GENERAL MOTORS CORP.
Slide the DVD player forward, and disconnect the electrical connectors from the DVD player.

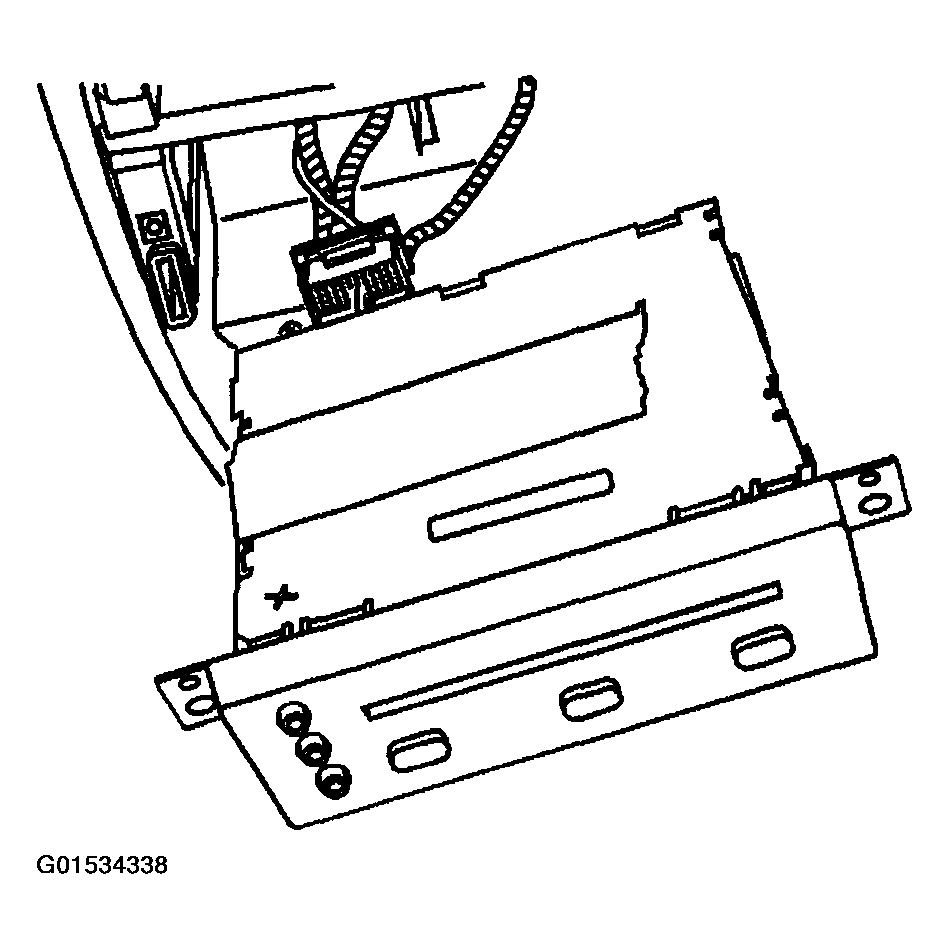

Fig 2: Disconnecting Electrical Connectors From DVD Player
Courtesy of GENERAL MOTORS CORP.
