Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Connect the extension cable to the antenna.

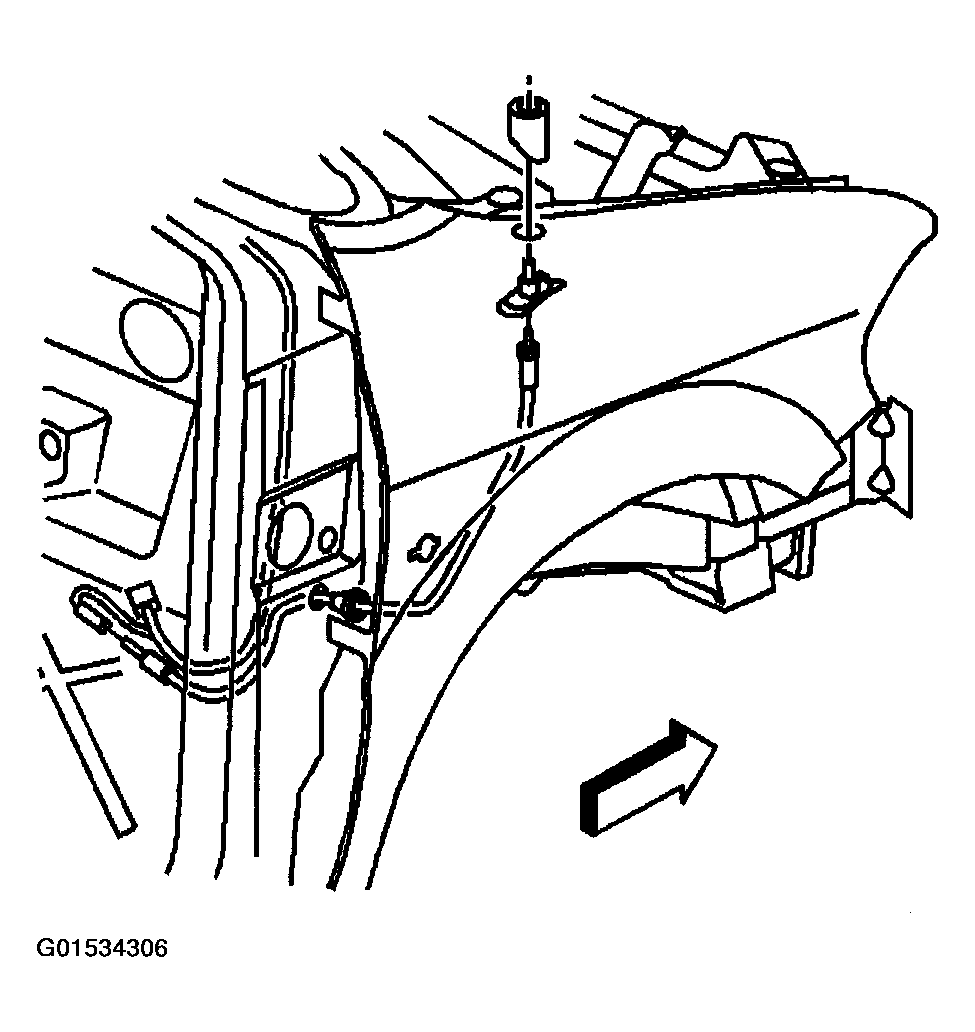

Fig 1: Connecting Extension Cable To Antenna
Courtesy of GENERAL MOTORS CORP.
Connect the extension cable to the radio.
Install the instrument panel assembly trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages, and Console.

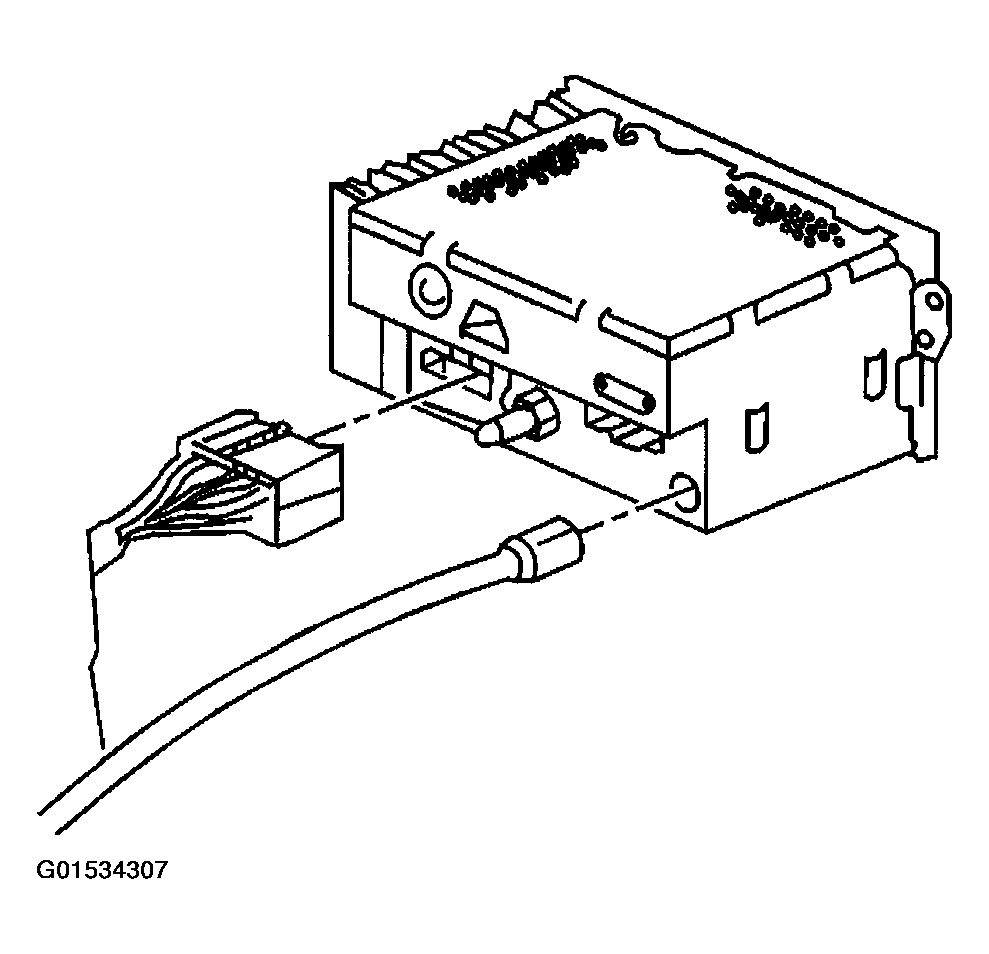

Fig 2: Connecting Extension Cable To Radio
Courtesy of GENERAL MOTORS CORP.
