Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  2. Disengage the turn signal flasher from the upper instrument panel carrier assembly.
  3. Disconnect the electrical connector.
  4. Remove the turn signal flasher.

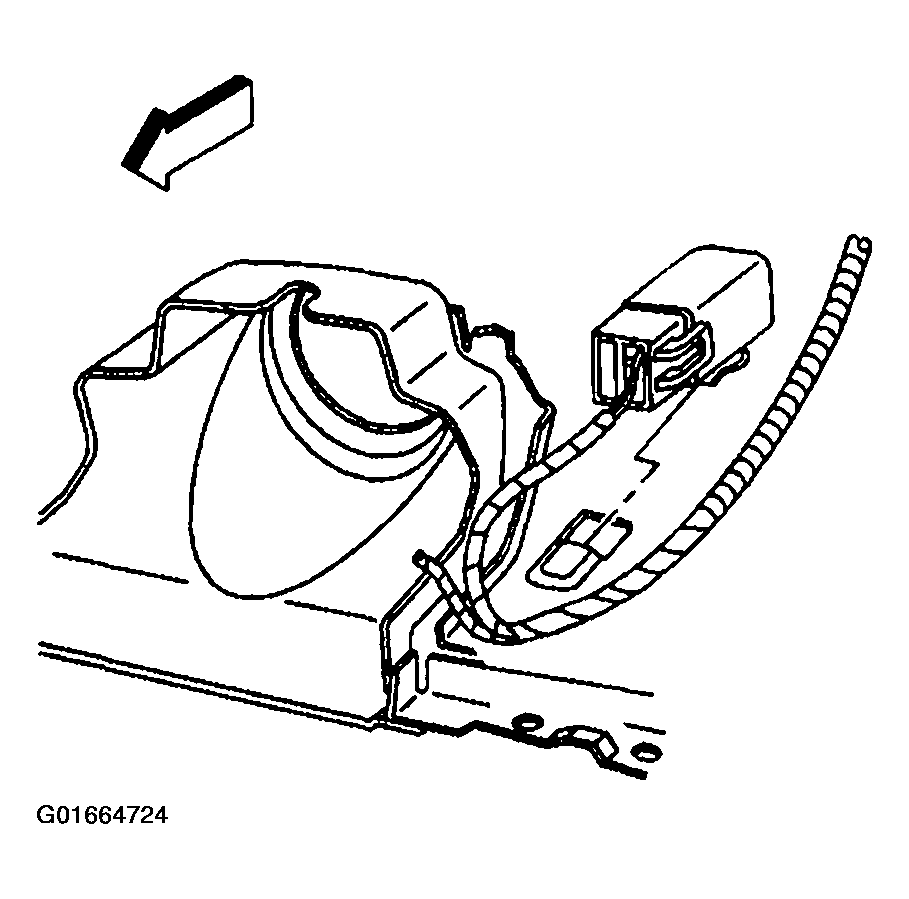

    Fig 1: Turn Signal Flasher & Components
    G01664724Courtesy of GENERAL MOTORS CORP.
