Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock actuator (4) to the latch (2).
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fasteners in order to secure the rear compartment latch switch.

    Tighten

    Tighten the fasteners to 1.5 N.m (13 lb in).

  3. Connect the electrical connector.
  4. Install the rear compartment lid lock actuator. Refer to HANDLE REPLACEMENT - REAR COMPARTMENT LID INTERIOR RELEASE .
  5. Close the rear compartment lid.

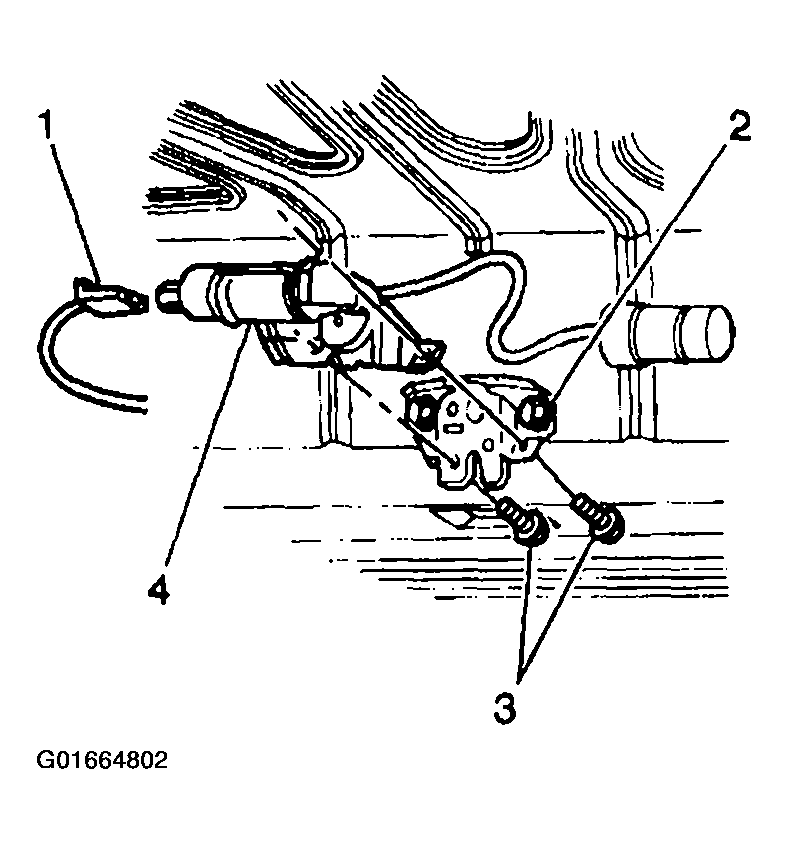

    Fig 1: Rear Compartment Lid Latch Switch & Components
    G01664802Courtesy of GENERAL MOTORS CORP.
