Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb into the lamp socket.
  2. Connect the electrical connector.
  3. Position the lamp to the left side of the opening.
  4. Position the right side of the rear compartment lamp into the opening.
  5. Gently press the lamp upward into place ensuring the lamp is fully seated.

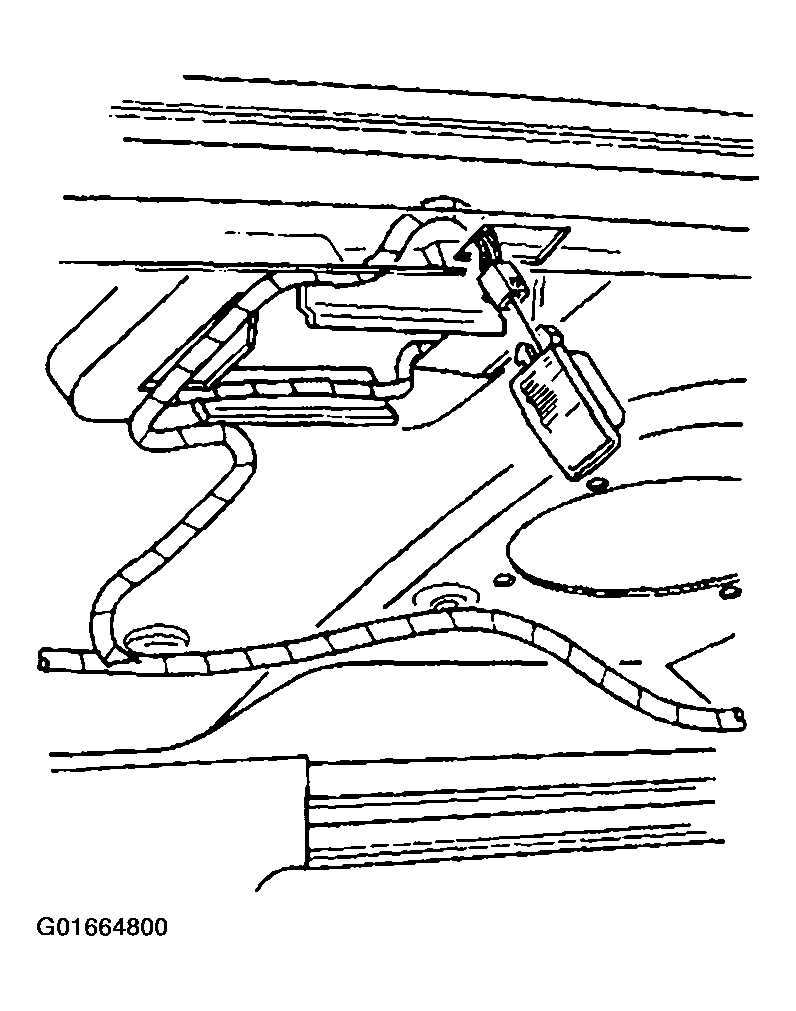

    Fig 1: Rear Compartment Lamp & Components
    G01664800Courtesy of GENERAL MOTORS CORP.
