Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the license lamp (1) to the license plate pocket.
  2. Twist the socket 45 degrees clockwise in order to secure.
  3. Install the license plate pocket. Refer to LICENSE PLATE POCKET REPLACEMENT (VJ6) .

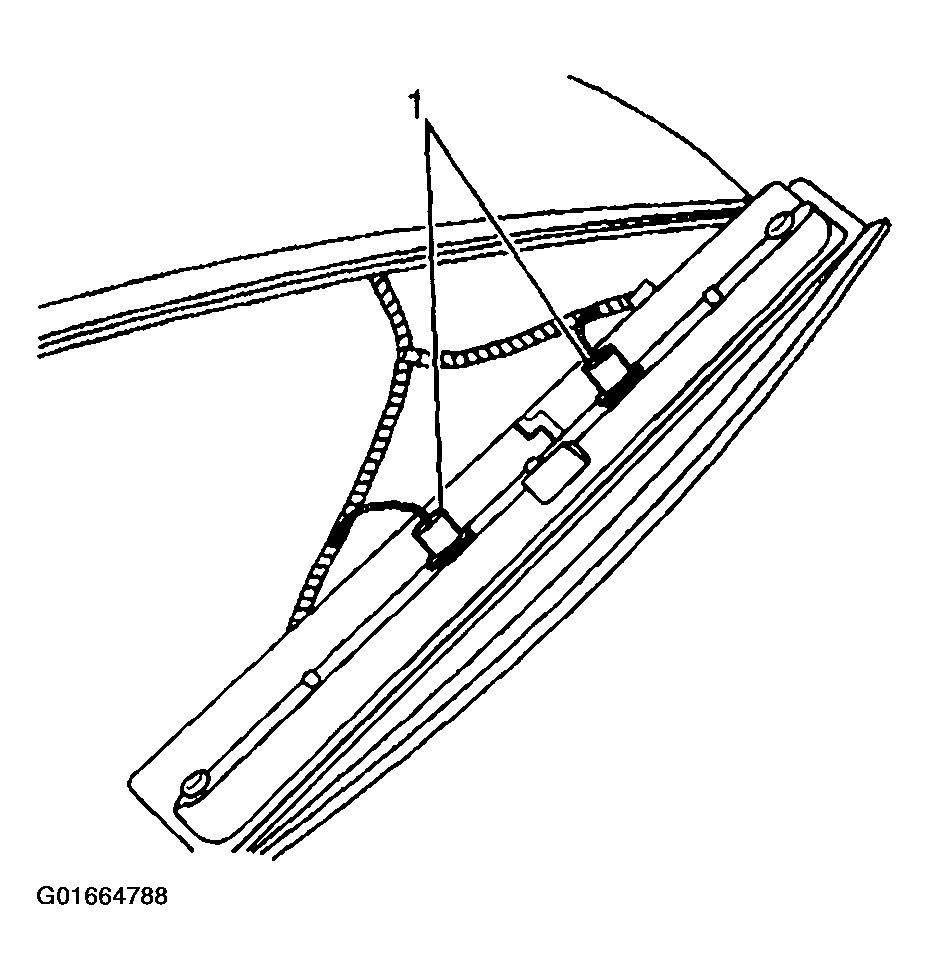

    Fig 1: Locating License Lamp
    G01664788Courtesy of GENERAL MOTORS CORP.
