Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Install the license lamp bulb into the socket in order to secure.

Fig 1: License Lamp Bulb & Socket
Courtesy of GENERAL MOTORS CORP.
Install the license lamp connector (1) and turn the lamp socket connector clockwise 45 degrees in order to secure.
Install the license plate pocket. Refer to LICENSE PLATE POCKET REPLACEMENT (VJ6) .

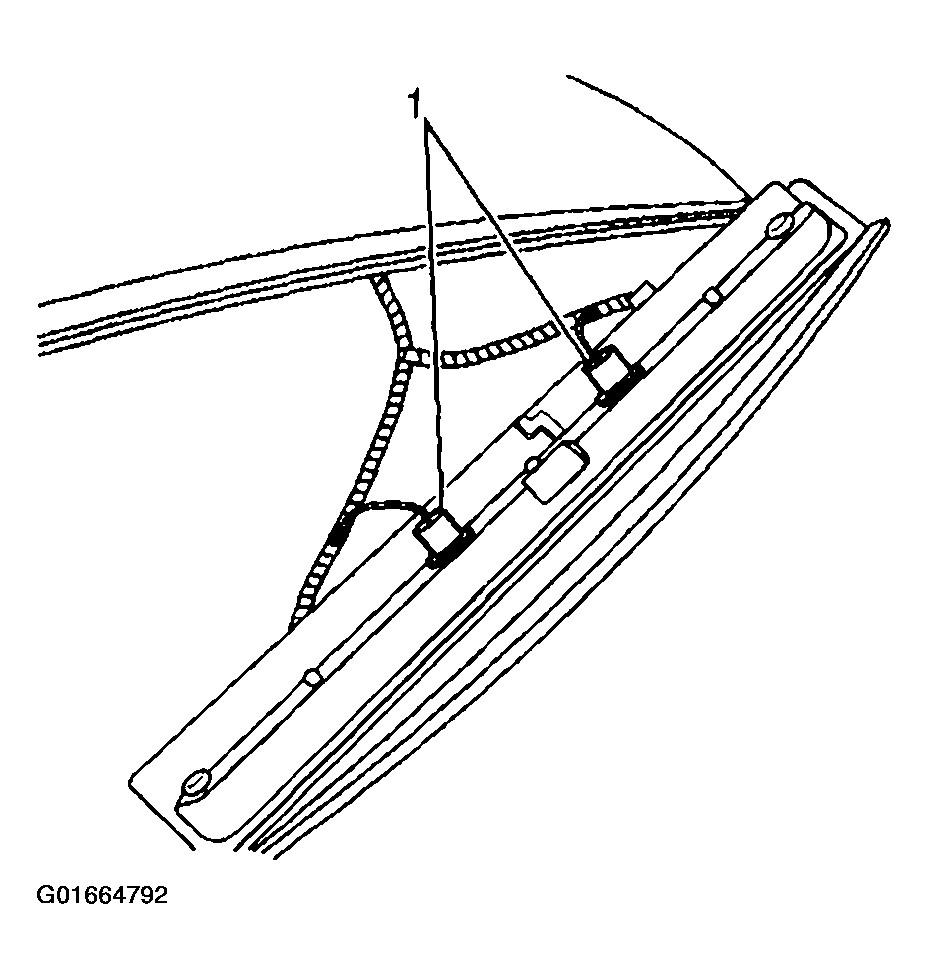

Fig 2: Locating License Lamp
Courtesy of GENERAL MOTORS CORP.
