Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Install the headlamp bulbs to the headlamp capsule
Insert the tabs on the capsule in the slots in the housing (2).
NOTE: Refer to FASTENER NOTICE .
Install the fasteners in order to retain the headlamp capsule (5) to the headlamp housing panel.
Tighten

Tighten the fasteners to 6 N.m (53 lb in).

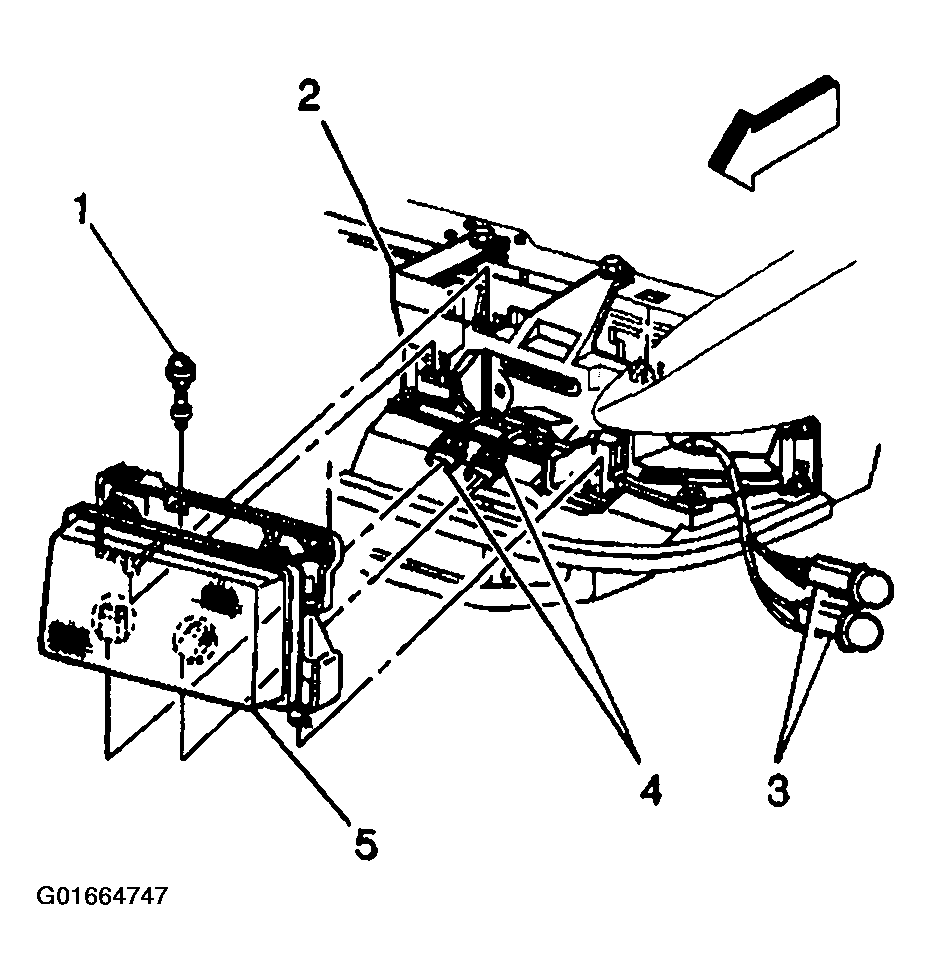

Fig 1: Headlamp Capsule, Headlamp Housing Panel & Components
Courtesy of GENERAL MOTORS CORP.
Install the turn signal lamp. Refer to Park/Turn Signal Lamp Replacement .
Install the upper filler panel. Refer to FILLER PANEL REPLACEMENT - UPPER .

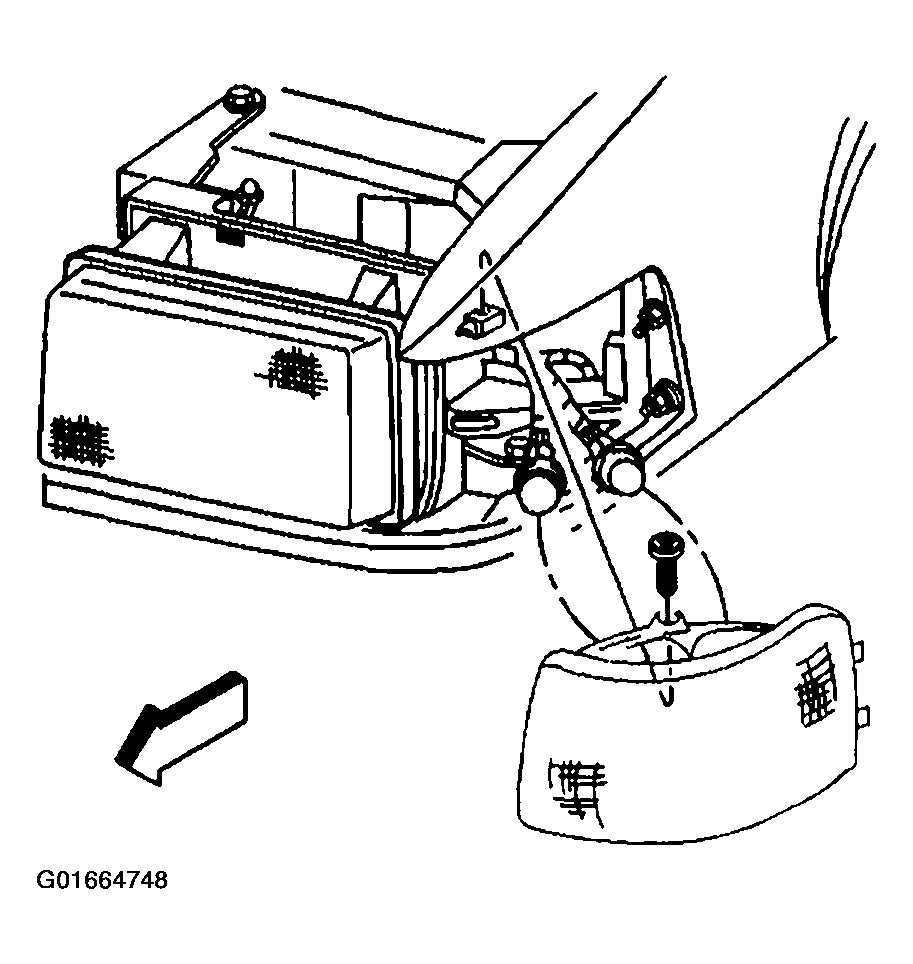

Fig 2: Locating Turn Signal Lamp Assembly
Courtesy of GENERAL MOTORS CORP.
