Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Position the backup lamp assembly to the license plate pocket.

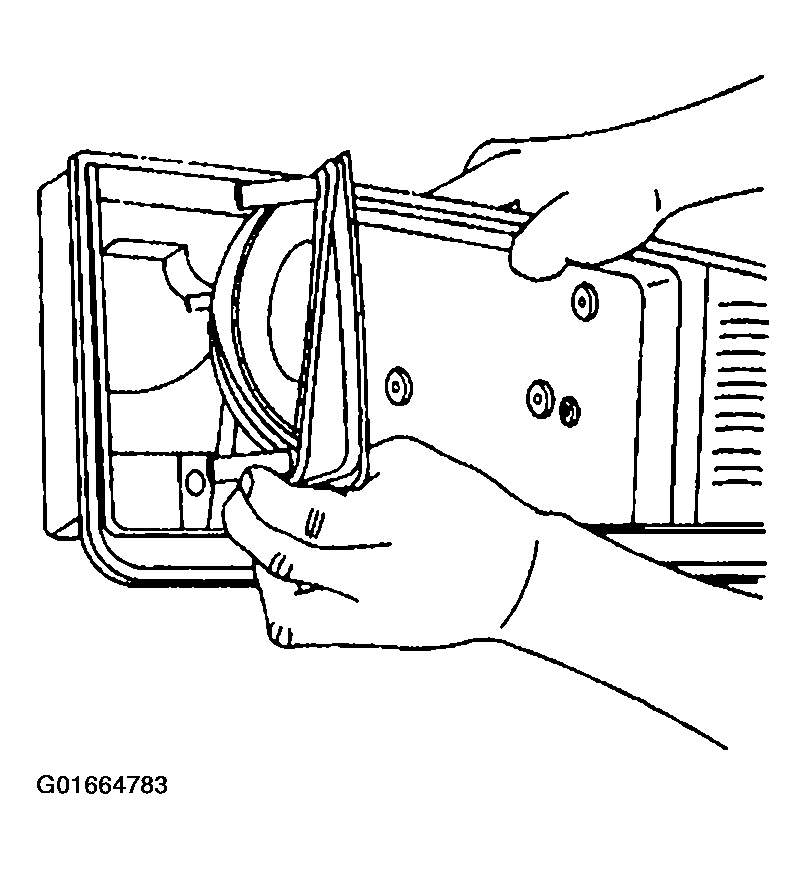

Fig 1: Backup Lamp Assembly At License Plate Pocket
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the screws which retain the backup lamp to the license plate pocket.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the license plate pocket. Refer to LICENSE PLATE POCKET REPLACEMENT (VJ6) .

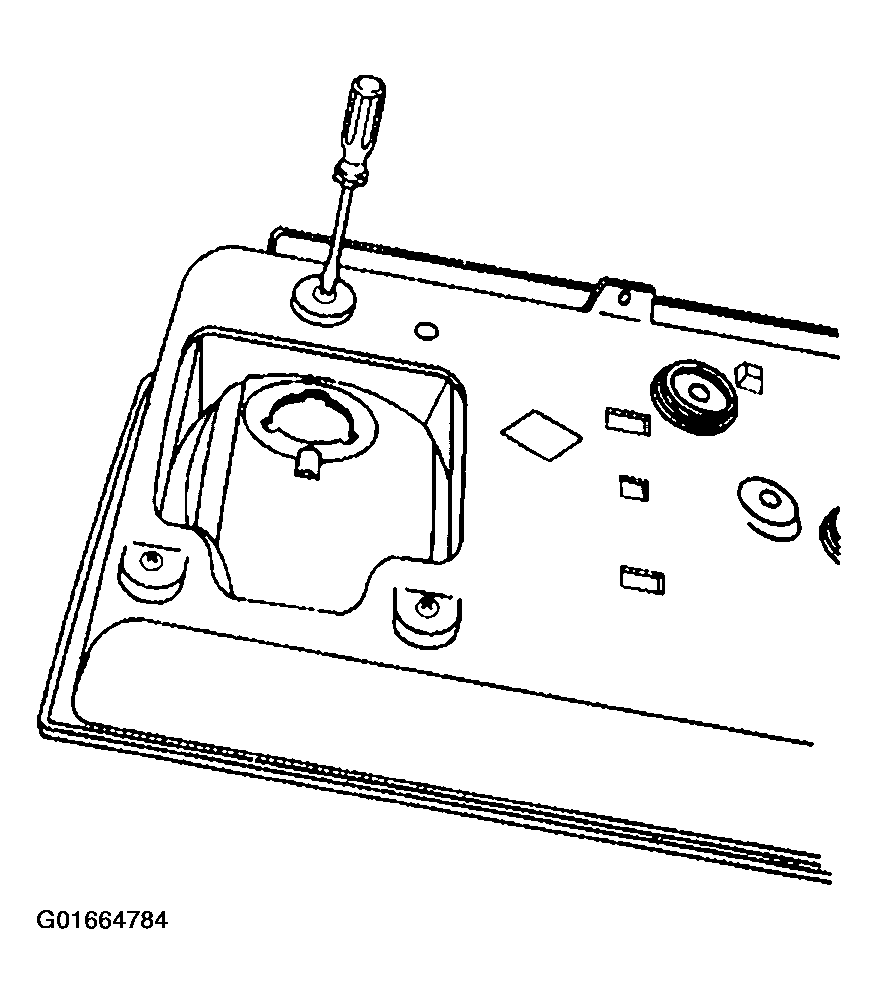

Fig 2: Locating Screws Which Retain Backup Lamp To License Plate Pocket
Courtesy of GENERAL MOTORS CORP.
