Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

Install the new backup lamp bulb into the socket.
Press inward the bulb and turn the bulb clockwise in order to secure.
Install the backup lamp bulb socket into the housing.
Turn the socket clockwise in order to engage the locking tabs.
Install the license plate pocket. Refer to LICENSE PLATE POCKET REPLACEMENT (VJ6) .

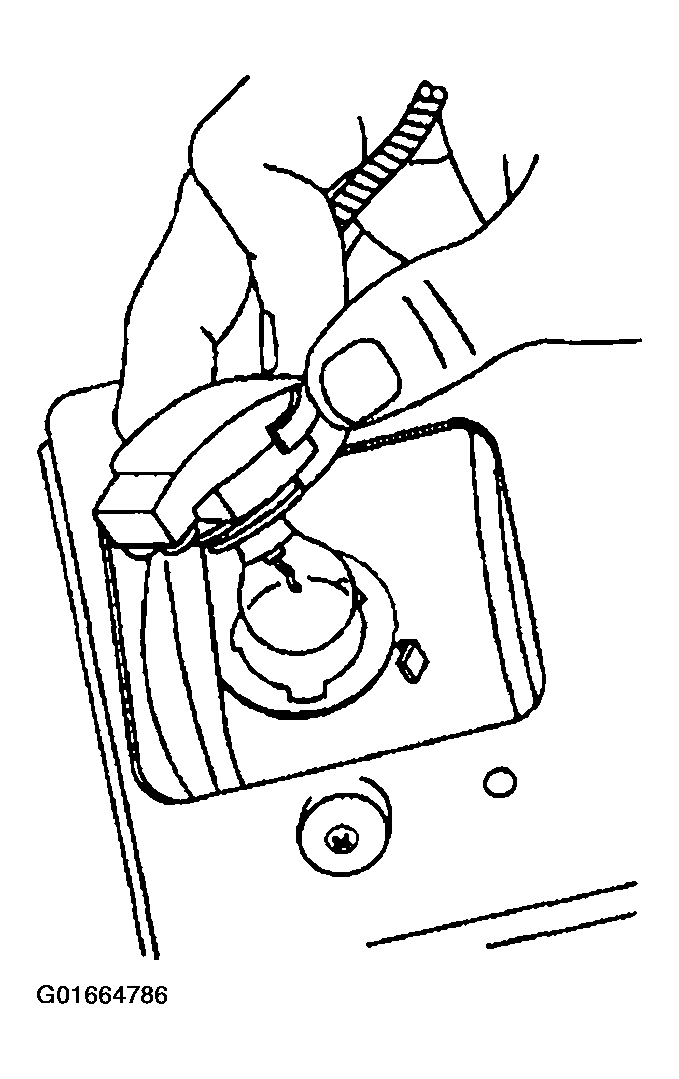

Fig 1: Backup Lamp Bulb & Socket
Courtesy of GENERAL MOTORS CORP.
