WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

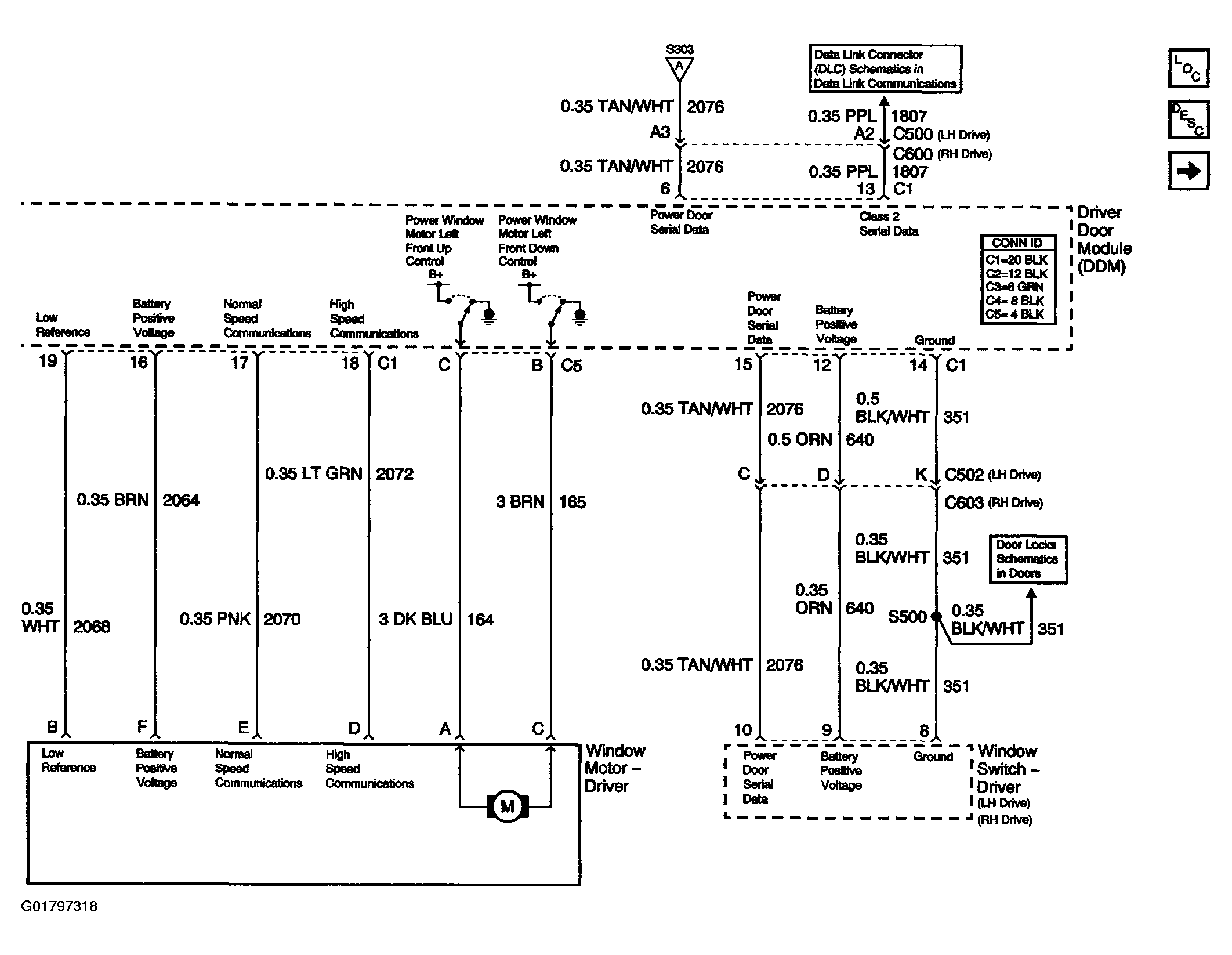

Fig 1: Power Window Schematics (Driver Power Windows)
Courtesy of GENERAL MOTORS CORP.

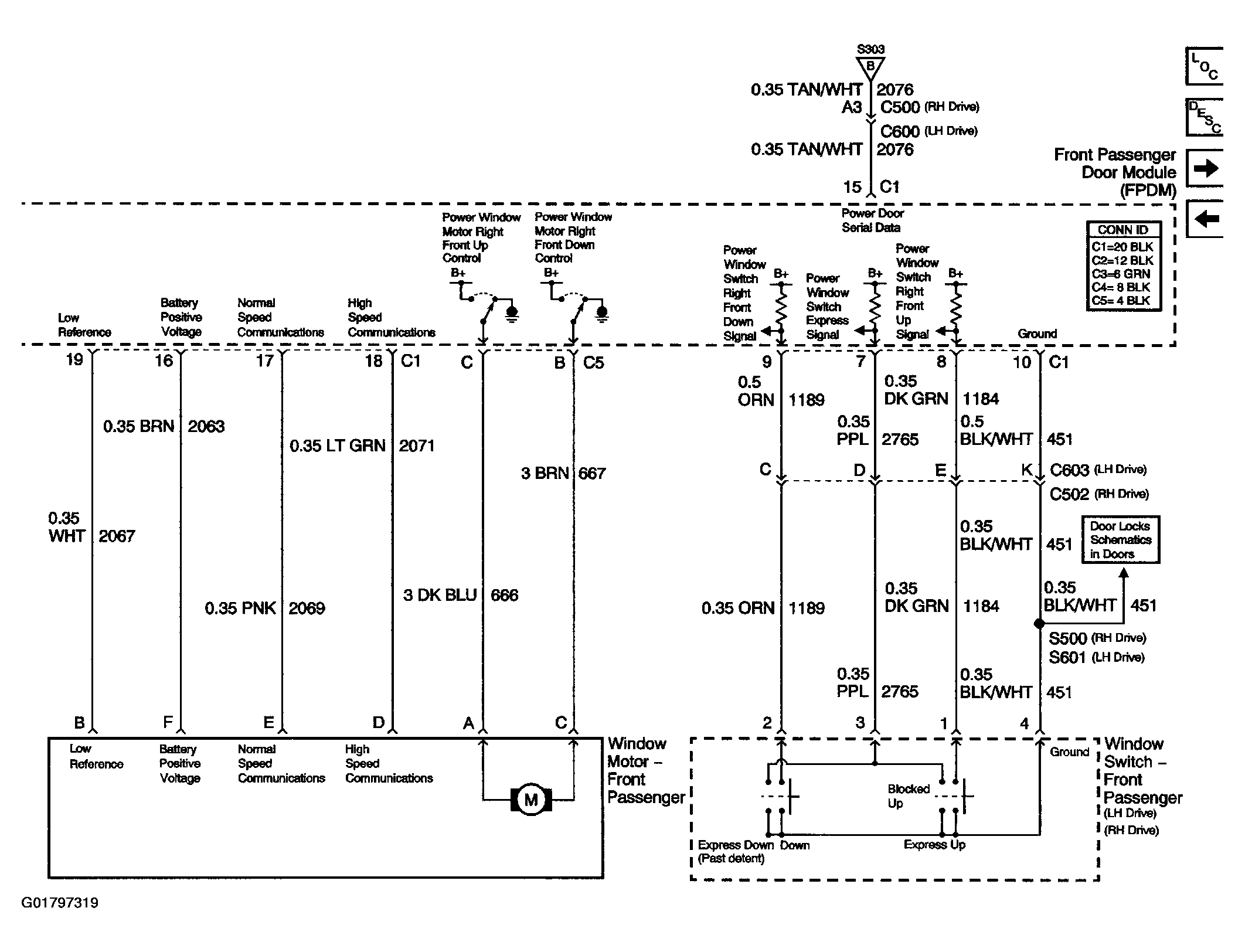

Fig 2: Power Window Schematics (Front Passenger Power Window)
Courtesy of GENERAL MOTORS CORP.

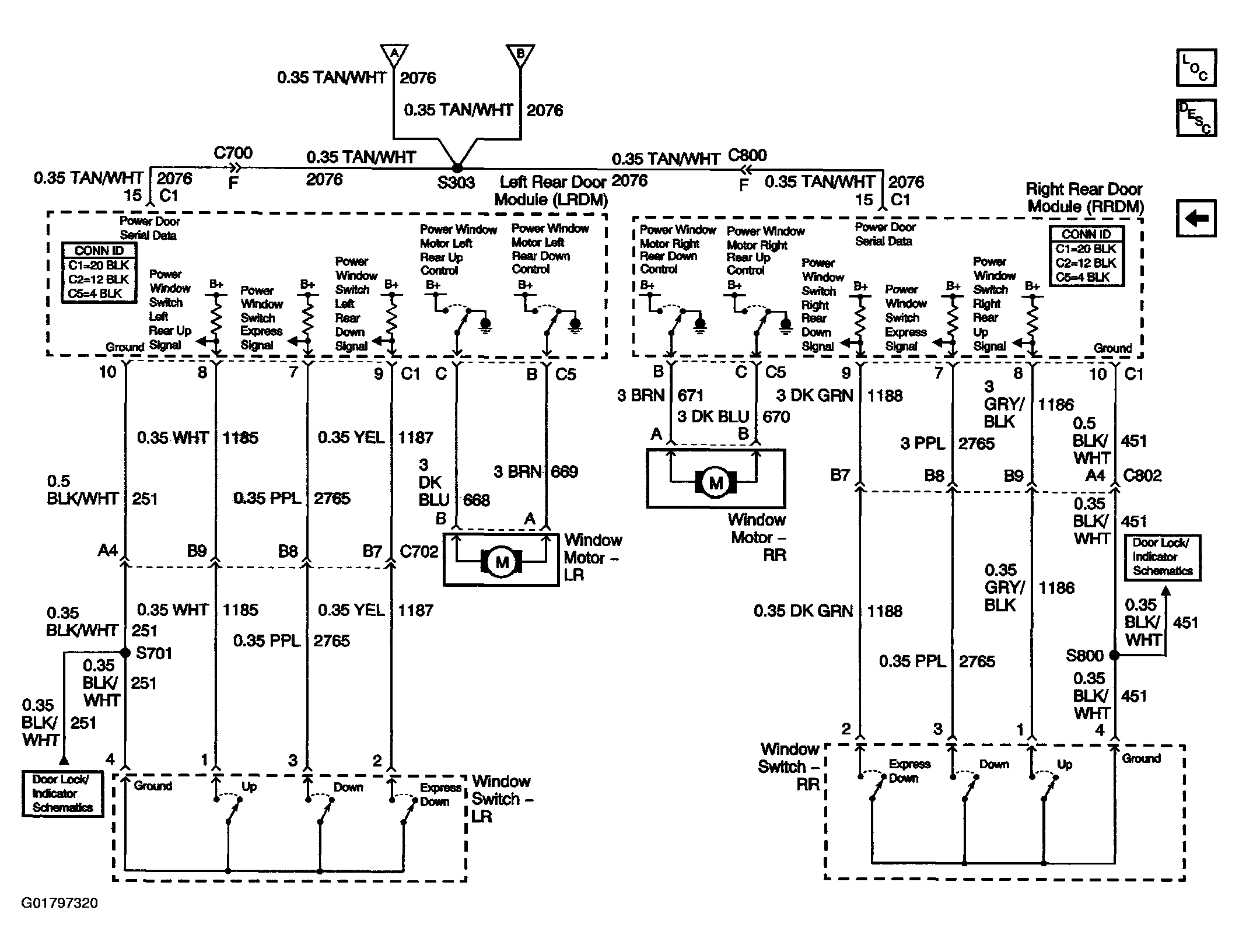

Fig 3: Power Window Schematics (Rear Power Windows)
