Test Description

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step determines if the DDM recognizes the lockout switch input.
  2. 4. This step determines if the indicator is operating properly.

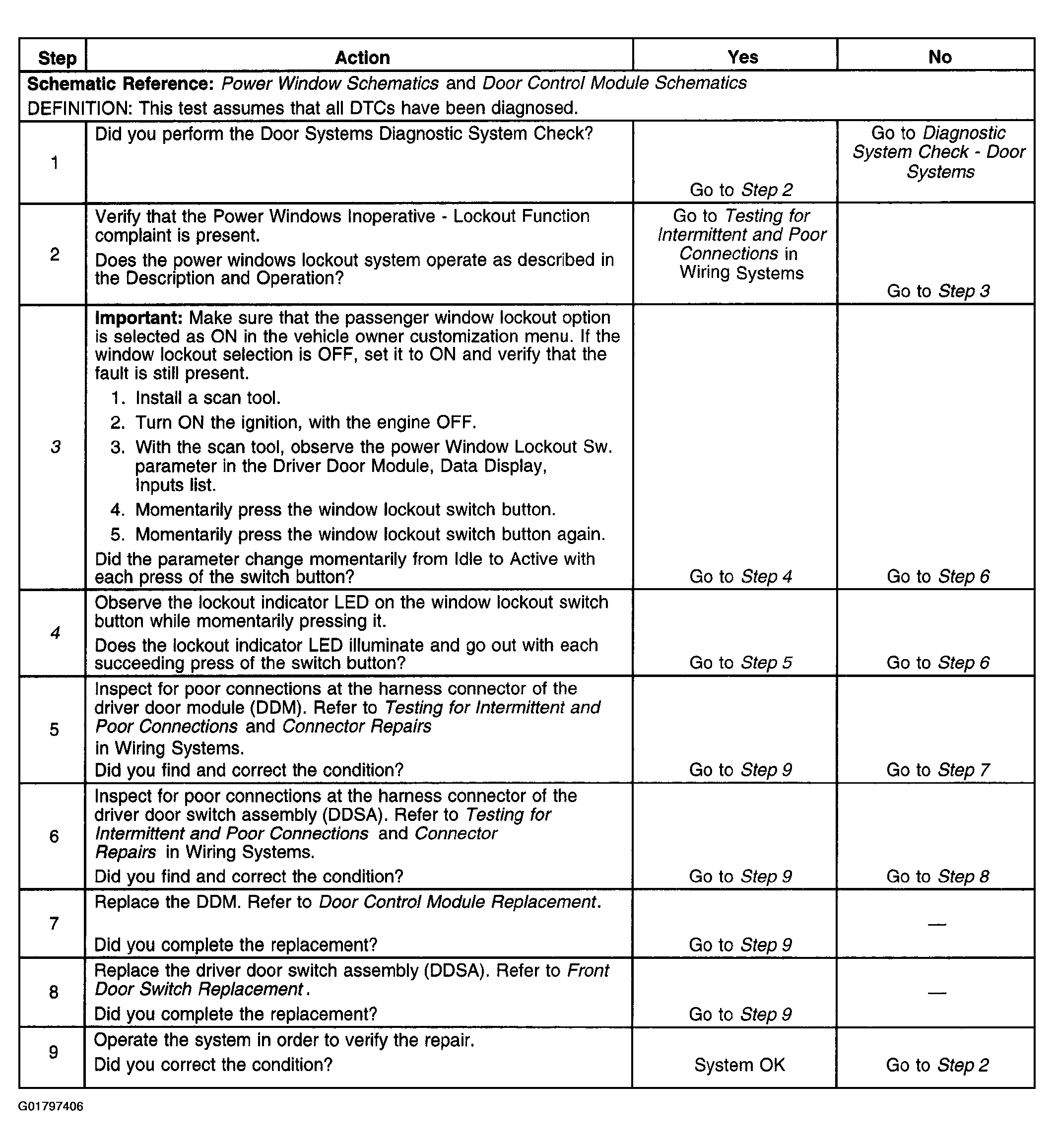

    Fig 1: Power Windows Inoperative - Lockout Function Diagnostic Table
    G01797406Courtesy of GENERAL MOTORS CORP.
