Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sight shield (2) to the radiator support.
  2. Install new push-in retainers (1) in order to retain the radiator support sight shield (2).
  3. Install both upper filler panels. Refer to Filler Panel Replacement - Upper .
  4. Close the hood.

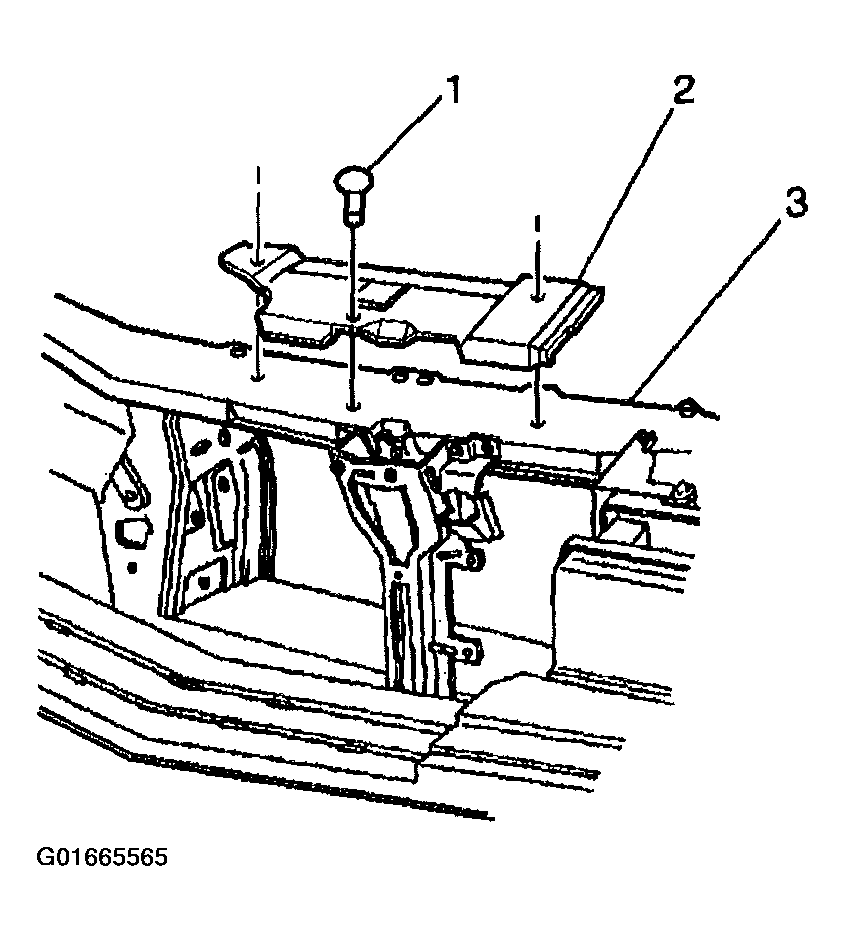

    Fig 1: Radiator Support Sight Shield & Components
    G01665565Courtesy of GENERAL MOTORS CORP.
