Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the audio video wiring harness to the IP compartment.
  2. Push the audio video wiring harness firmly into the opening in the IP compartment in order to engage the locking tabs.
  3. Install the IP compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I .

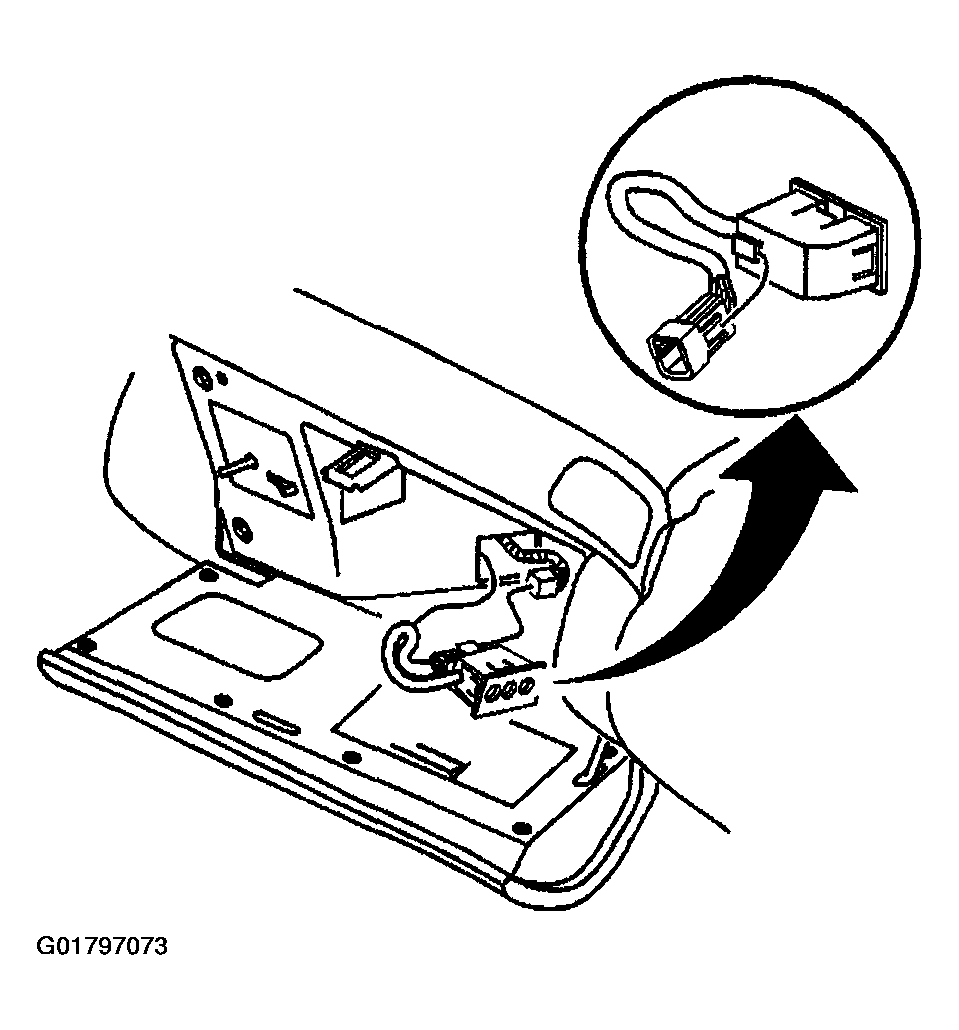

    Fig 1: Installing Audio Video Wiring Harness & IP Compartment
    G01797073Courtesy of GENERAL MOTORS CORP.
