Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

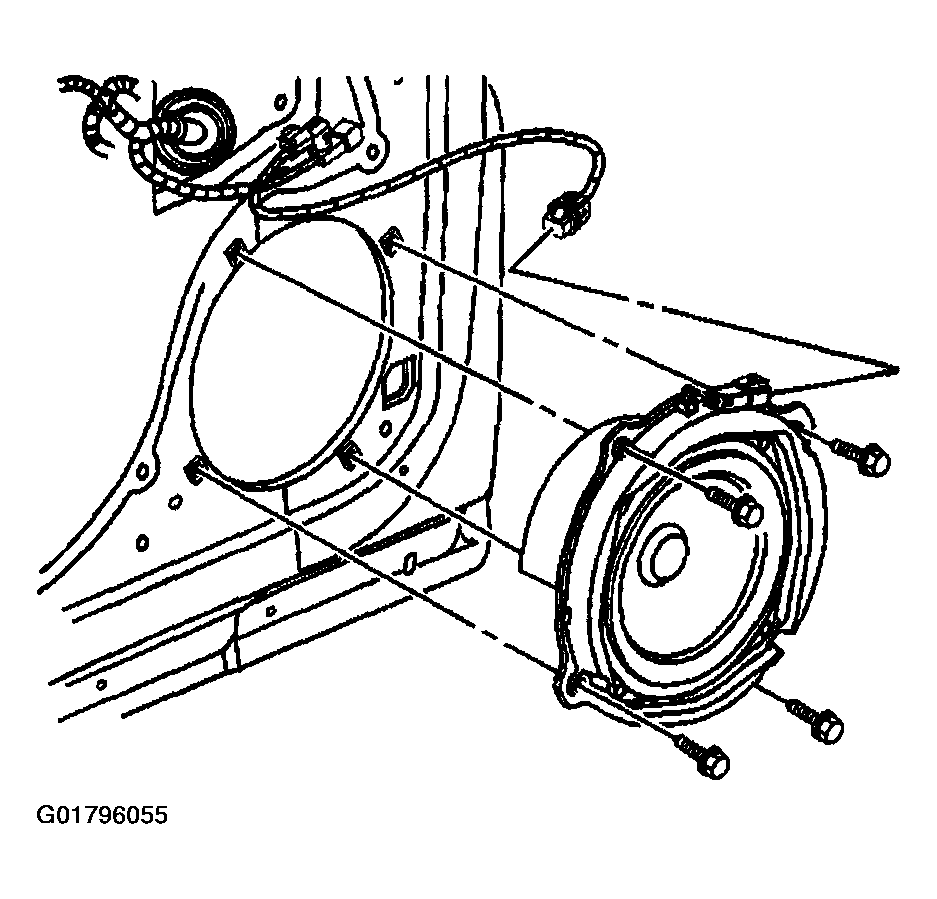

    Fig 1: View Of Front Lower Speaker
    G01796055Courtesy of GENERAL MOTORS CORP.
  1. Install the speaker into the door, with the electrical connector oriented as noted during removal.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the four fasteners.

    Tighten

    Tighten the 4 speaker fasteners to 2.5 N.m (22 lb in).

    Important:  If the vehicle is equipped with door-mounted tweeter speakers, ensure that the proper harness connector is connected to the proper speaker.

  3. Connect the electrical connector to the speaker.
  4. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
