Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

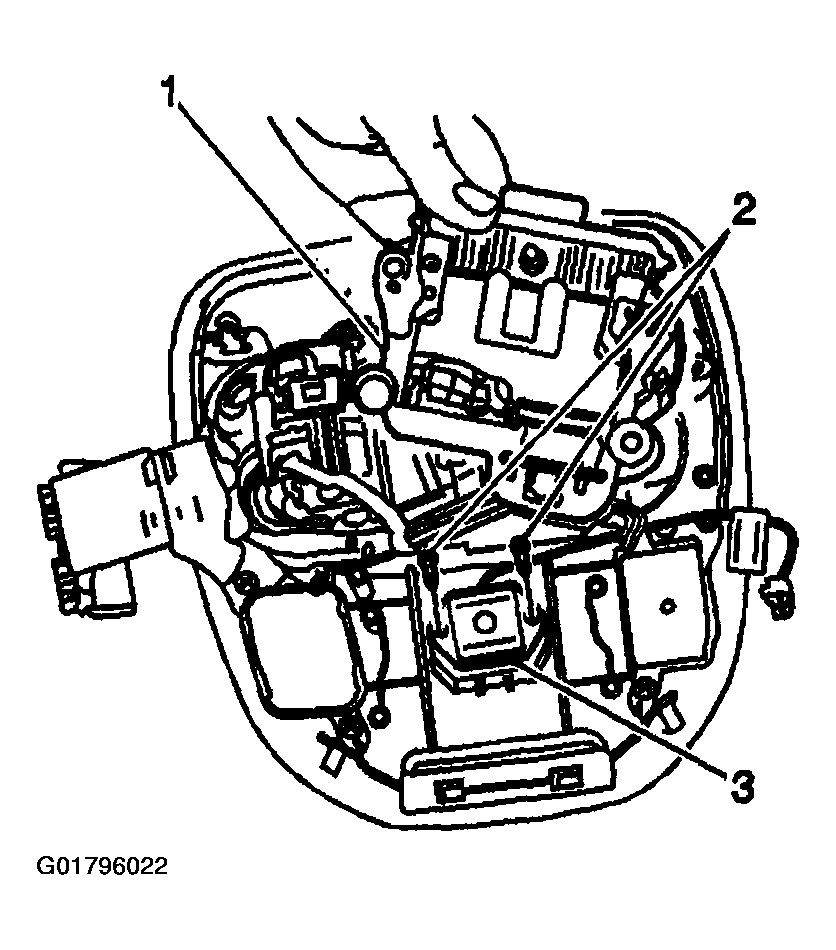

    Fig 1: Installing Noise Cancellation Microphone
    G01796022Courtesy of GENERAL MOTORS CORP.
  1. Install the noise cancellation microphone (3) to the overhead console.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the microphone screws (2).

    Tighten

    Tighten the screws to 1.5 N.m (14 lb in).

  3. Rotate the garage door opener carrier (1) into position over the noise cancellation microphone.

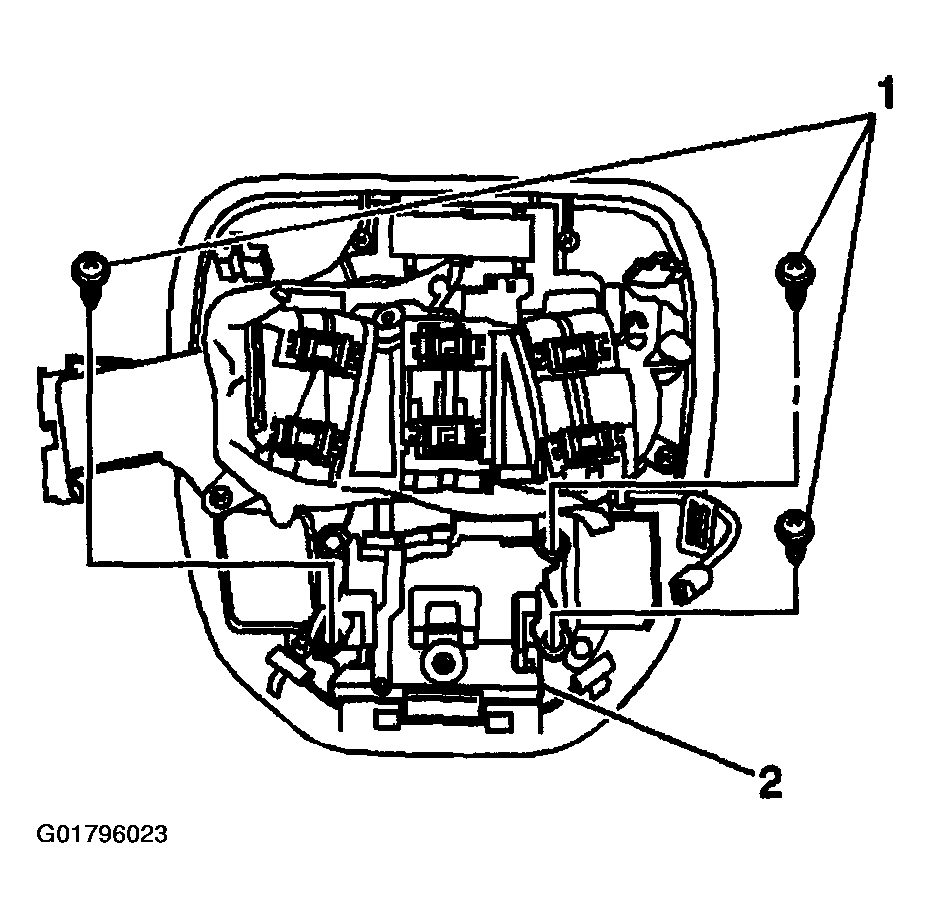

    4. Fig 2: Locating Garage Door Opener Carrier Screws
    G01796023Courtesy of GENERAL MOTORS CORP.
  4. Install the garage door opener carrier screws (1).

    Tighten

    Tighten the screws to 1.5 N.m (14 lb in).

  5. Install the garage door opener to the overhead console. Refer to GARAGE DOOR OPENER REPLACEMENT .
  6. Install the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD .
