Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console. Refer to CONSOLE TRIM PANEL REPLACEMENT - LEFT .
  2. Remove the left front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET .
  3. Remove the left front carpet retainer. Refer to CARPET RETAINER REPLACEMENT - FRONT .
  4. Remove the left rear carpet retainer. Refer to CARPET RETAINER REPLACEMENT - REAR .
  5. Remove the center pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR .
  6. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .
  7. Remove the left rear sail panel. Refer to SAIL PANEL REPLACEMENT .

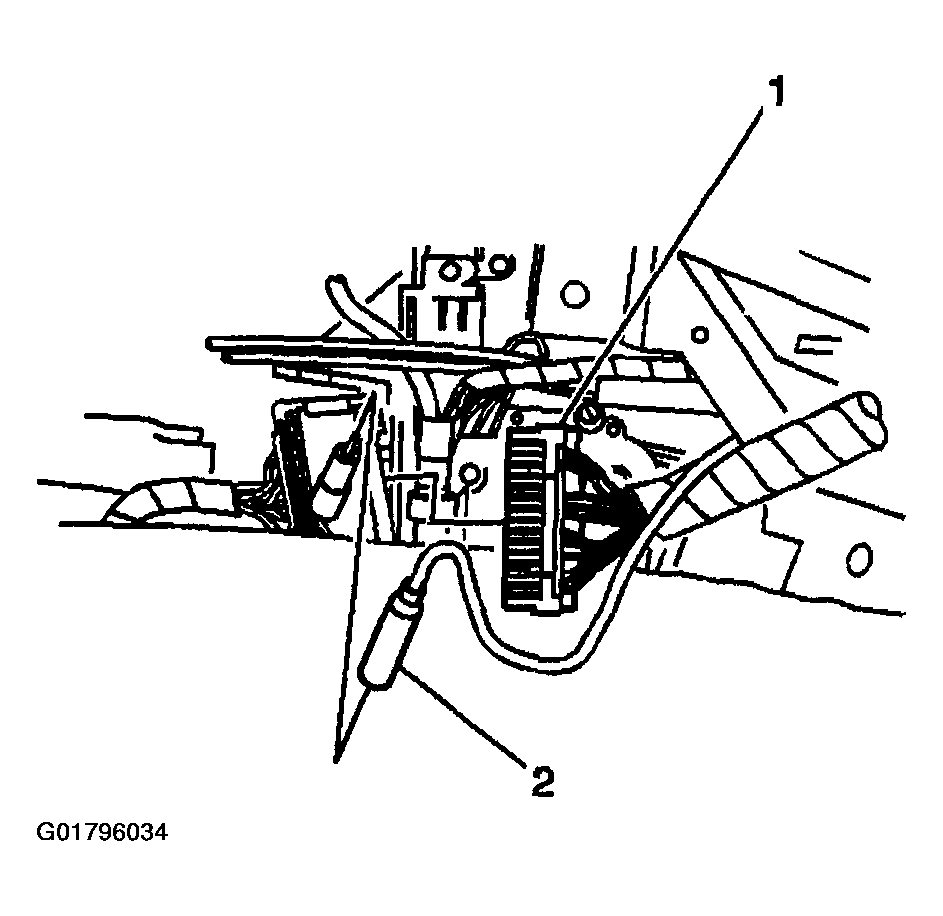

    8. Fig 1: Locating Radio Antenna Extension Cable
    G01796034Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the radio antenna extension cable (2) from antenna cable.
  9. Pull the front and rear carpet up on the left side of the vehicle in order to expose the vehicle wiring harness.

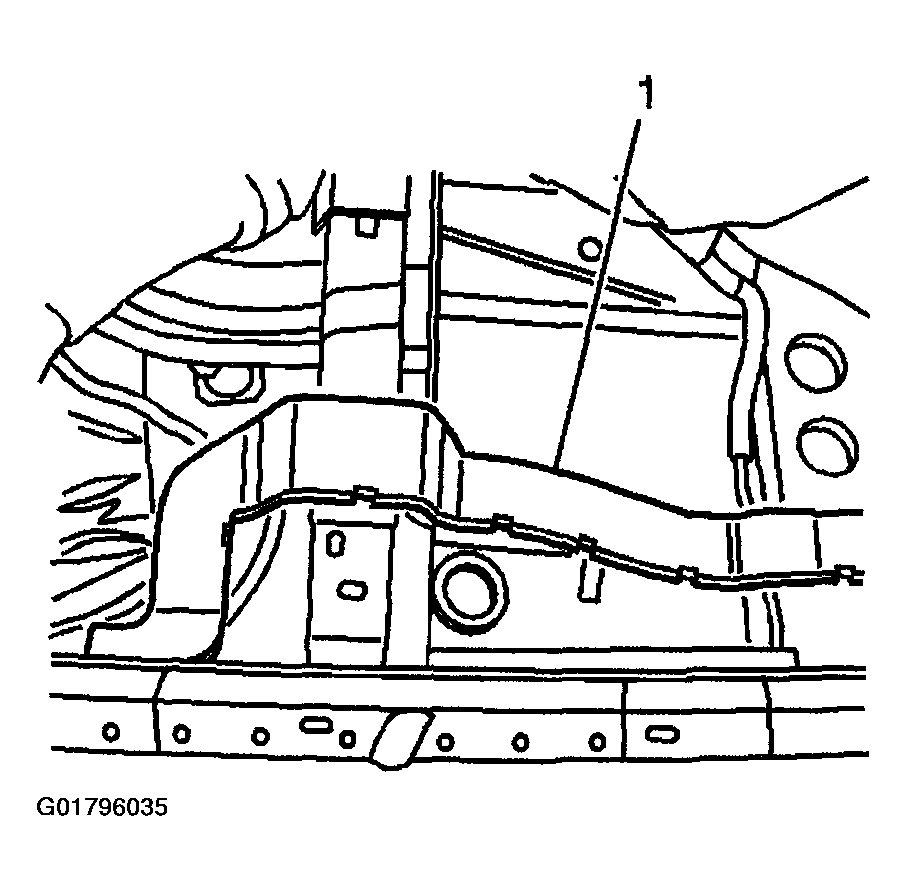

    10. Fig 2: Locating Vehicle Harness Conduit Cover
    G01796035Courtesy of GENERAL MOTORS CORP.
  10. Remove the vehicle harness conduit cover (1).

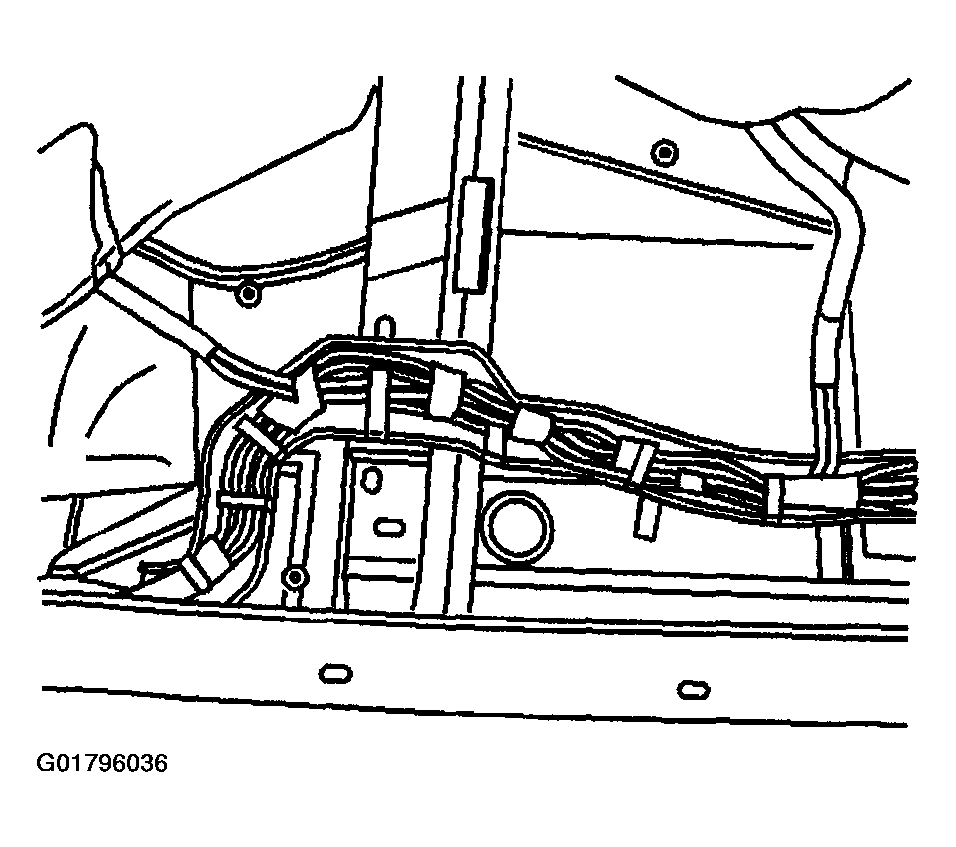

    11. Fig 3: View Of Antenna Coaxial Cable
    G01796036Courtesy of GENERAL MOTORS CORP.
  11. Remove the antenna coaxial cable from the vehicle harness, cut the cable off at the rear seat area of the harness, near the rear fuse block.

    Important:  Ensure that the radio antenna cable is the only wiring that is cut when cutting the radio antenna cable.

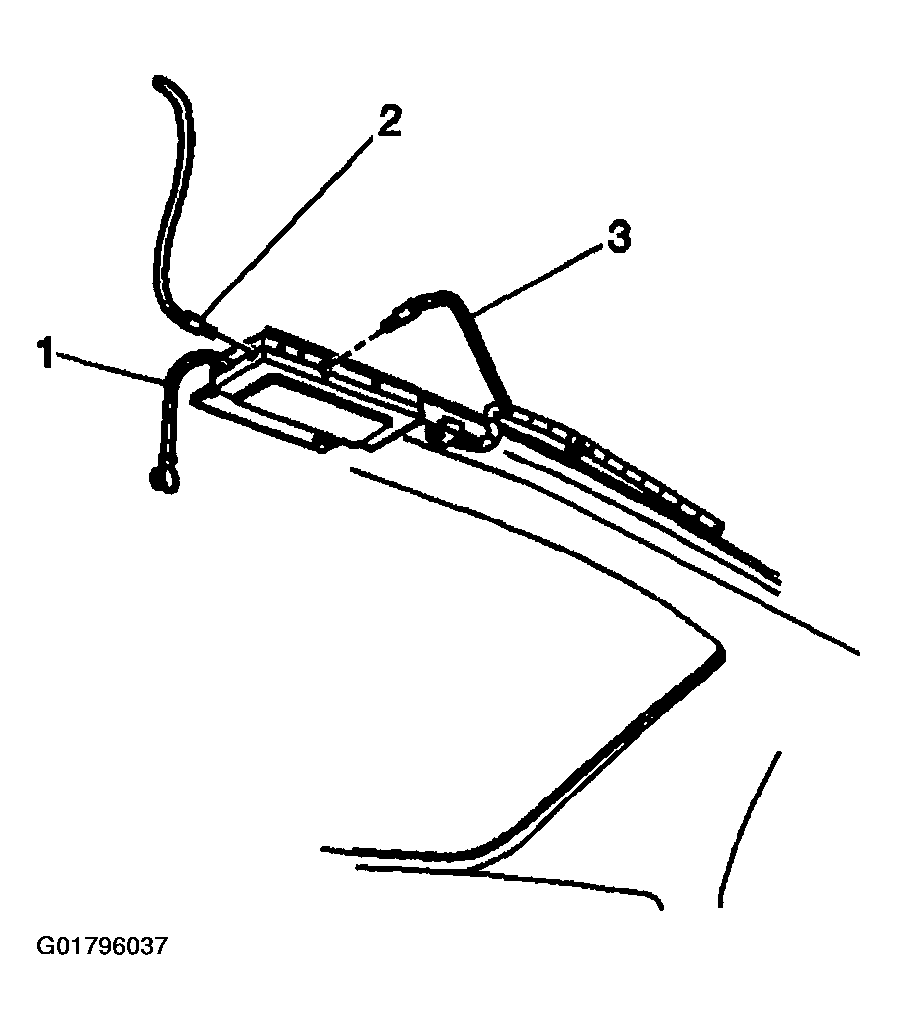

    12. Fig 4: Locating Antenna Cable Components
    G01796037Courtesy of GENERAL MOTORS CORP.
  12. Disconnect radio antenna coaxial cable (3) from the antenna module.
  13. Separate the antenna cable (3) from the wiring harness and cable clips, above the rear shelf panel.
  14. Cut the end of the radio antenna cable (3) off at the rear shelf area of the harness
