Water Pump Installation

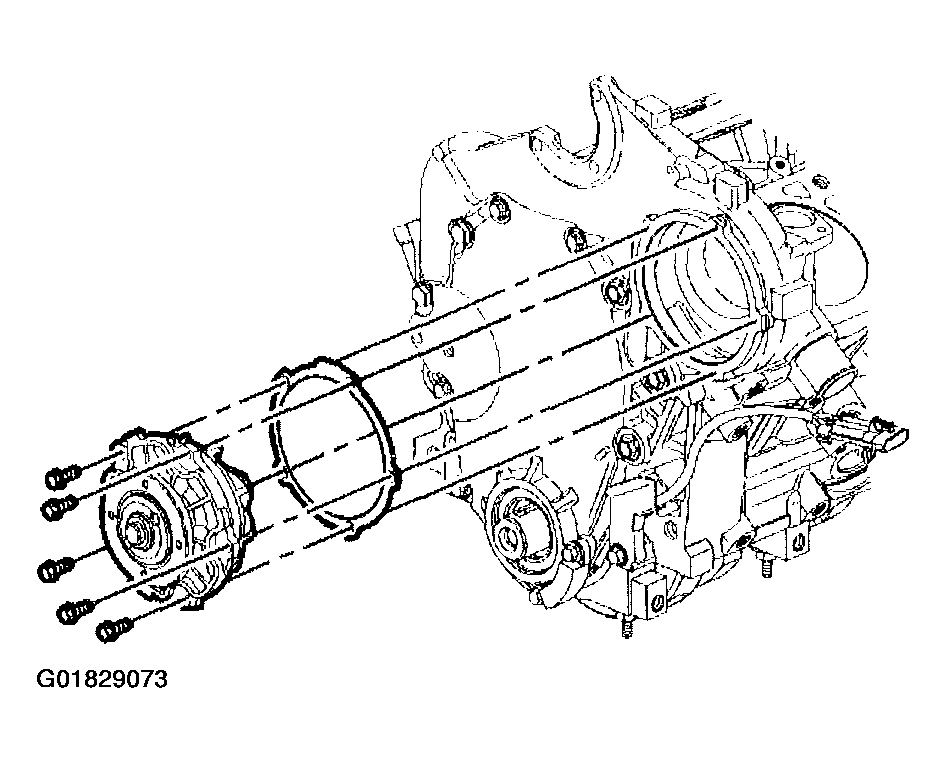

    Fig 1: Water Pump
    G01829073Courtesy of GENERAL MOTORS CORP.
  1. Install the water pump gasket.
  2. Install the water pump.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the water pump bolts.

    Tighten

    Tighten the water pump bolts to 11 N.m (98 lb in).

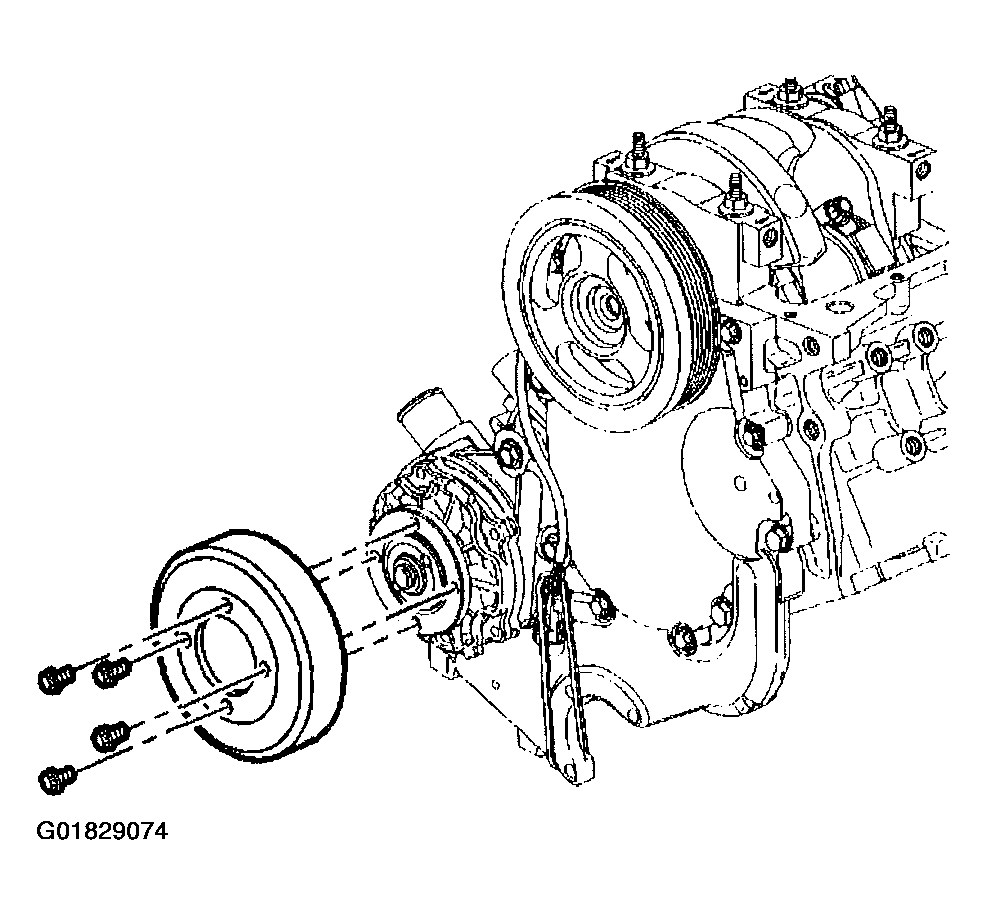

    4. Fig 2: Water Pump Pulley
    G01829074Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.

    Tighten

    Tighten the water pump pulley bolts to 25 N.m (18 lb ft).
