Valve Lifter Installation

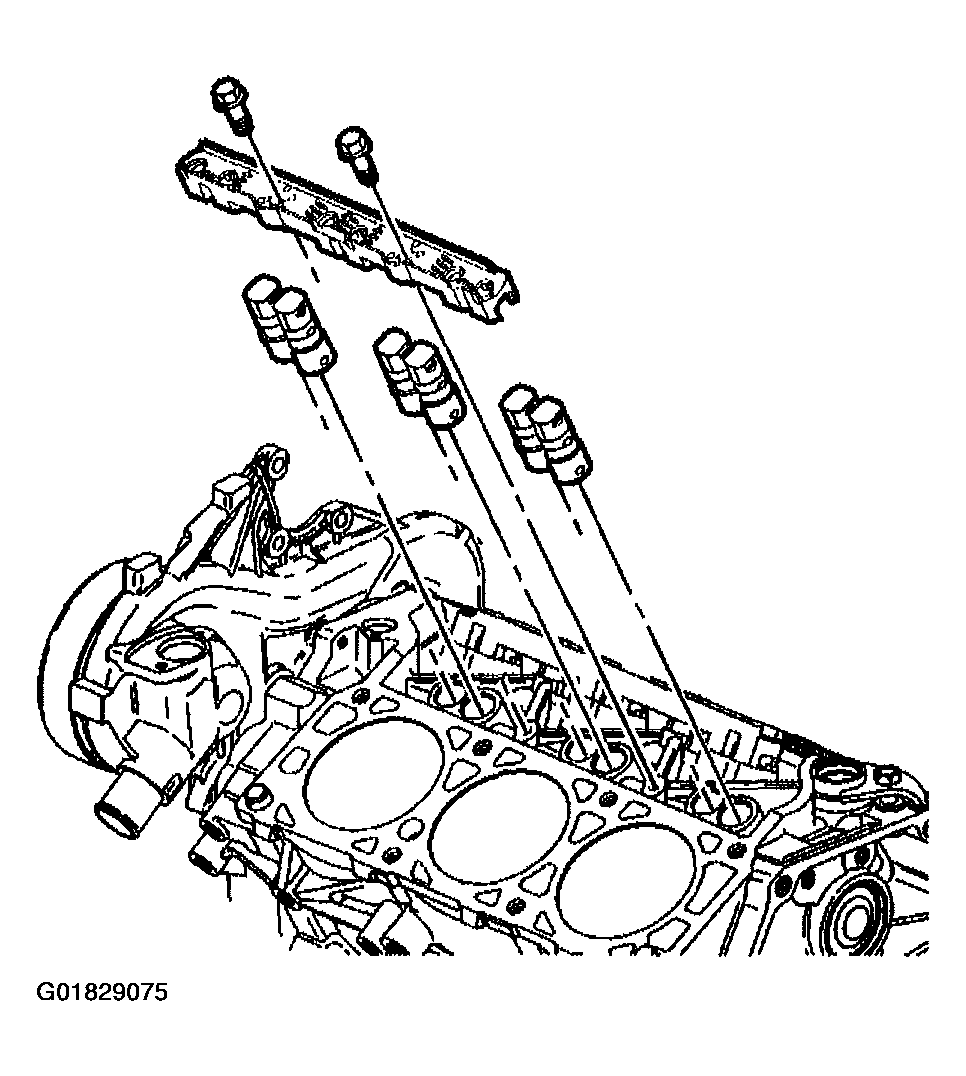

    Fig 1: Valve Lifter
    G01829075Courtesy of GENERAL MOTORS CORP.
  1. Coat the valve lifters using prelube GM P/N United States 1052367, GM P/N Canada 992869 or the equivalent.
  2. Install the valve lifters in their original locations.
  3. Apply threadlock GM P/N United States 12345382, GM P/N Canada 10953489 or the equivalent to the threads.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the valve lifter guides and guide bolts.

    Tighten

    Tighten the valve lifter guide bolts to 10 N.m (89 lb in).
