Oil Pump Drive Installation

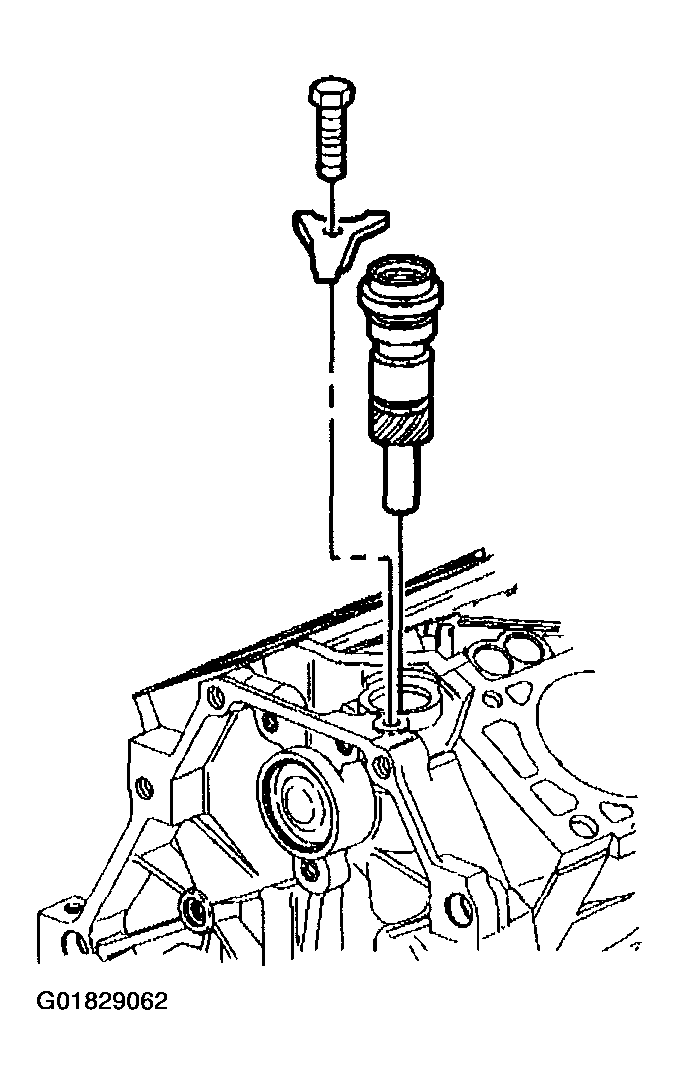

    Fig 1: Oil Pump Drive
    G01829062Courtesy of GENERAL MOTORS CORP.
  1. Apply prelube GM P/N United States 12345501, GM P/N Canada 992704 or the equivalent to the oil pump drive gear.
  2. Apply engine oil to the oil pump drive gear assembly for ease of assembly.
  3. Install the oil pump drive gear assembly.
  4. Install the oil pump drive gear clamp.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the oil pump drive gear clamp bolt.

    Tighten

    Tighten the oil pump drive gear clamp bolt to 36 N.m (27 lb ft).
