Oil Pan Installation

  1. Apply sealer GM P/N United States 12345739, GM P/N Canada 10953541 or the equivalent to both sides of the crankshaft rear main bearing cap (1). Press sealer into gap using a putty knife.
    Fig 1: Crankshaft Rear Main Bearing Cap
    G01829065Courtesy of GENERAL MOTORS CORP.
  2. Install the oil pan gasket.

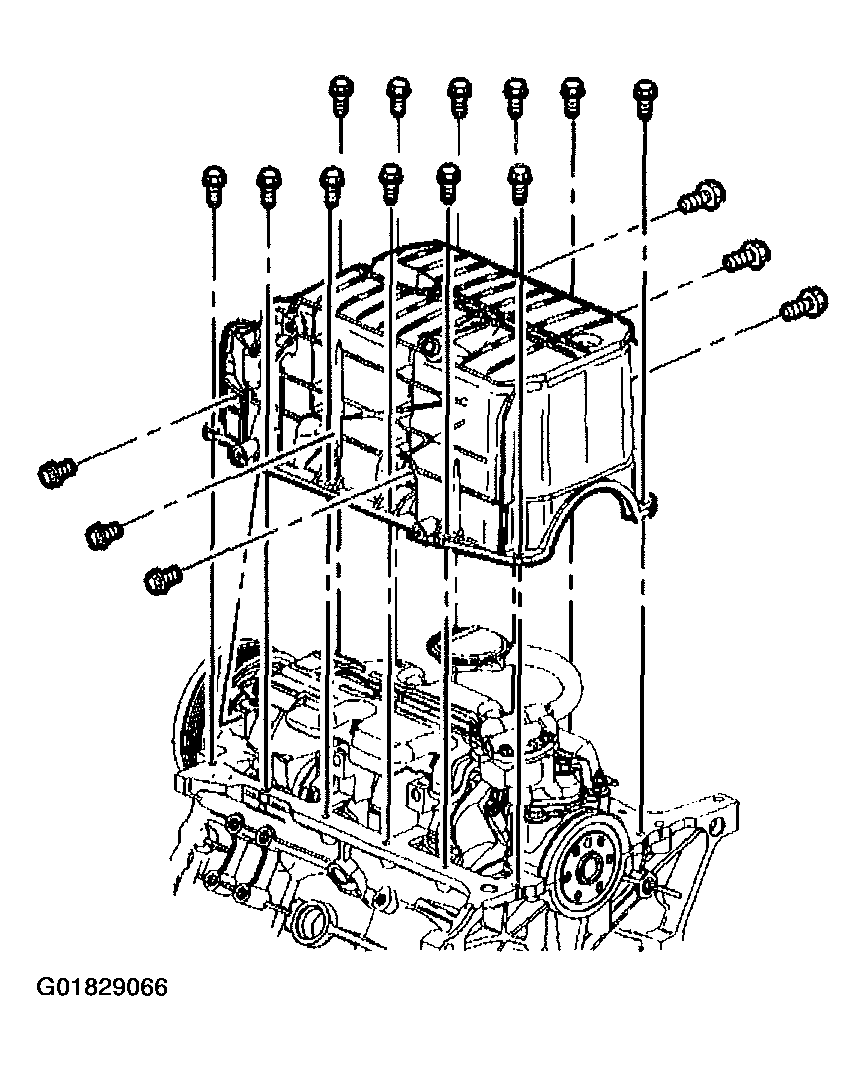

    3. Fig 2: Oil Pan
    G01829066Courtesy of GENERAL MOTORS CORP.
  3. Install the oil pan.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the oil pan bolts.

    Tighten

    Tighten the oil pan bolts to 25 N.m (18 lb ft).

  5. Install the oil pan side bolts.

    Tighten

    Tighten the oil pan side bolts to 50 N.m (37 lb ft).
