Oil Level Indicator and Tube Installation

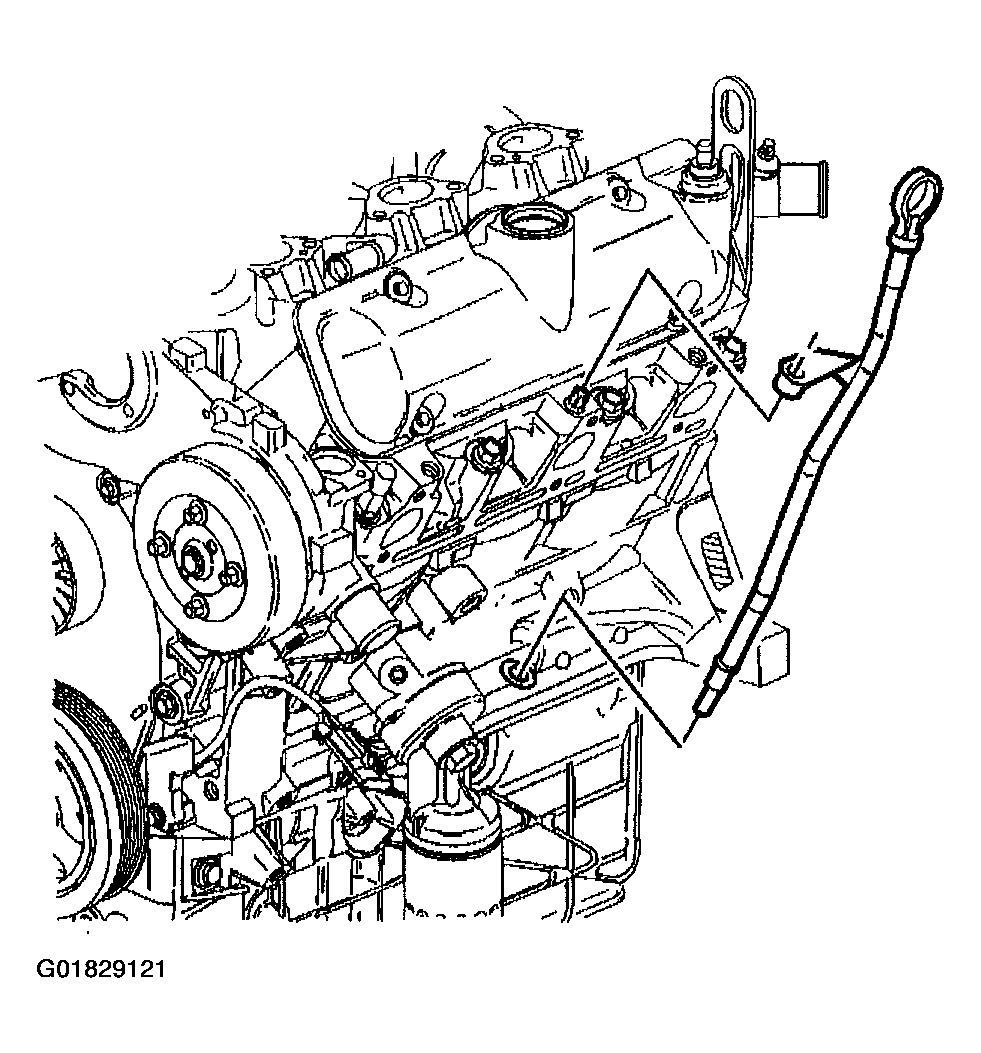

    Fig 1: Oil Level Indicator & Tube
    G01829121Courtesy of GENERAL MOTORS CORP.
  1. Install the oil level indicator and oil level indicator tube.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

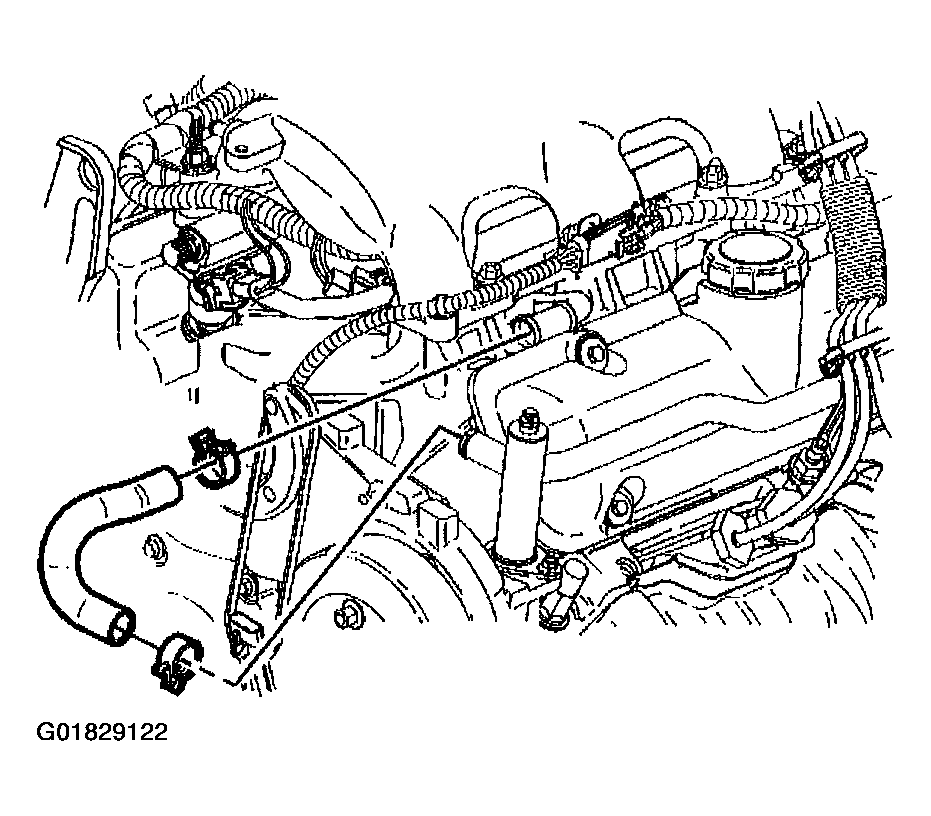

    3. Fig 2: Thermostat Bypass Pipe
    G01829122Courtesy of GENERAL MOTORS CORP.
  3. Install the thermostat bypass pipe.
  4. Install the thermostat bypass pipe hose.

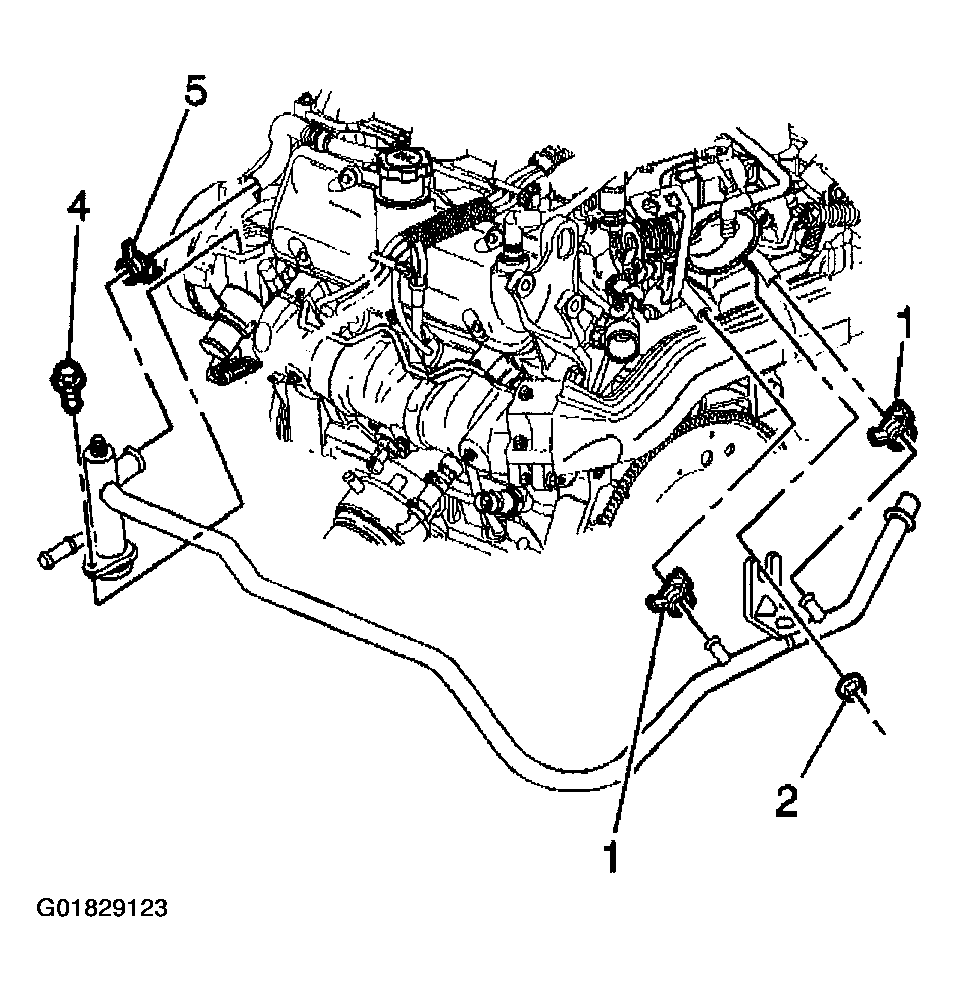

    5. Fig 3: Thermostat Bypass Pipe Components
    G01829123Courtesy of GENERAL MOTORS CORP.
  5. Install the thermostat bypass pipe hose clamps (5).
  6. Install the thermostat bypass pipe to engine front cover bolt (4).

    Tighten

    Tighten the thermostat bypass pipe to engine front cover bolt to 11 N.m (98 lb in).

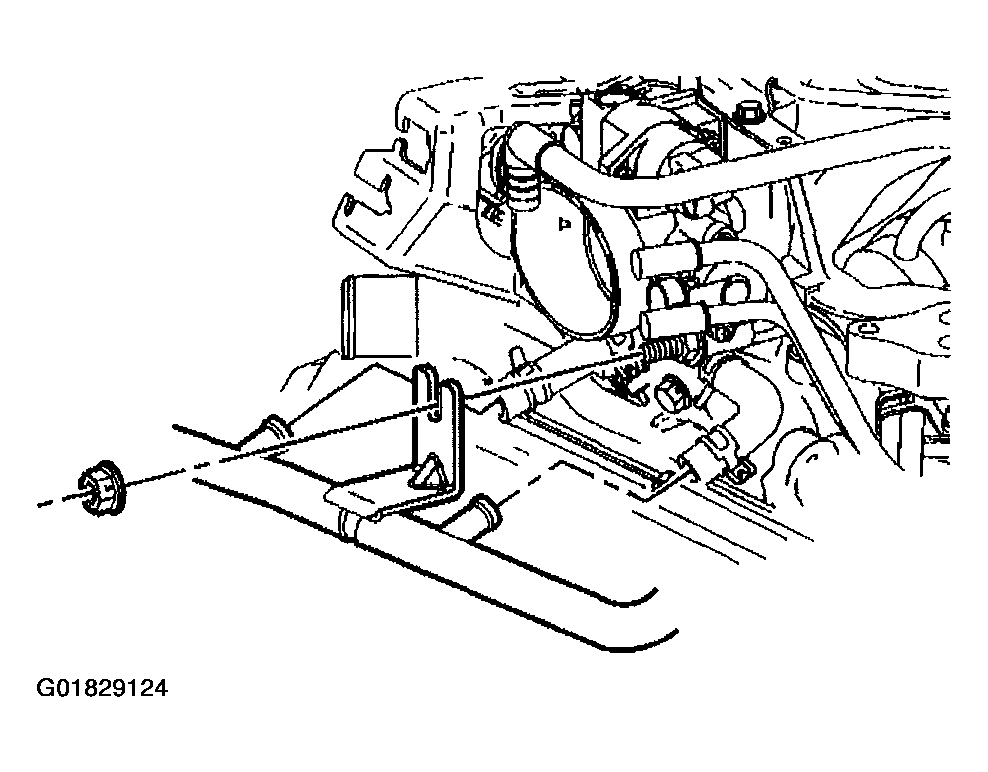

    7. Fig 4: Thermostat Bypass Pipe To Throttle Body Hose
    G01829124Courtesy of GENERAL MOTORS CORP.
  7. Install the thermostat bypass pipe to throttle body hose clamps.
  8. Install the thermostat bypass pipe to throttle body nut.

    Tighten

    Tighten the thermostat bypass pipe to throttle body nut to 25 N.m (18 lb ft).
