Oil Cooler Installation

NOTE: Refer to FASTENER NOTICE .

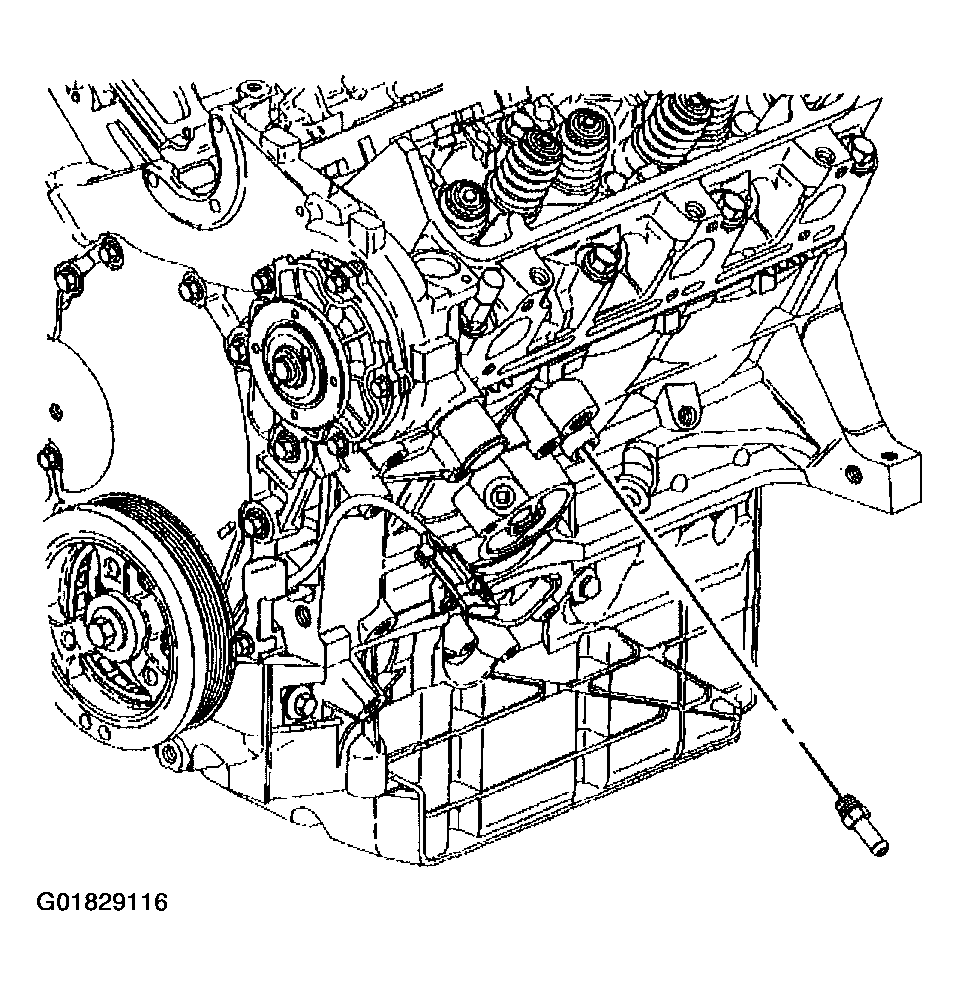

    Fig 1: Oil Cooler Hose Fitting
    G01829116Courtesy of GENERAL MOTORS CORP.
  1. Install the oil cooler hose fitting.

    Tighten

    Tighten the oil cooler hose fitting to 19 N.m (14 lb ft).

  2. Install the oil cooler inlet hose clamp and the oil cooler inlet hose onto the oil cooler hose fitting.

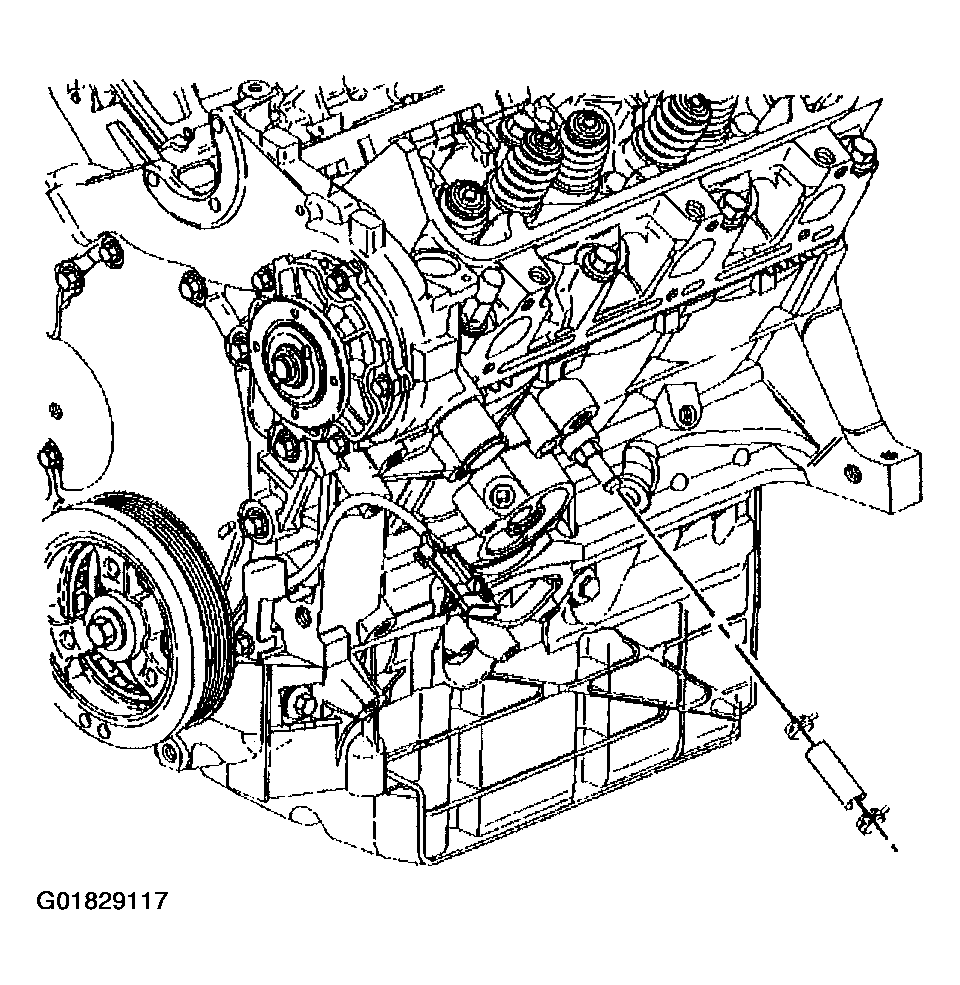

    Fig 2: Oil Cooler Inlet Hose
    G01829117Courtesy of GENERAL MOTORS CORP.
  3. Install the oil cooler inlet hose clamp and oil cooler.

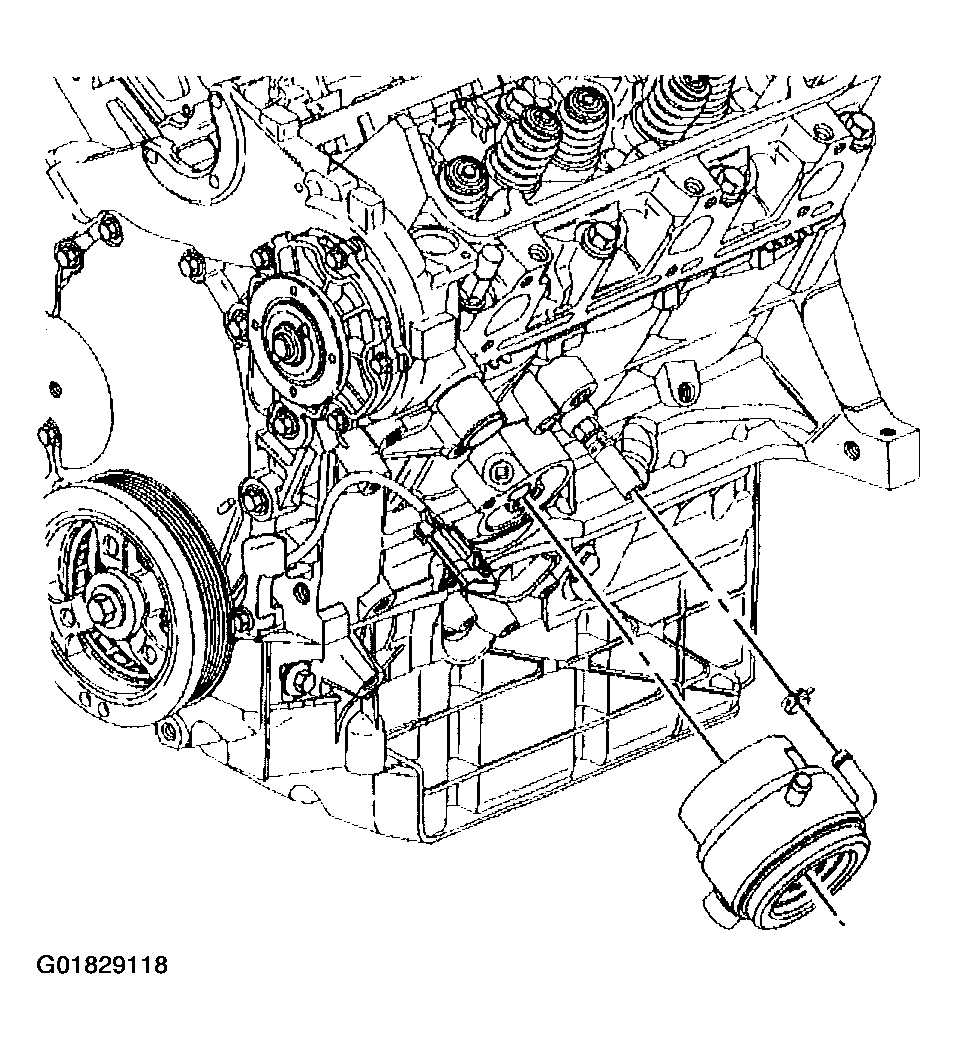

    Fig 3: Oil Cooler
    G01829118Courtesy of GENERAL MOTORS CORP.
  4. Install the oil cooler connector.

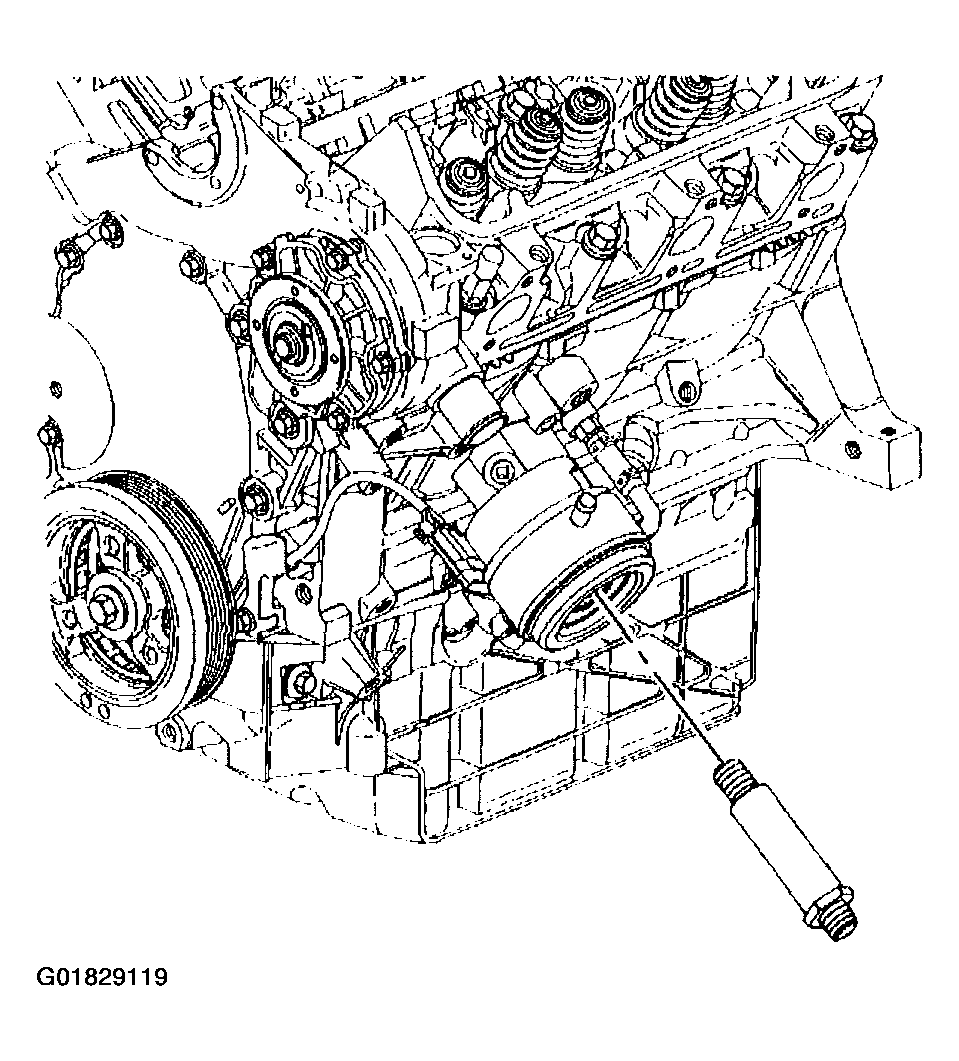

    Fig 4: Oil Cooler Connector
    G01829119Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the oil cooler connector to 50 N.m (37 lb ft).

  5. Install the oil cooler outlet hoses and pipe.

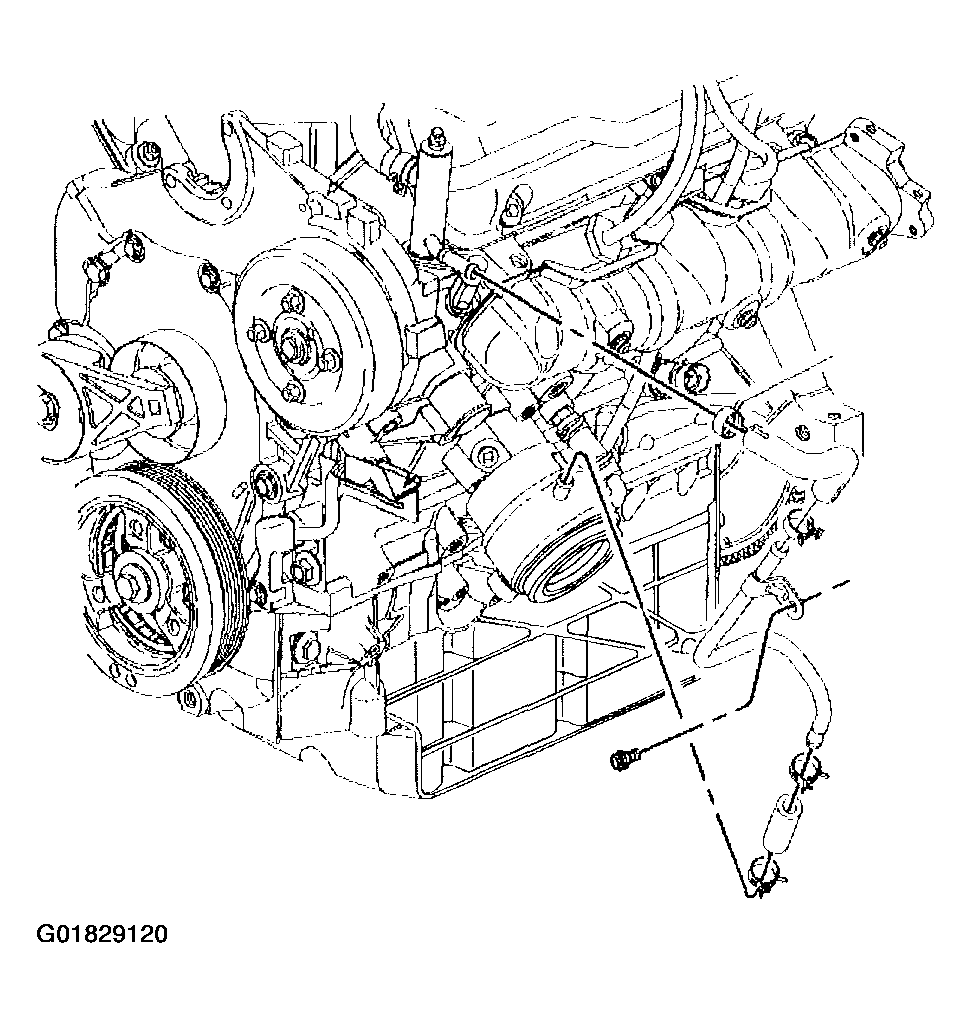

    Fig 5: Oil Cooler Outlet Hoses & Pipe
    G01829120Courtesy of GENERAL MOTORS CORP.
  6. Connect the lower oil cooler outlet hose to the oil cooler.
  7. Connect the upper oil cooler hose to the thermostat bypass pipe.
