Engine Flywheel Removal

  1. Remove the flywheel bolts.
  2. Remove the flywheel retainer.
  3. Remove the flywheel.

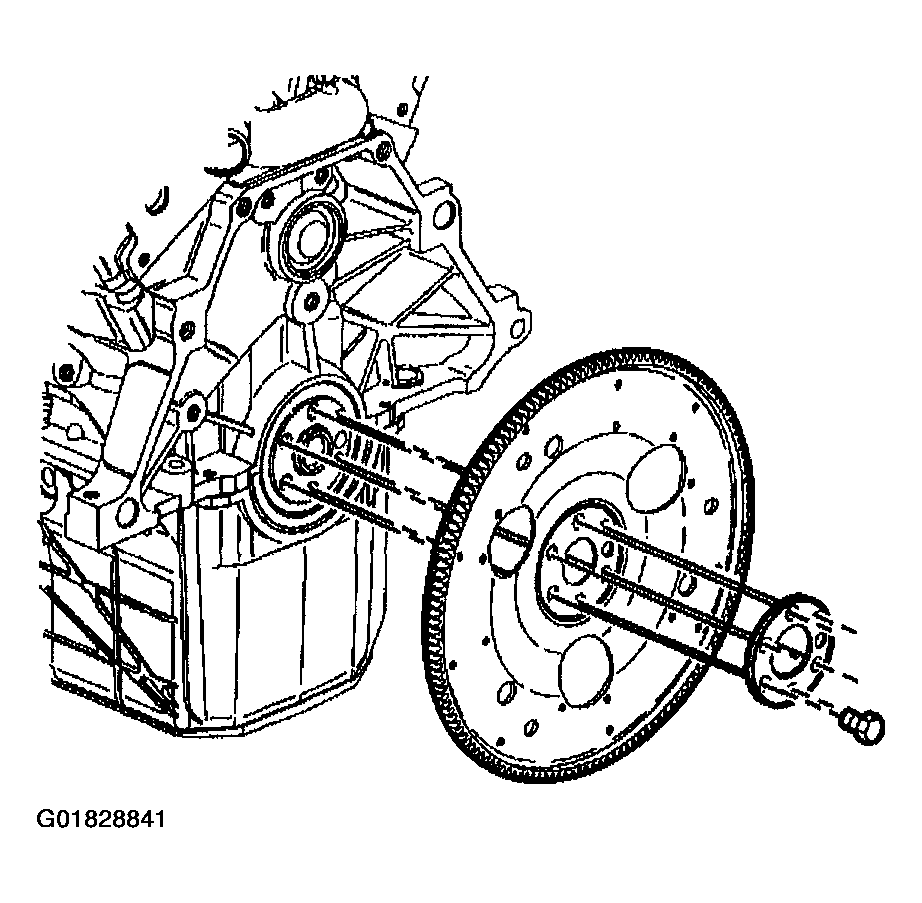

    Fig 1: Engine Flywheel
    G01828841Courtesy of GENERAL MOTORS CORP.
