Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Drain the oil from the oil pan.
  3. Disconnect the electrical connector from the oil level sensor.

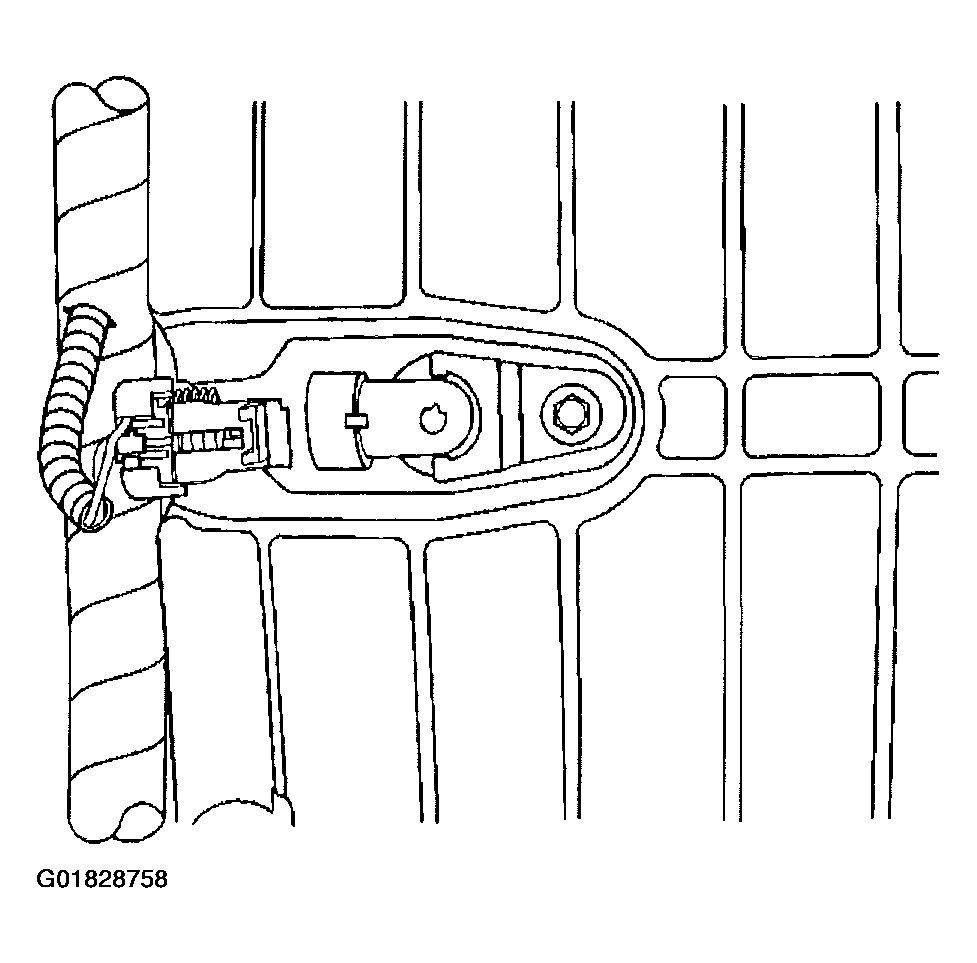

    Fig 1: Oil Level Sensor Wiring Harness Connection
    G01828758Courtesy of GENERAL MOTORS CORP.
  4. Remove the retainer bolt from the oil pan.
  5. Remove the oil level sensor from the oil pan.

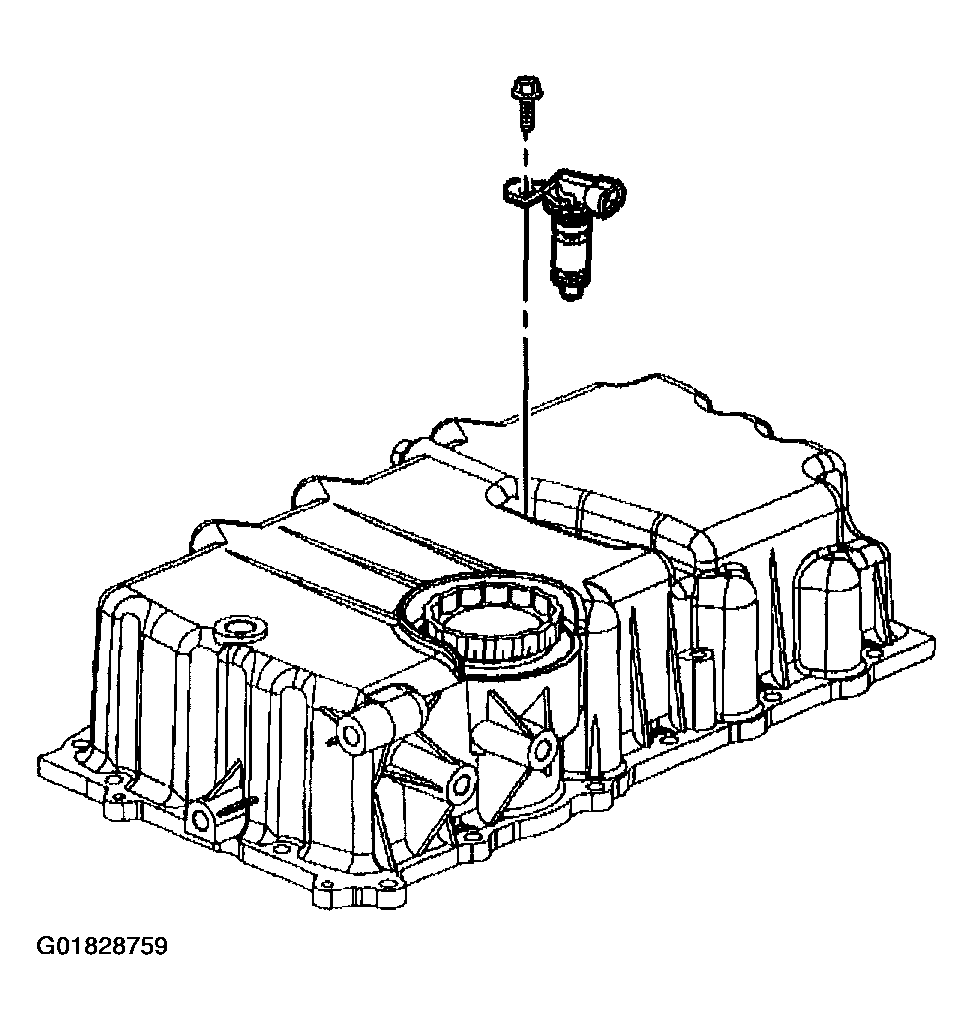

    Fig 2: Oil Level Sensor
    G01828759Courtesy of GENERAL MOTORS CORP.
