Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the oil level sensor to the oil pan with the retainer bolt.

    Tighten

    Tighten the bolt to 10 N.m (7 lb ft).

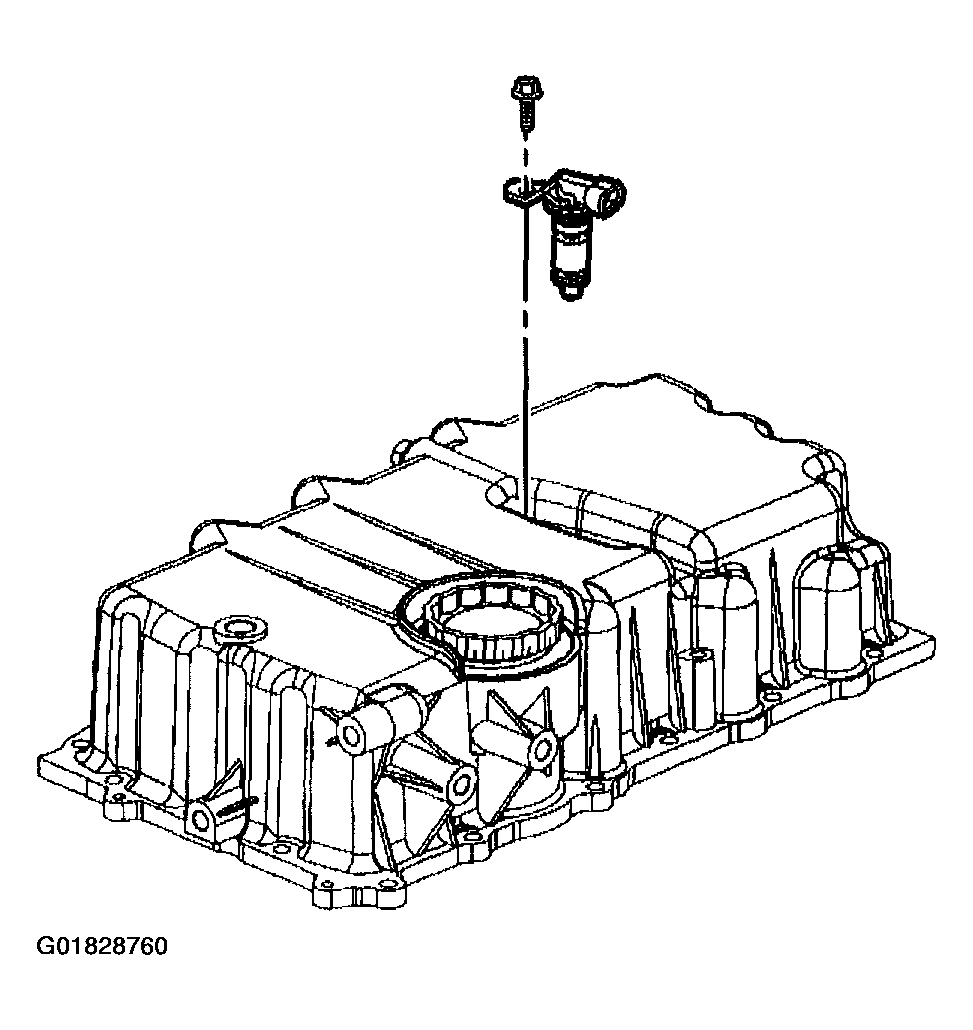

    Fig 1: Oil Level Sensor
    G01828760Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the oil level sensor.

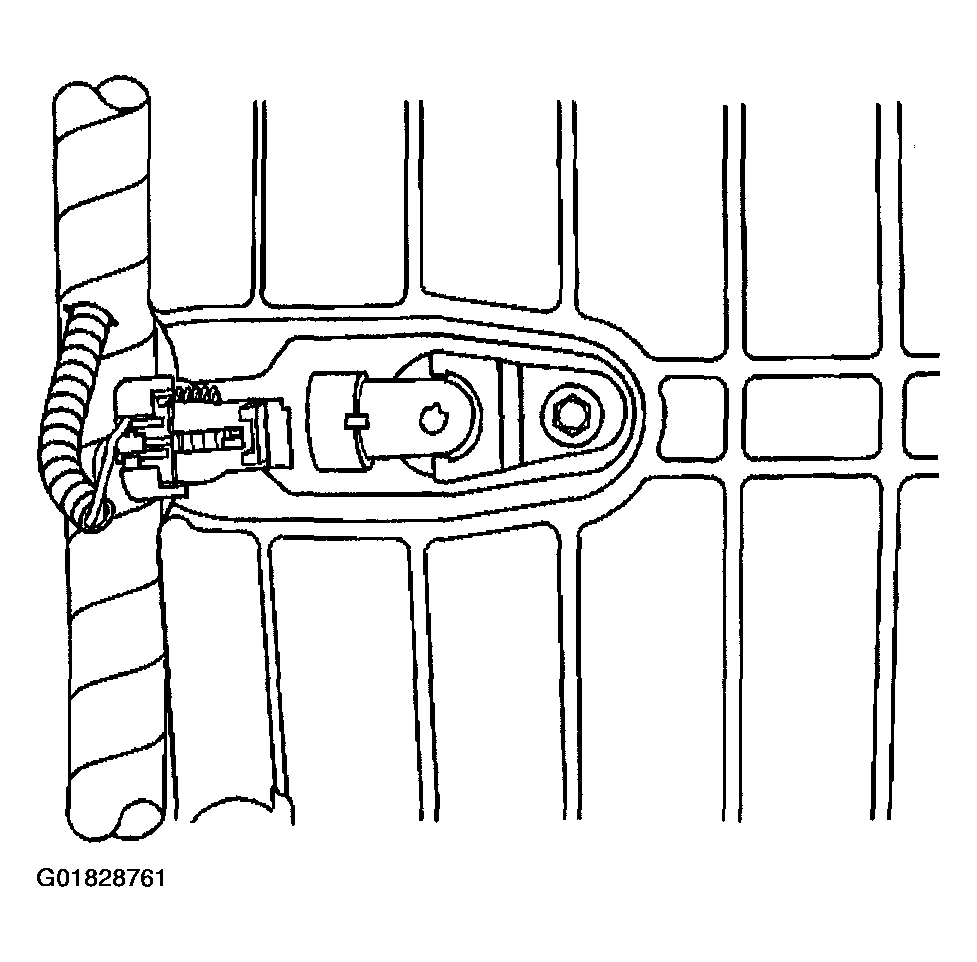

    3. Fig 2: Oil Level Sensor Wiring Harness Connection
    G01828761Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle.
  4. Ensure that the engine oil is filled to the proper level.
