Installation Procedure

  1. Install the engine mount strut.
    NOTE: Refer to FASTENER NOTICE .

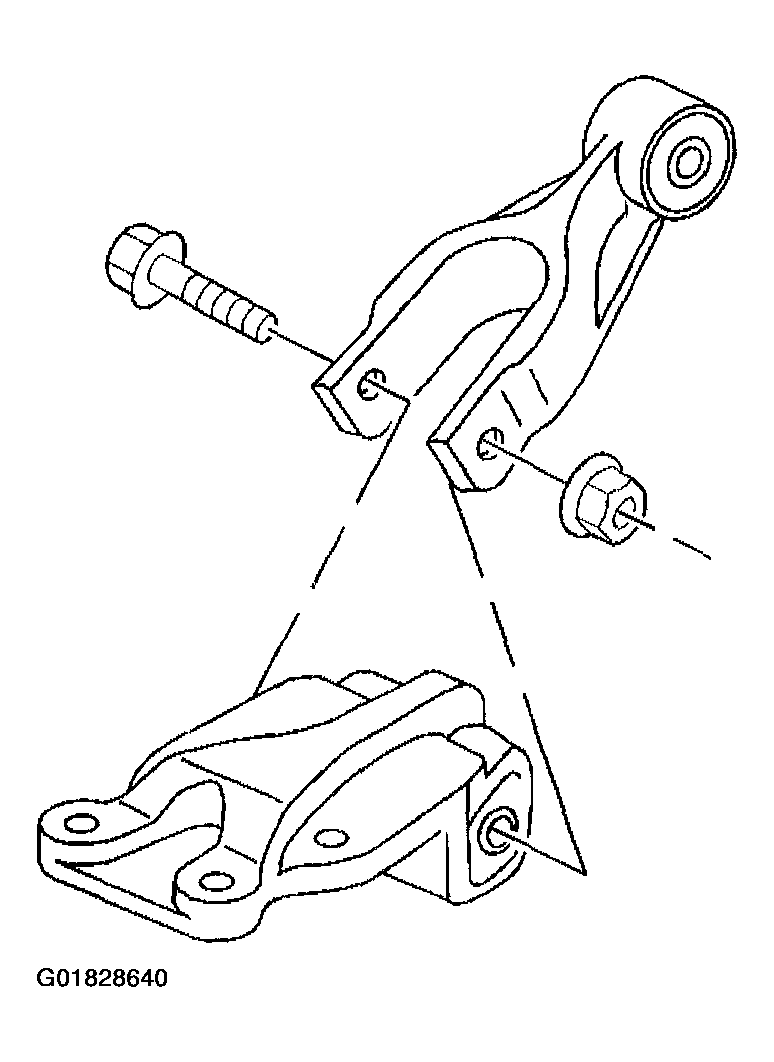

    2. Fig 1: Engine Mount Strut At Engine Mount Strut Bracket On Upper Radiator Support
    G01828640Courtesy of GENERAL MOTORS CORP.
  2. Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support.

    Tighten

    Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

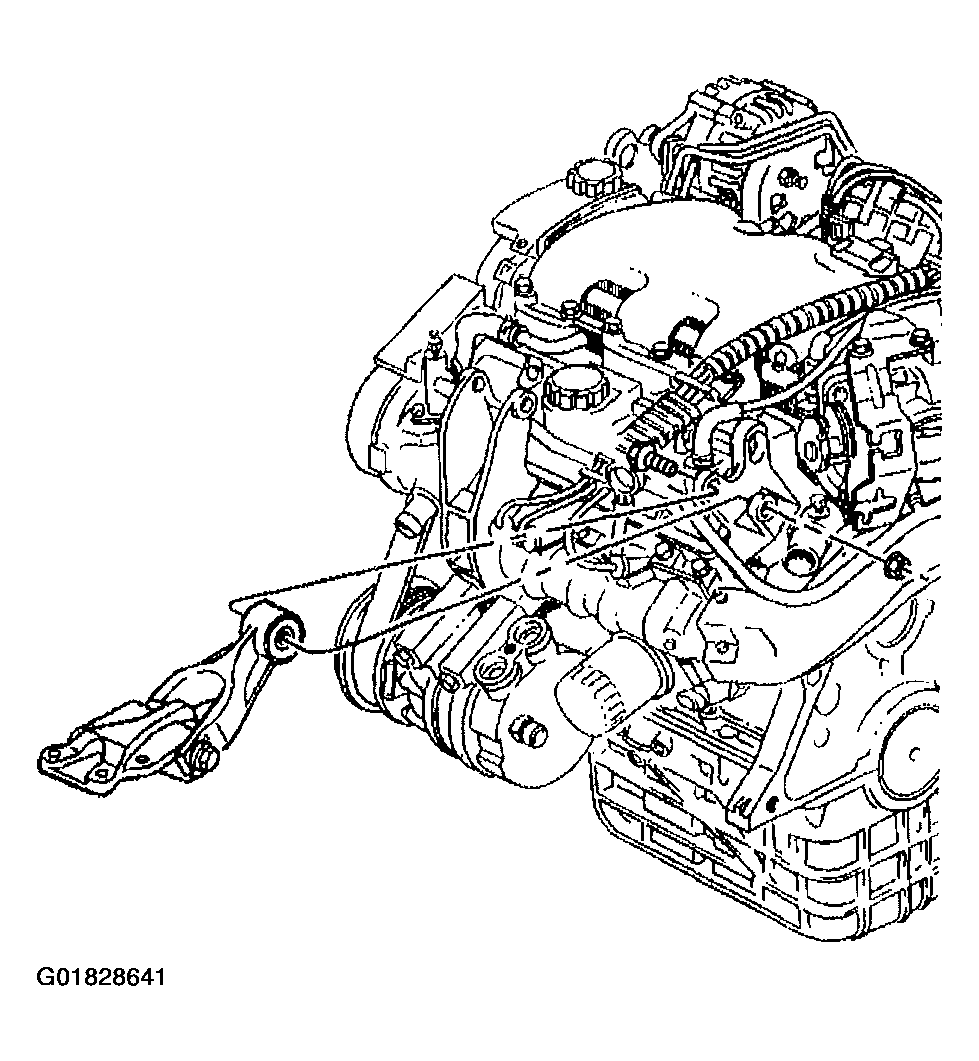

    3. Fig 2: Left Engine Mount Strut Bracket On Engine
    G01828641Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt and the nut to the engine mount strut at the left engine mount strut bracket on the engine.

    Tighten

    Tighten the engine mount strut nut to 48 N.m (35 lb ft).
